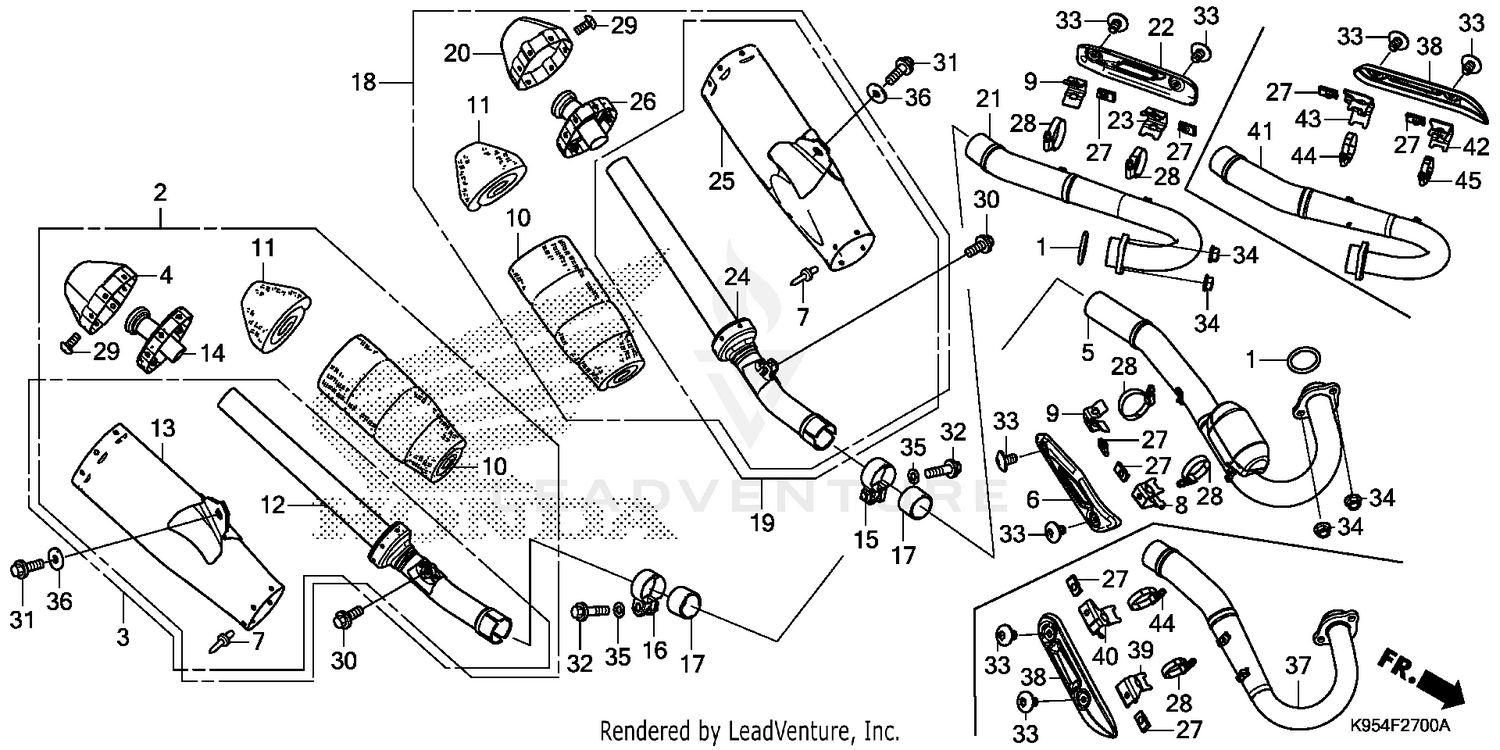

| Ref | Part Number | Description |
|---|
| 1 |
18291-KSV-J01 |
GASKET, EX. PIPE Price: $7.35 |
| 2 |
18300-K95-A60 |
MUFFLER ASSY., R. Price: $839.18 |
| 3 |
18310-K95-A60 |
MUFFLER, R. Price: $464.29 |
| 4 |
18318-MKE-A00 |
COVER, R. END Price: $156.27 |
| 7 |
18326-KRN-A00 |
RIVET, BLIND (3.2) Price: $1.42 |
| 10 |
18334-K95-A20 |
PACK, GLASS WOOL CENTER Price: $149.16 |
| 11 |
18337-KRN-850 |
WOOL B, GLASS Price: $19.05 |
| 12 |
18360-K95-A60 |
MUFFLER, R. FR. Price: $130.05 |
| 13 |
18361-K95-A60 |
BODY, R. MUFFLER Price: $390.75 |
| 14 |
18362-K95-A20 |
SEPARATOR (R) Price: $41.42 |
| 15 |
18374-KE8-000 |
BAND, L. MUFFLER This part replaces 18373-MG7-701. Price: $35.45 |
| 16 |
18373-KE8-000 |
BAND, R. MUFFLER Price: $34.71 |
| 17 |
18392-MK4-000 |
GASKET, MUFFLER Price: $16.55 |
| 18 |
18400-K95-A60 |
MUFFLER ASSY., L. Price: $839.18 |
| 19 |
18410-K95-A60 |
MUFFLER, L. Price: $464.29 |
| 20 |
18418-MKE-A00 |
COVER, L. END Price: $156.27 |
| 24 |
18460-K95-A60 |
MUFFLER, L. FR. Price: $130.05 |
| 25 |
18461-K95-A60 |
BODY, L. MUFFLER Price: $373.93 |
| 26 |
18462-K95-A20 |
SEPARATOR (L) Price: $41.42 |
| 27 |
19508-KA3-710 |
NUT, SPRING (6MM) Price: $7.20 |
| 28 |
19516-K95-A40 |
CLAMP, HOSE Price: $12.45 |
| 29 |
90101-MKE-A00 |
BOLT, SPECIAL (5X12) Price: $2.24 |
| 30 |
90109-MEN-A30 |
BOLT (8X20) Price: $3.47 |
| 31 |
90109-MKE-A00 |
BOLT, FLANGE (8X25) (SH) Price: $3.49 |
| 32 |
90124-KZ4-J40 |
BOLT, FLANGE (8X35) Price: $2.58 |
| 33 |
90170-MEB-670 |
BOLT, SPECIAL (6MM) Price: $2.05 |
| 34 |
94050-08000 |
NUT, FLANGE (8MM) NUT, FLANGE (10MM) Price: $0.98 |
| 35 |
94102-08800 |
WASHER, PLAIN (8MM) Price: $0.98 |
| 36 |
94103-08000 |
WASHER, PLAIN (8MM) Price: $0.75 |
| 37 |
18320-K95-A60 |
PIPE, R. EX. Price: $352.13 |
| 38 |
18323-K95-A60 |
PROTECTOR, EX. PIPE Price: $43.96 |
| 39 |
18327-K95-A60 |
STAY, FR. EX. PIPE PROTECTOR (R) Price: $8.00 |
| 40 |
18328-K95-A60 |
STAY, RR. EX. PIPE PROTECTOR (R) Price: $8.51 |
| 41 |
18420-K95-A60 |
PIPE, L. EX. Price: $276.34 |
| 42 |
18427-K95-A60 |
STAY, FR. EX. PIPE PROTECTOR (L) Price: $8.93 |
| 43 |
18428-K95-A60 |
STAY, RR. EX. PIPE PROTECTOR (L) Price: $9.98 |
| 44 |
19509-MM5-003 |
CLAMP, R. RADIATOR HOSE Price: $16.45 |
