| Ref | Part Number | Description |
|---|
| 1 |
1TP-27200-00-00 |
PEDAL, BRAKE Price: $97.99 |
| 2 |
5VN-18113-00-00 |
COVER, SHIFT PEDAL Price: $16.49 |
| 3 |
1TP-27243-00-00 |
BOSS, BRAKE PEDAL Price: $65.99 |
| 4 |
95027-08035-00 |
BOLT, FLANGE Price: $9.49 |
| 5 |
1TP-27216-00-00 |
SPRING, RETURN Price: $9.49 |
| 6 |
1TP-27262-00-00 |
LEVER Price: $53.99 |
| 7 |
97017-06020-00 |
BOLT This part replaces 97002-06020-00. Price: $4.06 |
| 8 |
90240-08124-00 |
PIN, CLEVIS Price: $8.49 |
| 9 |
90201-08083-00 |
WASHER, PLATE Price: $10.49 |
| 10 |
91490-20015-00 |
PIN. COTTER This part replaces 91401-20012-00. Price: $2.20 |
| 11 |
1TP-2583V-00-00 |

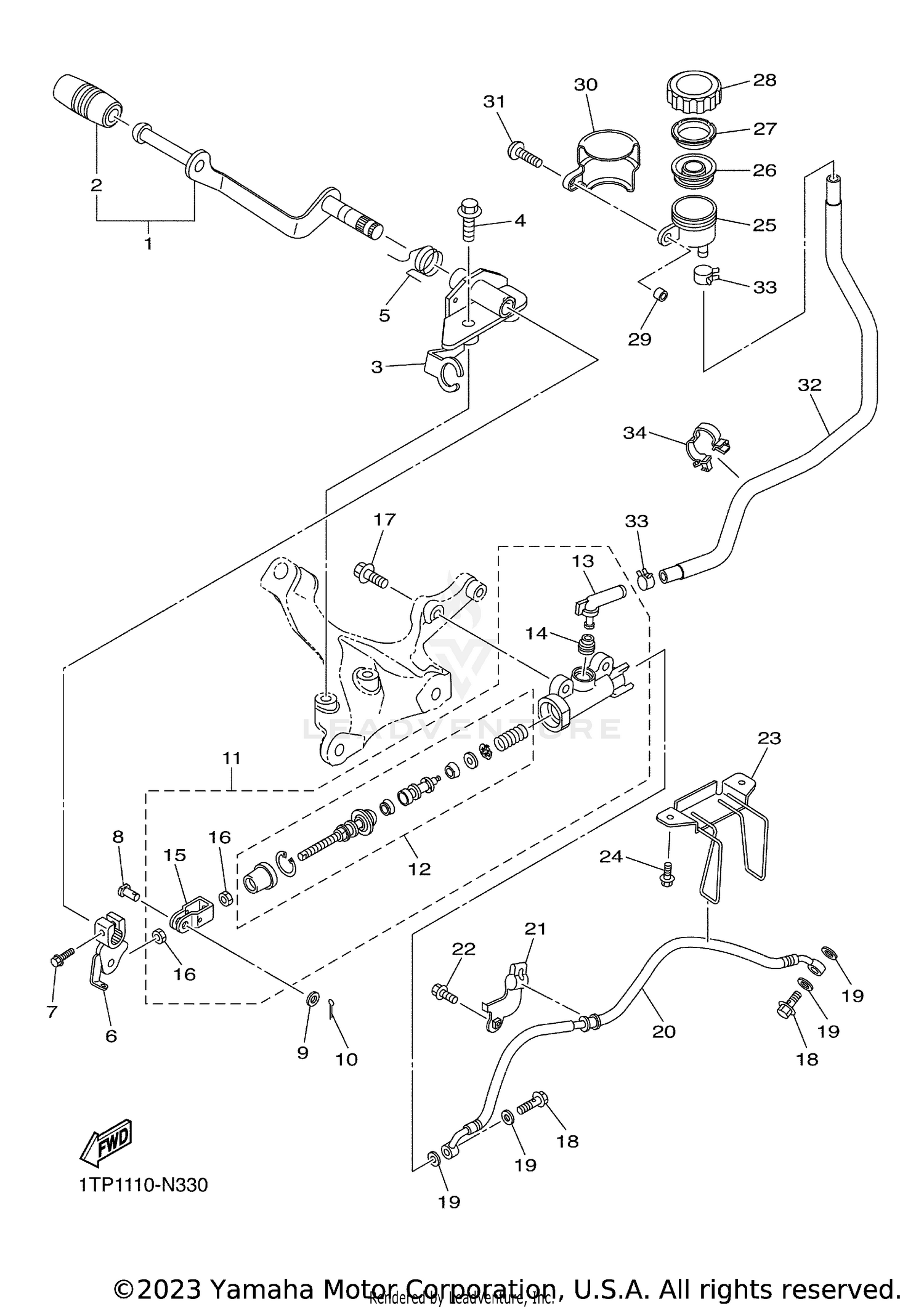

REAR MASTER CYLINDER ASSY. Price: $166.99 |
| 12 |
1TP-25808-00-00 |
CYLINDER KIT, MASTER Price: $63.99 |
| 13 |
4BP-2582A-00-00 |
JOINT Price: $18.99 |
| 14 |
4BP-2585F-01-00 |
O-RING Price: $11.99 |
| 15 |
4BP-27222-02-00 |
JOINT Price: $32.99 |
| 16 |
90170-08010-00 |
NUT Price: $9.49 |
| 17 |
95027-08030-00 |
BOLT, FLANGE Price: $4.05 |
| 18 |
90401-10020-00 |
BOLT, UNION Price: $10.49 |
| 19 |
90430-10005-00 |
GASKET Price: $9.49 |
| 20 |
1TP-2581J-01-00 |
HOSE, BRAKE 4 Price: $75.99 |
| 21 |
1TP-2588F-00-00 |
HOLDER, BRAKE HOSE 5 Price: $12.49 |
| 22 |
95022-06016-00 |
BOLT, FLANGE Price: $3.90 |
| 23 |
1TP-2587A-00-00 |
HOLDER, BRAKE HOSE Price: $29.99 |
| 24 |
95022-06016-00 |
BOLT, FLANGE Price: $3.90 |
| 25 |
31A-25894-10-00 |
TANK, RESERVOIR Price: $51.99 |
| 26 |
360-25854-01-00 |
DIAPHRAGM, RESERVOIR Price: $25.99 |
| 27 |
2GU-25855-00-00 |
BUSH, DIAPHRAGM Price: $33.99 |
| 28 |
2KF-25852-50-00 |
CAP, RESERVOIR Price: $51.99 |
| 29 |
90387-06072-00 |
COLLAR Price: $8.49 |
| 30 |
4NK-25888-00-00 |
COVER, RESERVOIR TANK Price: $90.99 |
| 31 |
92014-06020-00 |
BOLT, BUTTON HEAD This part replaces 90111-06028-00. Price: $10.49 |
| 32 |
1TP-25895-00-00 |
HOSE, RESERVOIR Price: $48.99 |
| 33 |
90467-14057-00 |
CLIP Price: $9.49 |
