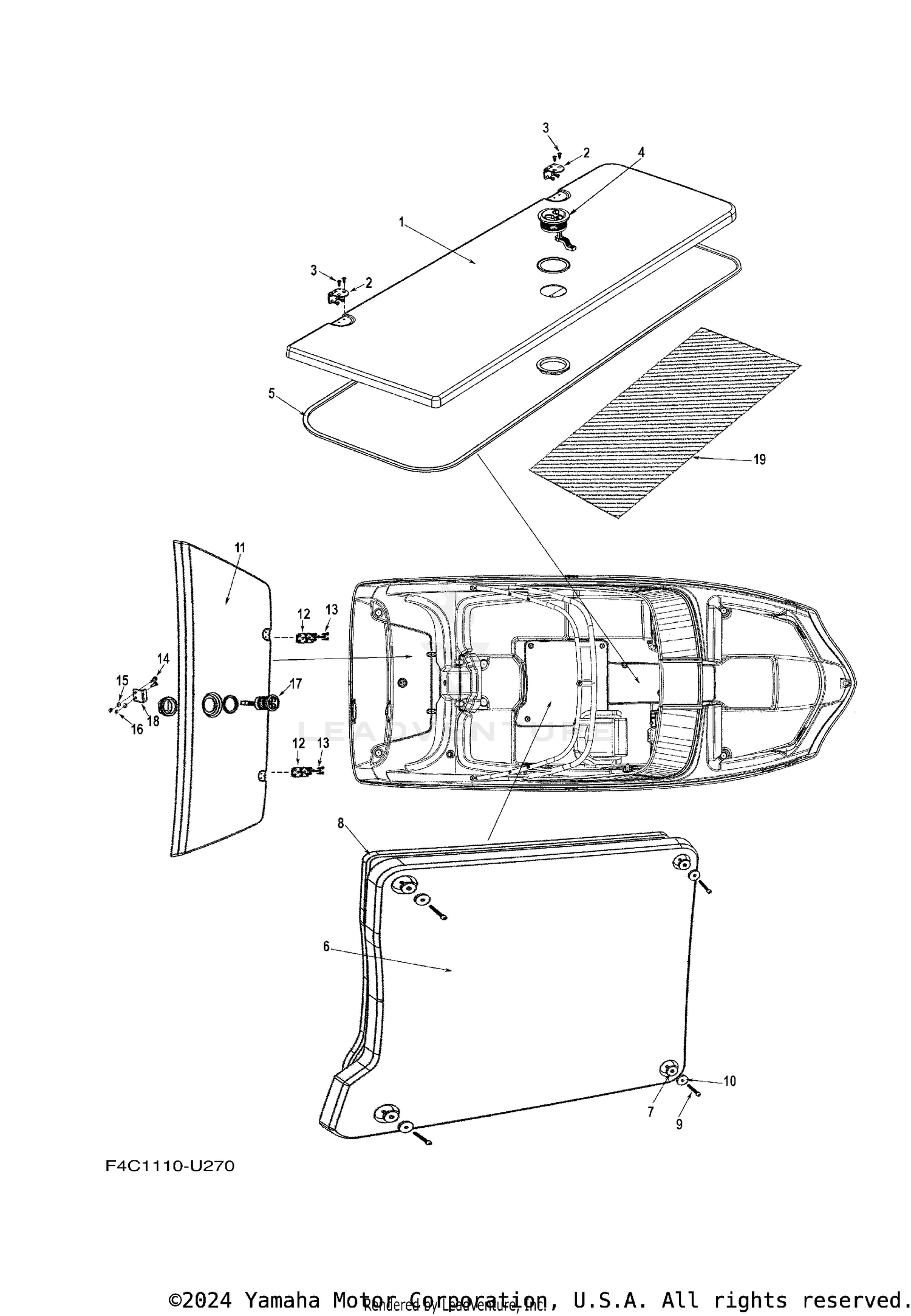

DECK HATCH 1
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | F4C-U5111-00-00 | HATCH, FLOOR Price: $655.99 |
| 2 | F4A-U2826-00-00 | HINGE 5 Price: $91.99 |
| 3 | 90162-10S10-00 | SCREW, TAPPING Price: $5.99 |
| 4 | F3H-U5540-00-00 | LOCK ASSY. Price: $42.99 |
| 5 | F4C-U3262-30-00 | SEAL Price: $27.99 |
| 6 | F4C-U5106-00-00 | HATCH COMP. Price: $663.99 |
| 7 | GP1-U5194-01-00 | WASHER, SPECIAL Price: $17.99 |
| 8 | F4C-U3262-40-00 | SEAL Price: $56.99 |
| 9 | 90111-08832-00 | BOLT,HEX. SOCKET BUTTON Price: $6.99 |
| 10 | 90209-15SA3-00 | WASHER Price: $4.10 |
| 11 | F4C-U518A-00-00 | STERN HATCH ASSY Price: $643.99 |
| 12 | F4A-U2826-10-00 | HINGE 5 Price: $92.99 |
| 13 | 90162-10S10-00 | SCREW, TAPPING Price: $5.99 |
| 14 | 90157-10S12-00 | SCREW, PAN HEAD Price: $4.99 |
| 15 | 90201-10S00-00 | WASHER, PLATE Price: $4.99 |
| 16 | 90185-10S00-00 | NUT, SELF-LOCKING Price: $4.99 |
| 17 | F3H-U5540-10-00 | LOCK ASSY. Price: $42.99 |
| 18 | GP1-U4848-01-00 | CATCH Price: $17.99 |
