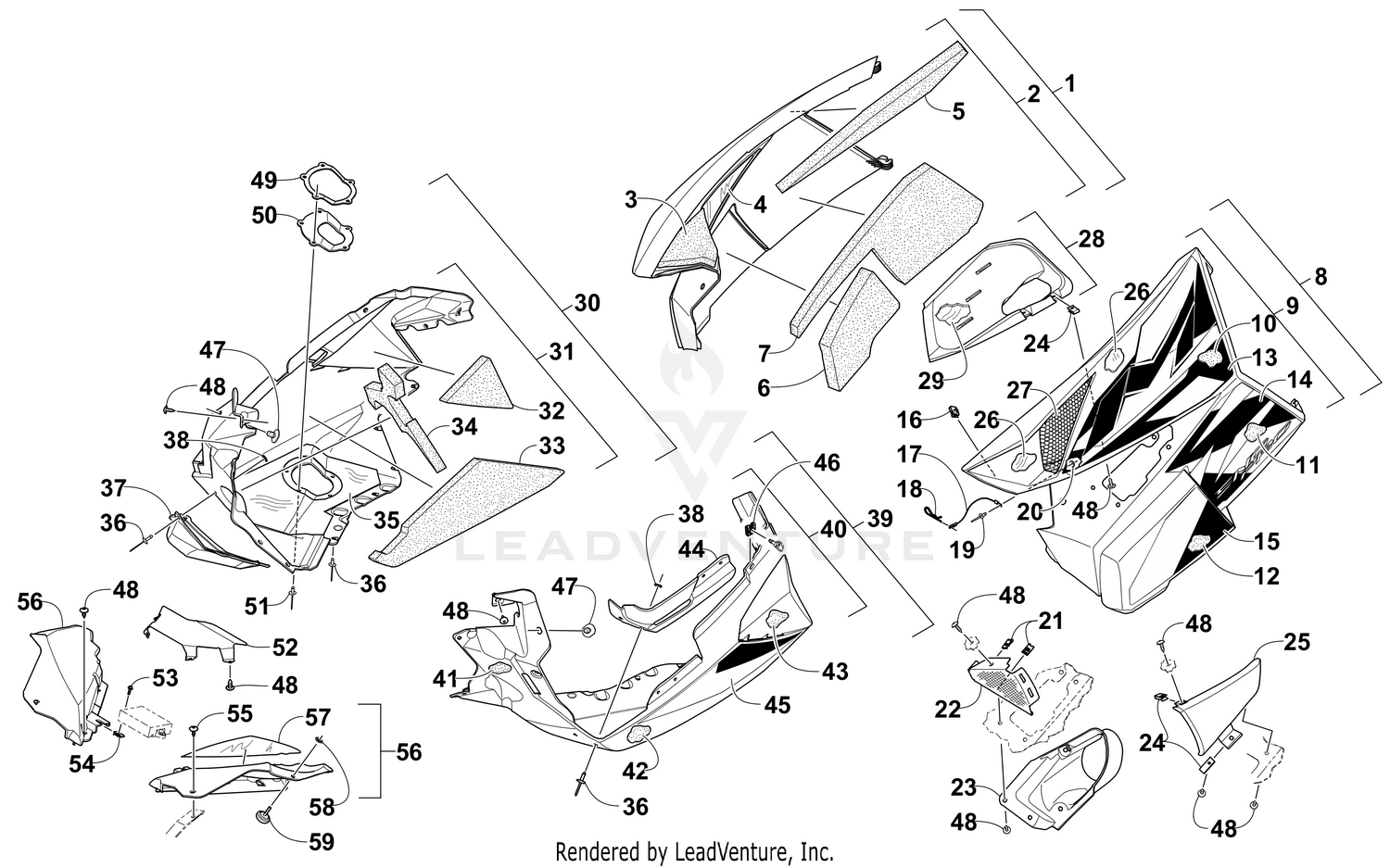

SKID PLATE AND SIDE PANEL ASSEMBLY [102627]

Parts (53)

Ref	Part Number	Description
3	0617-626	Foam, Side Panel - Upper Front - Right Price: $5.09
4	6606-414	Foil, Protective Price: $17.95
5	0617-628	Foam, Side Panel - Upper Rear - Right Price: $45.95
6	0617-632	Foam, Side Panel - Lower Front - Right Price: $24.20
7	0617-634	Foam, Side Panel - Lower Rear - Right Price: $47.95
10	0617-629	Foam, Side Panel - Upper Rear - Left Price: $19.35
11	0617-635	Foam, Side Panel - Lower Rear - Left Price: $19.29
12	0617-681	Foam, Side Panel - Lower Front - Left Price: $7.23
13	2621-398	Decal, Side Panel - Upper - Right - Green Price: $47.95
13	2621-399	Decal, Side Panel - Upper - Left - Green Price: $52.95
14	2621-404	Decal, Side Panel - Lower Rear - Right - Green Price: $47.95
14	2621-405	Decal, Side Panel - Lower Rear - Left - Green Price: $47.95
15	2621-402	Decal, Side Panel - Lower Front - Right - Green Price: $22.99
15	2621-403	Decal, Side Panel - Lower Front - Left - Green Price: $22.99
16	1623-637	Clip, U-Nut Price: $2.61
17	0607-447	Cable Price: $11.02
18	0605-283	Clip, Hairpin Price: $2.29
19	8060-486	Rivet Price: $0.29
20	8050-127	Washer Price: $1.57
21	1623-052	Clip, U-Nut Price: $1.08
22	6606-925	Screen, Intake Price: $36.95
23	2602-794	Duct, Intake - Inner Price: $71.95
24	1623-030	Clip, U-Nut Price: $1.08
25	2602-801	Duct, Intake - Outer - Green Price: $6.95
26	0619-206	Foil, Protective Price: $237.95
27	5706-531	Screen, Intake Price: $22.99
29	6606-694	Foil, Protective Price: $1.19
32	0617-640	Foam, Skid Plate - Upper Rear - Right Price: $4.23
33	0617-638	Foam, Skid Plate - Center Front - Right Price: $17.95
34	0617-636	Foam, Skid Plate - Upper Front - Right Price: $45.95
35	2612-850	Foil, Protective Price: $12.95
36	8061-708	Rivet Price: $1.08
37	2612-754	Deflector, Heat Price: $31.95
38	0123-802	Washer Price: $0.23
41	0617-637	Foam, Skid Plate - Upper Front - Left Price: $7.95
42	0617-639	Foam, Skid Plate - Center Front - Left Price: $19.35
43	0617-641	Foam, Skid Plate - Upper Rear - Left Price: $4.72
44	6606-613	Panel, Reinforcement Price: $14.49
45	2621-406	Decal, Skid Plate - Lower Front - Right - Green Price: $24.20
45	2621-407	Decal, Skid Plate - Lower Front - Left - Green Price: $46.95
46	2623-005	Clip, Retaining Price: $2.91
47	6606-592	Pin, Retaining Price: $3.88
48	1623-129	Screw, Self-Tapping Price: $0.29
49	2612-796	Plate, Exhaust Outlet Price: $28.95
50	2612-795	Seal, Exhaust Outlet Price: $19.35
51	8061-710	Rivet Price: $1.20
52	6606-295	Shield, Heat - EMC Price: $20.95
53	8476-620	Screw, Machine This part replaces 8408-620. Price: $0.48
54	0423-031	Clip, U-Nut Price: $1.08
55	0623-784	Screw, Self-Tapping Price: $0.09
56	6606-342	Fascia, Front - Right - Black Price: $39.95
57	6606-405	Foil, Protective Price: $31.27
58	2623-001	RETAINER,PUSHNUT - 3/16" STUD Price: $0.48
