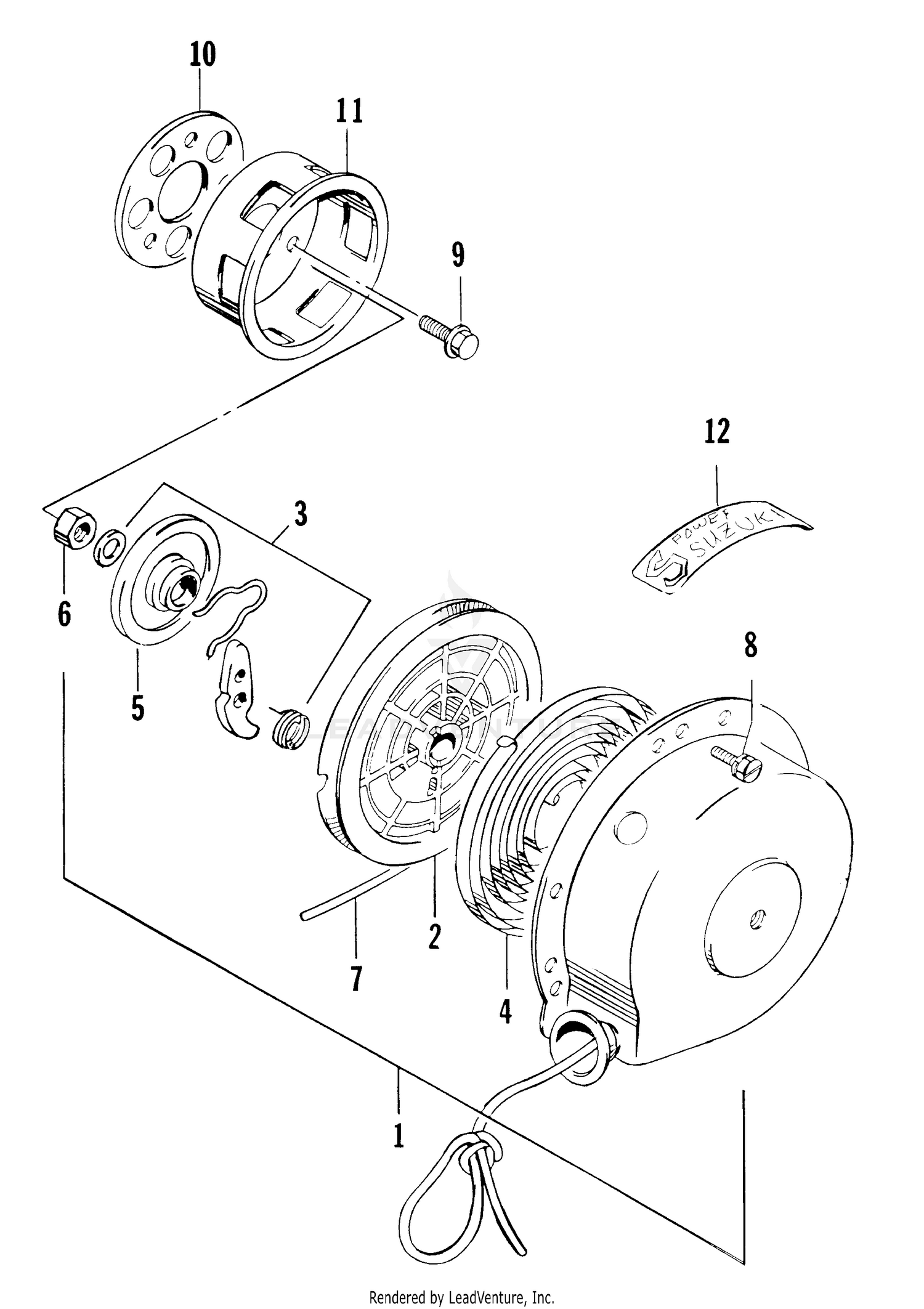

RECOIL STARTER [64000]
![RECOIL STARTER [64000]](https://cdn.datamanager.arinet.com/image/ARCT/b8f9e6ea-16a4-4f0b-a735-1c1d74b6f708/Max)
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3006-915 | Starter, Recoil - Assembly Price: $291.95 |
| 2 | 3003-179 | Roller, Starter Price: $66.95 |
| 3 | 3004-729 | RATCHET SET(w/o friction plate) Price: $35.95 |
| 4 | 3002-921 | Spring Price: $45.95 |
| 5 | 3003-181 | PLATE,DRIVE Price: $2.89 |
| 6 | 3007-684 | Nut - 10 mm Price: $3.47 |
| 7 | 3006-889 | Rope, Starter (6 mm Dia.) (203 cm) Price: $28.95 |
| 8 | 3007-374 | Bolt Price: $3.13 |
| 9 | 3007-392 | BOLT Price: $2.35 |
| 10 | 3003-671 | Spacer, Starter Pulley Price: $42.92 |
| 11 | 3004-819 | Pulley, Starter Price: $72.95 |
