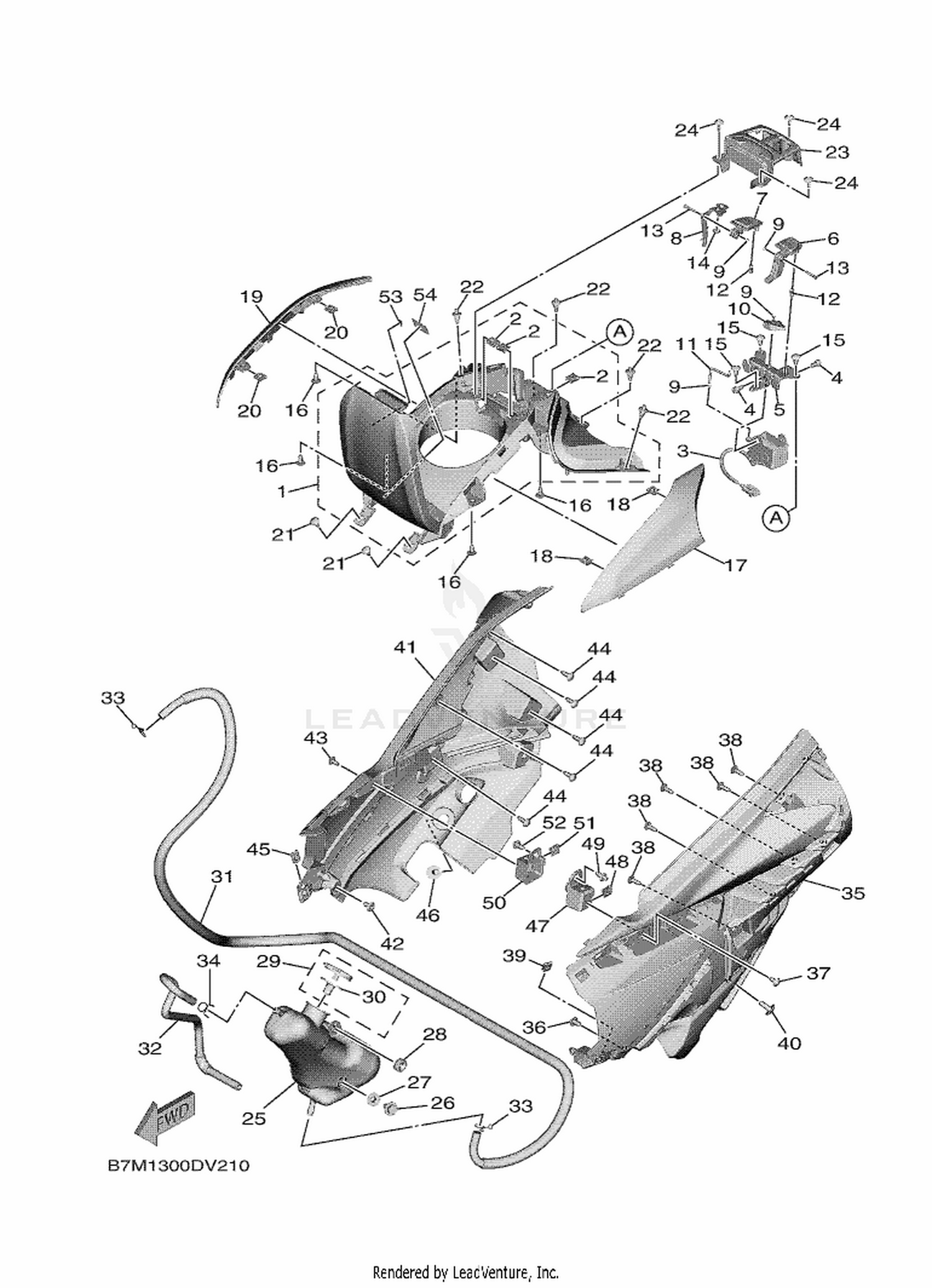

| Ref | Part Number | Description |
|---|
| 1 |
BC3-24765-00 |
LID, DOUBLE SEAT Price: Call Us |
| 2 |
90183-05042 |
NUT, SPRING Price: Call Us |
| 3 |
BC3-86111-00 |
COIL, SOLENOID Price: Call Us |
| 4 |
91312-05010 |
BOLT, HEXAGON SOCKET HEAD Price: Call Us |
| 5 |
B7M-2172K-00 |
BRACKET 1 Price: Call Us |
| 6 |
B7M-2477F-00 |
LEVER, SEAT Price: Call Us |
| 7 |
B7M-24776-00 |
LEVER, SEAT Price: Call Us |
| 8 |
B7M-2172N-00 |
BRACKET 4 Price: Call Us |
| 9 |
93430-02001 |
CIRCLIP Price: Call Us |
| 10 |
BC3-2178J-00 |
LOCK Price: Call Us |
| 11 |
BC3-2178V-00 |
SHAFT, LOCK Price: Call Us |
| 12 |
90501-05512 |
SPRING, COMPRESSION Price: Call Us |
| 13 |
B7M-24624-00 |
PIN 2 Price: Call Us |
| 14 |
90183-05M02 |
NUT, SPRING Price: Call Us |
| 15 |
90160-05015 |
SCREW, ROUND TAPPING Price: Call Us |
| 16 |
97702-50012 |
SCREW, TAPPING Price: Call Us |
| 17 |
BC3-24129-A0 |
COVER, SIDE 1 Price: Call Us |
| 18 |
90183-05042 |
NUT, SPRING Price: Call Us |
| 19 |
BC3-24139-A0 |
COVER, SIDE 2 Price: Call Us |
| 20 |
90183-05042 |
NUT, SPRING Price: Call Us |
| 21 |
97702-50012 |
SCREW, TAPPING Price: Call Us |
| 22 |
90269-06008 |
RIVET Price: Call Us |
| 23 |
BC3-24796-00 |
COVER Price: Call Us |
| 24 |
90167-05079 |
SCREW, TAPPING Price: Call Us |
| 25 |
BC3-21871-00 |
TANK, RECOVERY Price: Call Us |
| 26 |
90119-06230 |
BOLT, WITH WASHER Price: Call Us |
| 27 |
90387-06681 |
COLLAR Price: Call Us |
| 28 |
90480-10334 |
GROMMET Price: Call Us |
| 29 |
1AA-21815-00 |
CAP Price: Call Us |
| 31 |
B7M-21816-00 |
PIPE 1 Price: Call Us |
| 32 |
BC3-21817-00 |
PIPE 2 Price: Call Us |
| 33 |
90467-090A2 |
CLIP Price: Call Us |
| 34 |
90467-10008 |
CLIP Price: Call Us |
| 35 |
B7M-2171N-00 |
MOLE, SIDE COVER 3 Price: Call Us |
| 36 |
90269-06019 |
RIVET Price: Call Us |
| 37 |
97702-50012 |
SCREW, TAPPING Price: Call Us |
| 38 |
97702-50016 |
SCREW, TAPPING Price: Call Us |
| 39 |
90183-05076 |
NUT, SPRING Price: Call Us |
| 41 |
B7M-2171R-00 |
MOLE, SIDE COVER 4 Price: Call Us |
| 42 |
90269-06019 |
RIVET Price: Call Us |
| 43 |
97702-50012 |
SCREW, TAPPING Price: Call Us |
| 44 |
97702-50016 |
SCREW, TAPPING Price: Call Us |
| 45 |
90183-05076 |
NUT, SPRING Price: Call Us |
| 47 |
B7M-2175T-00 |
BRACKET 1 Price: Call Us |
| 48 |
90183-05042 |
NUT, SPRING Price: Call Us |
| 49 |
90269-06008 |
RIVET Price: Call Us |
| 50 |
B7M-2175U-00 |
BRACKET 2 Price: Call Us |
| 51 |
90183-05042 |
NUT, SPRING Price: Call Us |
| 52 |
90269-06008 |
RIVET Price: Call Us |
| 53 |
B88-2817K-20 |
LABEL, FUEL Price: Call Us |
