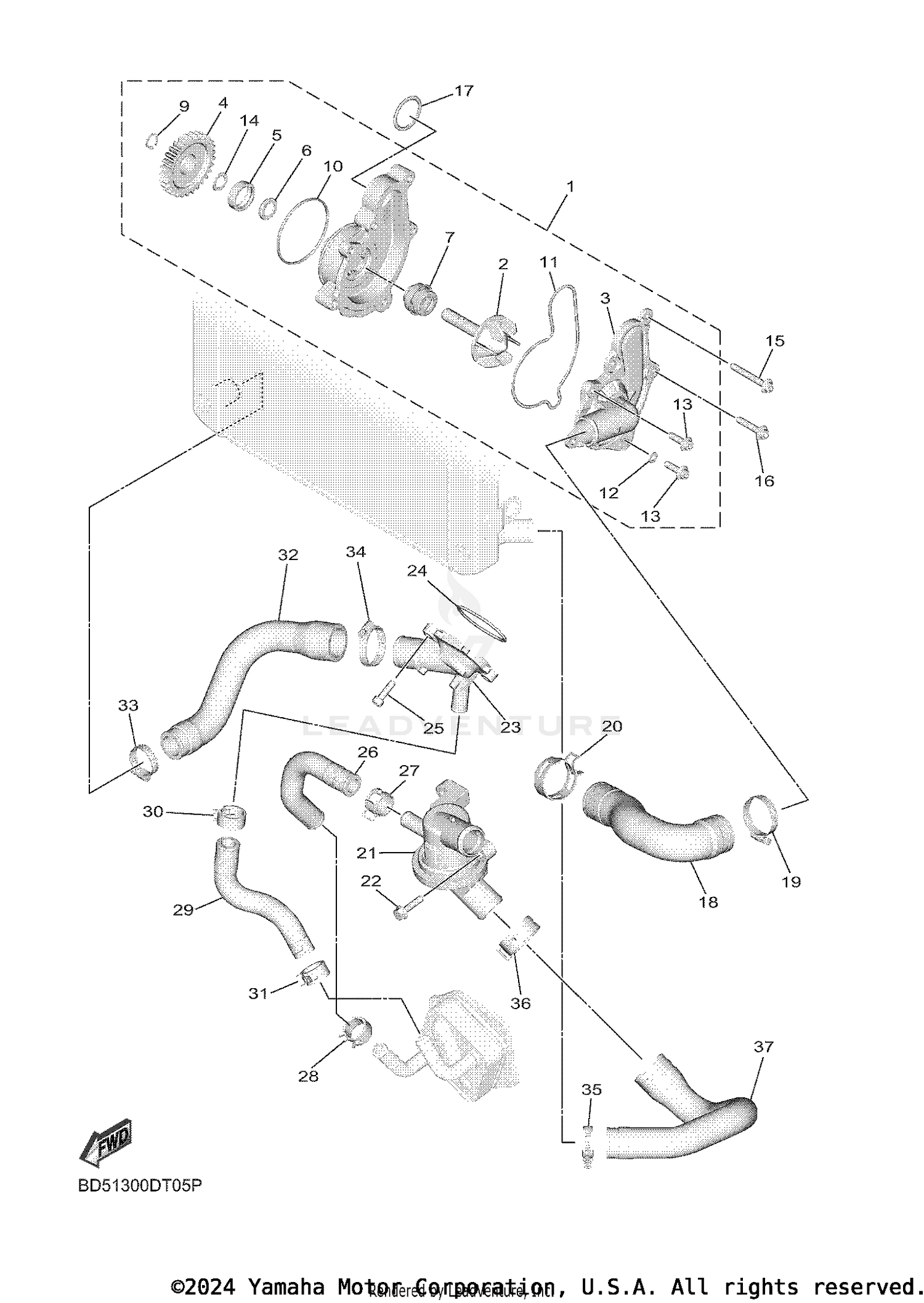

WATER PUMP
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1RC-12420-10-00 | WATER PUMP ASSY This part replaces 1RC-12420-00-00. Price: $247.99 |
| 2 | 99999-04618-00 | IMPELLER SHAFT PIN SET This part replaces 1RC-12450-00-00. Price: $39.99 |
| 3 | 1RC-12422-00-00 | COVER, HOUSING Price: $96.99 |
| 4 | 1RC-12459-00-00 | GEAR, IMPELLER SHAFT Price: $34.99 |
| 5 | 93306-00105-00 | BEARING This part replaces 93306-00106-00. Price: $33.99 |
| 6 | 93101-12173-00 | OIL SEAL Price: $14.49 |
| 7 | 5VK-12438-00-00 | SEAL, MECHANICAL Price: $66.99 |
| 9 | 99009-12400-00 | CIRCLIP Price: $3.59 |
| 10 | 93210-61750-00 | O-RING Price: $9.49 |
| 11 | 1RC-12439-00-00 | O-RING Price: $15.49 |
| 12 | 90430-06014-00 | GASKET Price: $8.60 |
| 13 | 90110-06396-00 | BOLT, HEXAGON SOCKET HEAD Price: $3.20 |
| 14 | 90201-12541-00 | WASHER, PLATE Price: $8.49 |
| 15 | 90110-06394-00 | BOLT, HEXAGON SOCKET HEAD Price: $2.60 |
| 16 | 90110-06388-00 | BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 17 | 93210-30694-00 | O-RING Price: $8.49 |
| 18 | 1RC-12577-00-00 | HOSE 2 Price: $24.99 |
| 19 | 90450-38040-00 | HOSE CLAMP ASSY Price: $19.49 |
| 20 | 90467-310A0-00 | CLIP Price: $5.49 |
| 21 | 1RC-12410-00-00 | THERMOSTAT ASSY Price: $152.99 |
| 22 | 95817-06025-00 | BOLT, FLANGE This part replaces 95822-06025-00. Price: $1.75 |
| 23 | 1RC-12469-00-00 | JOINT 1 Price: $58.99 |
| 24 | 93210-46044-00 | O-RING Price: $8.49 |
| 25 | 91314-06020-00 | BOLT, HEXAGON SOCKET HEAD This part replaces 90110-06274-00. Price: $2.65 |
| 26 | BS2-12578-00-00 | HOSE 3 Price: $13.49 |
| 27 | 90467-21068-00 | CLIP Price: $8.49 |
| 28 | 90467-200A0-00 | CLIP Price: $9.99 |
| 29 | BS2-12579-00-00 | HOSE 4 Price: $16.49 |
| 30 | 90467-22002-00 | CLIP Price: $4.49 |
| 31 | 90467-200A0-00 | CLIP Price: $9.99 |
| 32 | BD5-12588-00-00 | HOSE 5 Price: $14.49 |
| 33 | 90450-32003-00 | HOSE CLAMP ASSY Price: $18.49 |
| 34 | 90450-38040-00 | HOSE CLAMP ASSY Price: $19.49 |
| 35 | 90450-32003-00 | HOSE CLAMP ASSY Price: $18.49 |
| 36 | 90467-310A0-00 | CLIP Price: $5.49 |
