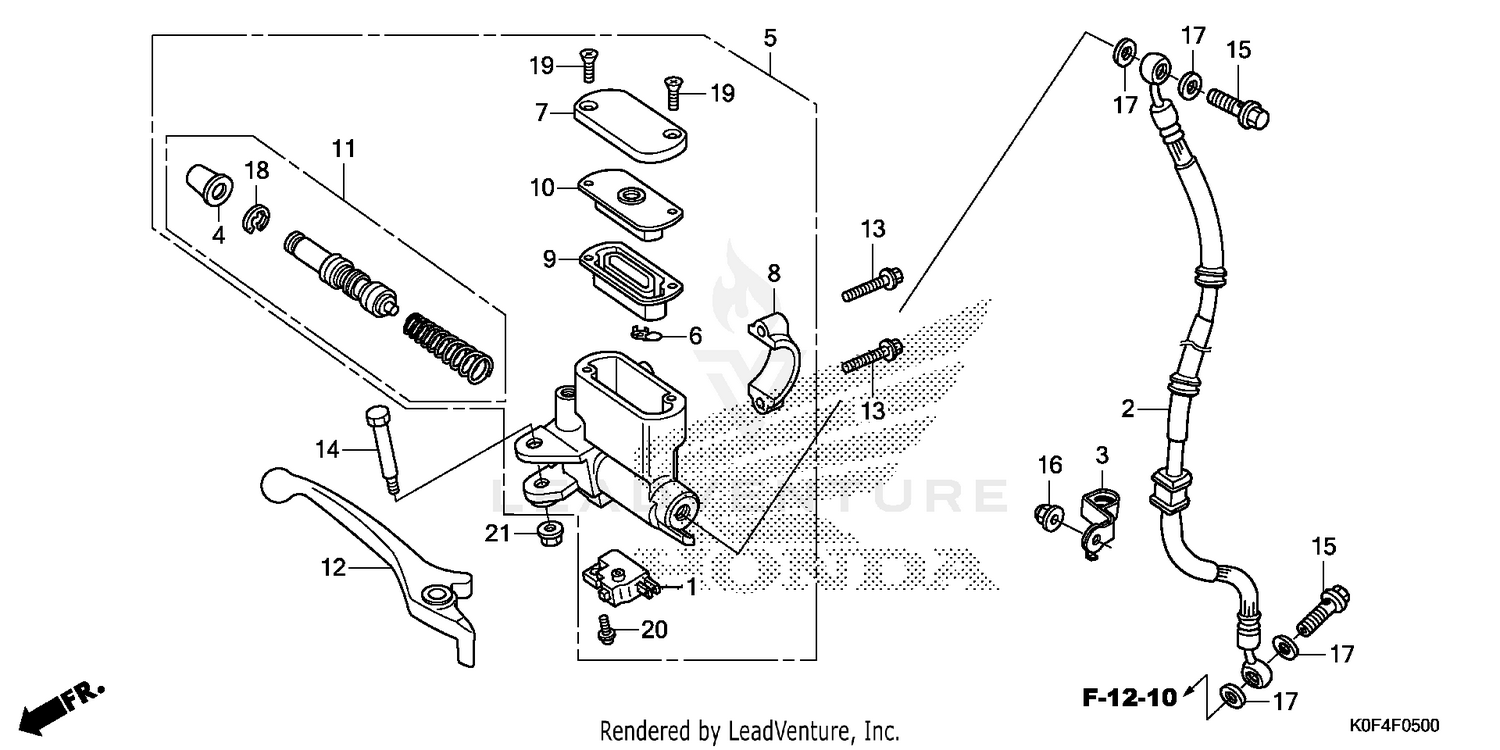

| Ref | Part Number | Description |
|---|
| 1 |
35340-MGS-D31 |
SWITCH ASSY., FR. STOP Price: $22.42 |
| 2 |
45125-K0F-T01 |
HOSE, FR. BRAKE Price: $27.44 |
| 3 |
45156-K0F-T00 |
CLAMP A, FR. BRAKE HOSE Price: $5.95 |
| 4 |
45504-410-003 |
BOOT Price: $14.75 |
| 5 |
45510-K0F-A01 |
MASTER CYLINDER SUB-ASSY., FR. BRAKE (NISSIN) Price: $124.67 |
| 6 |
45512-MA6-006 |
PROTECTOR Price: $5.38 |
| 7 |
45513-KWN-671 |
CAP, MASTER CYLINDER Price: $22.36 |
| 8 |
45517-166-006 |
HOLDER, MASTER CYLINDER Price: $16.42 |
| 9 |
45520-GW0-911 |
DIAPHRAGM Price: $9.15 |
| 10 |
45521-GW0-911 |
PLATE, DIAPHRAGM Price: $7.20 |
| 11 |
45530-471-831 |
MASTER CYLINDER SET Price: $48.07 |
| 12 |
53175-K26-305 |
LEVER, R. HANDLEBAR (COO) Price: $19.98 |
| 13 |
90013-GHB-660 |
BOLT, FLANGE (6X22) Price: $2.65 |
| 14 |
90114-KGH-900 |
BOLT, HANDLE LEVER PIVOT Price: $1.11 |
| 15 |
90145-KPH-B30 |
BOLT, OIL (10X22) (NISSIN) Price: $2.05 |
| 16 |
90304-GFM-970 |
NUT, CAP (6MM) Price: $3.53 |
| 17 |
90545-300-000 |
WASHER, OIL BOLT Price: $5.02 |
| 18 |
90651-MA5-671 |
CIRCLIP Price: $3.35 |
| 19 |
93600-04012-0G |
SCREW, FLAT (4X12) Price: $0.95 |
| 20 |
93893-04012-07 |
SCREW-WASHER (4X12) Price: $1.40 |
