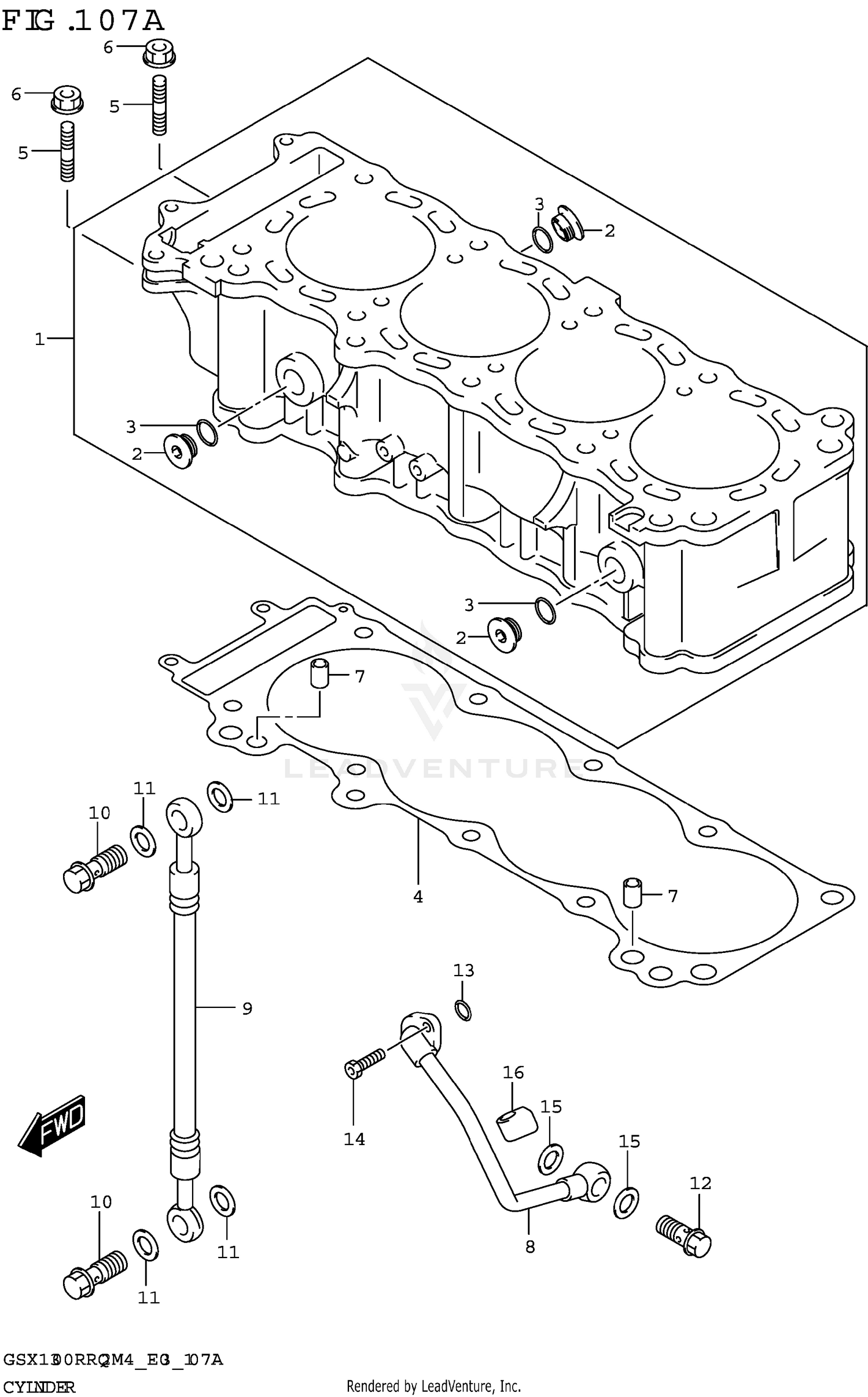

CYLINDER
Parts (12)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 11210-15H00-0F0 | CYLINDER Price: $2,153.66 |
| 5 | 01421-0625A | STUD BOLT Price: $2.43 |
| 6 | 08316-1006A | NUT (6X12) Price: $2.64 |
| 7 | 04211-11169 | PIN Price: $2.15 |
| 8 | 11280-24F00 | PIPE,CRANKCASE OIL Price: $78.21 |
| 9 | 11282-10L00 | HOSE,CYL HEAD OIL Price: $66.95 |
| 10 | 09360-10062 | UNION (10X1.25X22) Price: $7.84 |
| 11 | 09168-10007 | GASKET (10.1X16X1) Price: $2.07 |
| 12 | 09360-14012 | UNION (14X27) Price: $13.23 |
| 13 | 09280-12012 | O RING (D:2.4,ID:11.8) Price: $5.66 |
| 14 | 09106-06073 | BOLT (6X16) Price: $2.87 |
| 15 | 09168-14015 | GASKET (14X20X1.5) Price: $2.45 |
