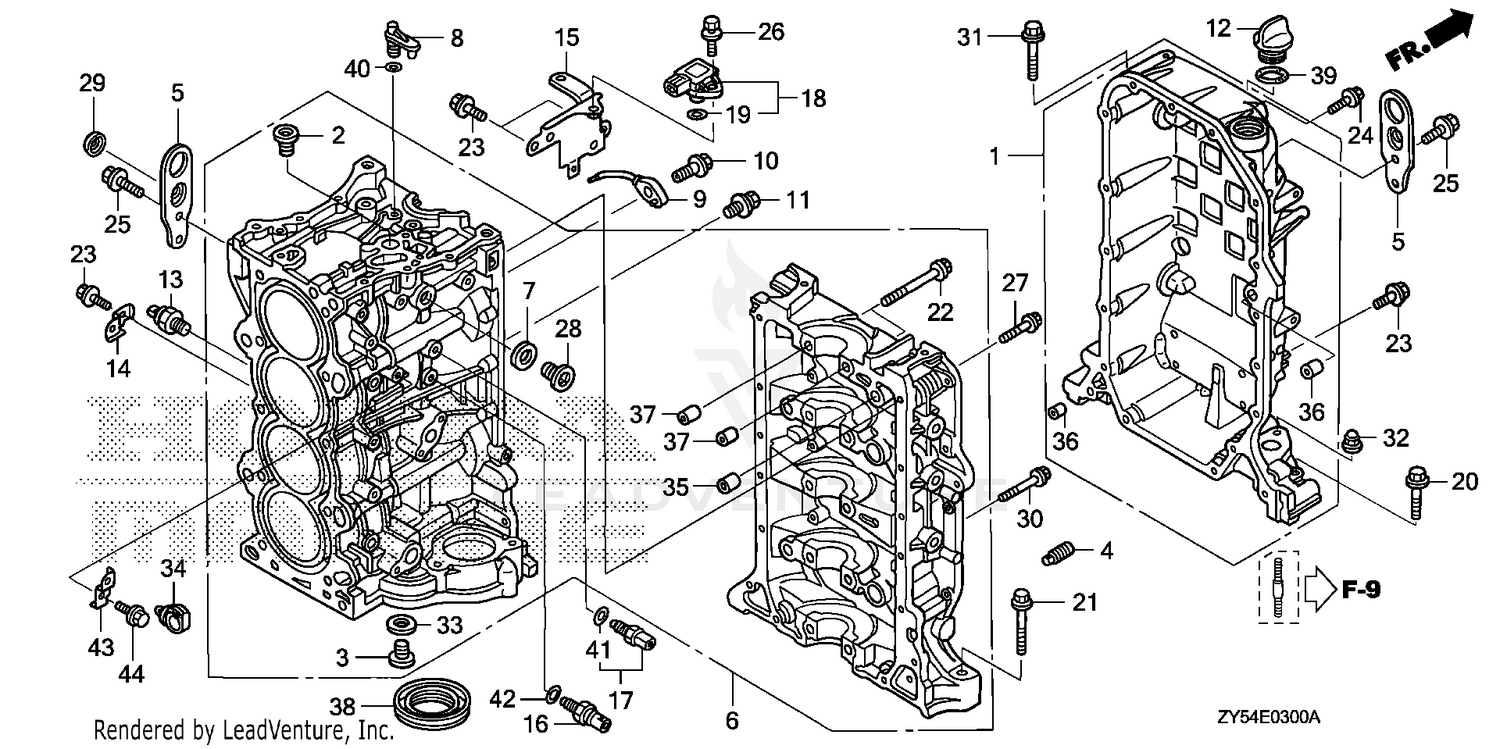

| Ref | Part Number | Description |
|---|
| 1 |
11100-ZY6-405 |
SEE PART DETAILS - PRI; CRANKCASE Price: $489.15 |
| 2 |
11106-PNA-300 |
BOLT, SEALING (20MM) Price: $10.66 |
| 2 |
11106-ZY6-000 |
BOLT, SEALING (20MM) Price: $9.32 |
| 3 |
11106-PR4-013 |
BOLT, SEALING (28MM) Price: $20.74 |
| 4 |
11135-PNA-000 |
ORIFICE, BLOCK (LOWER) Price: $10.94 |
| 5 |
11911-ZY6-000 |
HANGER, ENGINE Price: $28.02 |
| 6 |
12000-ZY6-435ZA |
BLOCK ASSY. *NH8* This part replaces 12000-ZY6-415ZA. Price: $3,359.14 |
| 6 |
12000-ZY6-445ZA |
BLOCK ASSY., CYLINDER *NH8* (DARK GRAY) Price: $2,756.23 |
| 7 |
12214-ZV5-000 |
SEE PART DETAILS - PRI; WASHER, SEALING (22MM) Price: $4.00 |
| 8 |
15152-ZY6-000 |
ORIFICE, OIL JET Price: $26.64 |
| 9 |
15280-PRB-A00 |
BODY, OIL JET Price: $34.48 |
| 10 |
15290-PRA-000 |
BOLT, OIL JET Price: $45.16 |
| 11 |
15299-ZY6-000 |
BOLT-WASHER (8X10) Price: $7.32 |
| 12 |
15611-921-000 |
SEE PART DETAILS - PRI; CAP, OIL (Honda Code 0282806). Price: $13.88 |
| 13 |
30530-PPL-A01 |
SENSOR, KNOCK Price: $241.66 |
| 14 |
32114-ZVL-000 |
BRACKET, CLIP B Price: $3.96 |
| 15 |
32114-ZY6-000 |
BRACKET D, HARNESS CLIP Price: $26.36 |
| 16 |
35490-ZY6-003 |
SWITCH ASSY., OIL PRESSURE Price: $42.30 |
| 17 |
35673-ZY3-003 |
SENSOR ASSY., WATER TEMPERATURE Price: $30.98 |
| 18 |
37830-PGK-A01 |
SENSOR ASSY., MAP Price: $157.94 |
| 19 |
37835-PGK-A01 |
O-RING Price: $11.78 |
| 20 |
90010-ZVL-010 |
BOLT, FLANGE (8X55) Price: $1.80 |
| 21 |
90005-ZY6-030 |
BOLT, FLANGE (12X83) Price: $10.94 |
| 22 |
90006-PNA-003 |
BOLT-WASHER (11X95) Price: $10.34 |
| 23 |
90011-ZW9-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (CT200) Price: $2.34 |
| 24 |
90014-ZZ5-M01 |
BOLT, FLANGE (6X25) Price: $2.56 |
| 25 |
90026-ZY9-M01 |
BOLT, FLANGE (8X20) This part replaces 90026-ZY3-000. Price: $2.04 |
| 26 |
90029-ZY3-000 |
BOLT-WASHER (5X18) Price: $0.84 |
| 27 |
90054-ZY9-M01 |
BOLT, FLANGE (8X35) Price: $2.36 |
| 28 |
90081-ZY6-010 |
BOLT, SEALING (22MM) Price: $9.18 |
| 28 |
90081-ZZ5-M01 |
BOLT, SEALING (22MM) This part replaces 90081-ZV5-010. Price: $6.18 |
| 29 |
90082-ZY6-003 |
CAP, BOLT (8MM) Price: $3.96 |
| 30 |
90020-ZVL-010 |
BOLT, FLANGE (8X50) Price: $1.70 |
| 31 |
90162-ZW4-030 |
BOLT, FLANGE (10X70) Price: $2.98 |
| 32 |
90204-ZVL-010 |
NUT (10MM) Price: $1.64 |
| 33 |
90401-PR4-000 |
WASHER, SEALING (28MM) Price: $7.28 |
| 34 |
90691-ZB7-003 |
SEE PART DETAILS - PRI; CLIP, HARNESS Price: $4.20 |
| 35 |
90703-PE0-000 |
PIN, DOWEL (18X22) Price: $12.68 |
| 36 |
90715-PC6-000 |
PIN, DOWEL (13X20) (Honda Code 1477652). Price: $7.74 |
| 37 |
90715-PNA-000 |
PIN, DOWEL (13X14) Price: $7.74 |
| 38 |
91214-RNB-A01 |
SEE PART DETAILS - PRI; OIL SEAL (80X98X10) (ARAI) This part replaces 91214-PNA-014. Price: $23.48 |
| 39 |
91301-805-000 |
SEE PART DETAILS - PRI; O-RING (26X2.7) (Honda Code 0065185). Price: $5.00 |
| 40 |
91305-ZY6-003 |
O-RING (6.5X1.5) Price: $2.32 |
| 41 |
91307-PNA-003 |
O-RING (9.5X1.9) Price: $2.76 |
| 42 |
91319-PR3-003 |
O-RING (13X1.5) (ARAI) Price: $6.28 |
| 43 |
32114-ZVL-000 |
BRACKET, CLIP B This part replaces 32114-ZW9-730. Price: $3.96 |
