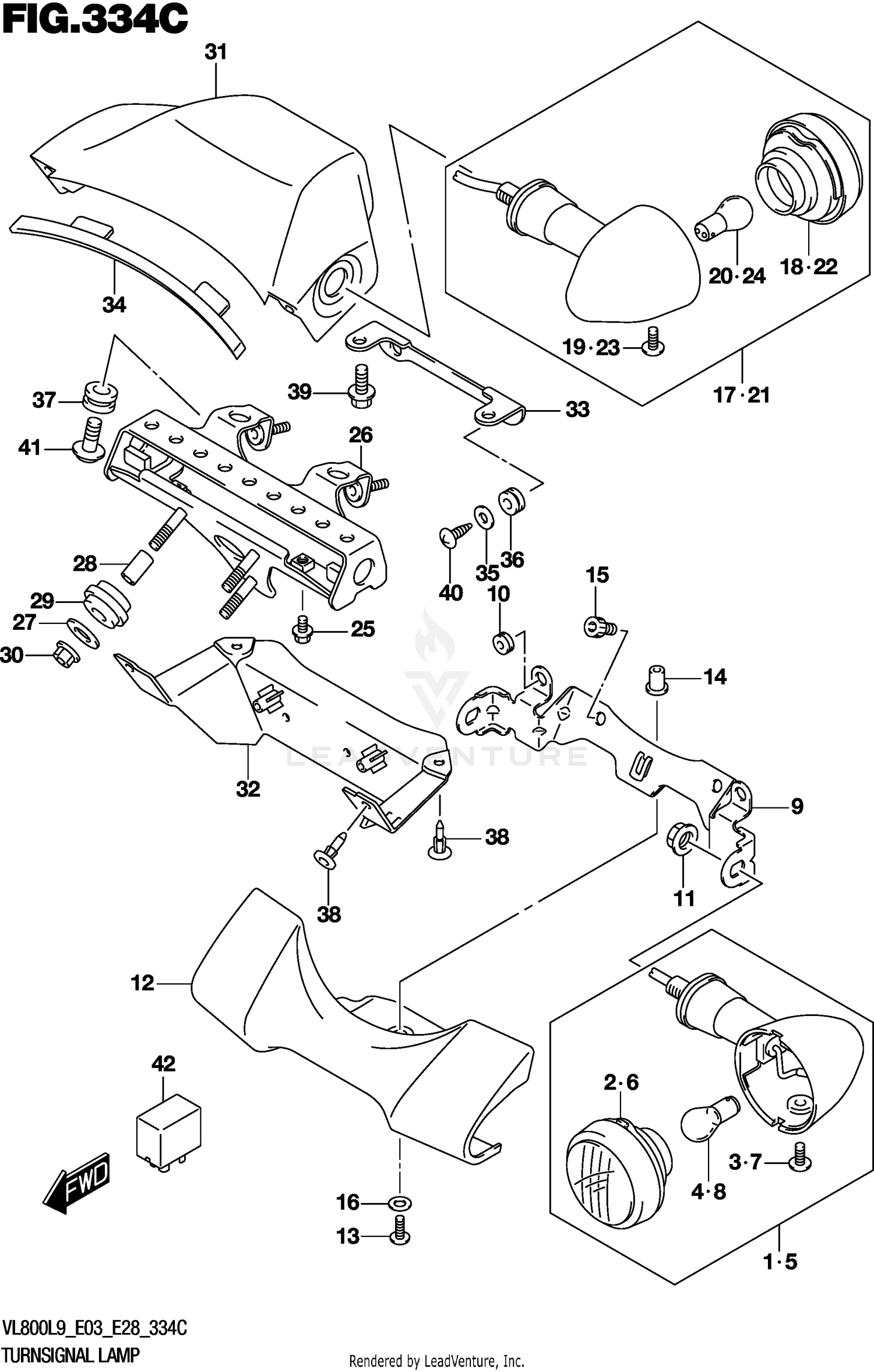

| Ref | Part Number | Description |
|---|
| 1 |
35601-41FC0 |
LAMP ASSY,FRONT TURNSIGNAL,R Price: $146.42 |
| 4 |
09471-12128 |
BULB (12V,21/5W) This part replaces 09471-12083. Price: $8.20 |
| 5 |
35602-41FC0 |
LAMP ASSY,FRONT TURNSIGNAL,L Price: $145.70 |
| 8 |
09471-12128 |
BULB (12V,21/5W) This part replaces 09471-12083. Price: $8.20 |
| 9 |
35616-41FA3 |
BRACKET This part replaces 35616-41FA2. Price: $65.49 |
| 10 |
09320-06027 |
CUSHION (6.5X14X6) This part replaces 09320-06016. Price: $2.56 |
| 11 |
08310-0010B |
NUT Price: $2.85 |
| 12 |
35641-41F02 |
COVER,FRONT TURNSIGNAL Price: $97.42 |
| 13 |
09139-05042 |
SCREW (5X16) Price: $3.06 |
| 14 |
09159-05019 |
NUT (M5) Price: $8.69 |
| 15 |
07130-0812A |
BOLT Price: $3.91 |
| 16 |
09160-05048 |
WASHER (5.5X14X1.2) Price: $2.12 |
| 17 |
35603-38AH0 |
LAMP ASSY,REAR TURNSIGNAL RH Price: $151.38 |
| 21 |
35604-38AH0 |
LAMP ASSY,REAR TURNSIGNAL LH Price: $145.70 |
| 25 |
09103-06507 |
BOLT (6X14) Price: $4.54 |
| 26 |
35620-43H01 |
BRACKET,REAR TURNSIGNAL Price: $58.31 |
| 27 |
09160-06077 |
WASHER (6.5X20X1.2) Price: $2.30 |
| 28 |
09180-06195 |
SPACER (6.4X10X18) Price: $4.54 |
| 29 |
09320-10504 |
CUSHION Price: $6.08 |
| 30 |
08316-1006A |
NUT (6X12) Price: $2.64 |
| 31 |
35621-43H00 |
COVER,REAR TURNSIGNAL UPPER Price: $120.05 |
| 32 |
35622-06J00 |
COVER,REAR TURNSIGNAL LWR Price: $46.20 |
| 33 |
35623-43H00 |
BRACKET,REAR TURNSIGNAL COVER Price: $11.43 |
| 34 |
35657-43H00 |
GASKET,REAR TURNSIGNAL COVER Price: $8.95 |
| 35 |
09160-04022 |
WASHER (4.3X14X0.8) Price: $2.27 |
| 36 |
09320-06027 |
CUSHION (6.5X14X6) This part replaces 09320-06016. Price: $2.56 |
| 37 |
09320-08066 |
CUSHION (8.4X18X6) Price: $10.04 |
| 38 |
09409-06314-5PK |
CLIP (5.9X20.5,BLACK) Price: $3.23 |
| 39 |
01550-0612A |
BOLT Price: $2.37 |
| 40 |
03541-0412A |
SCREW Price: $1.65 |
| 41 |
03541-0510A |
SCREW Price: $1.73 |
