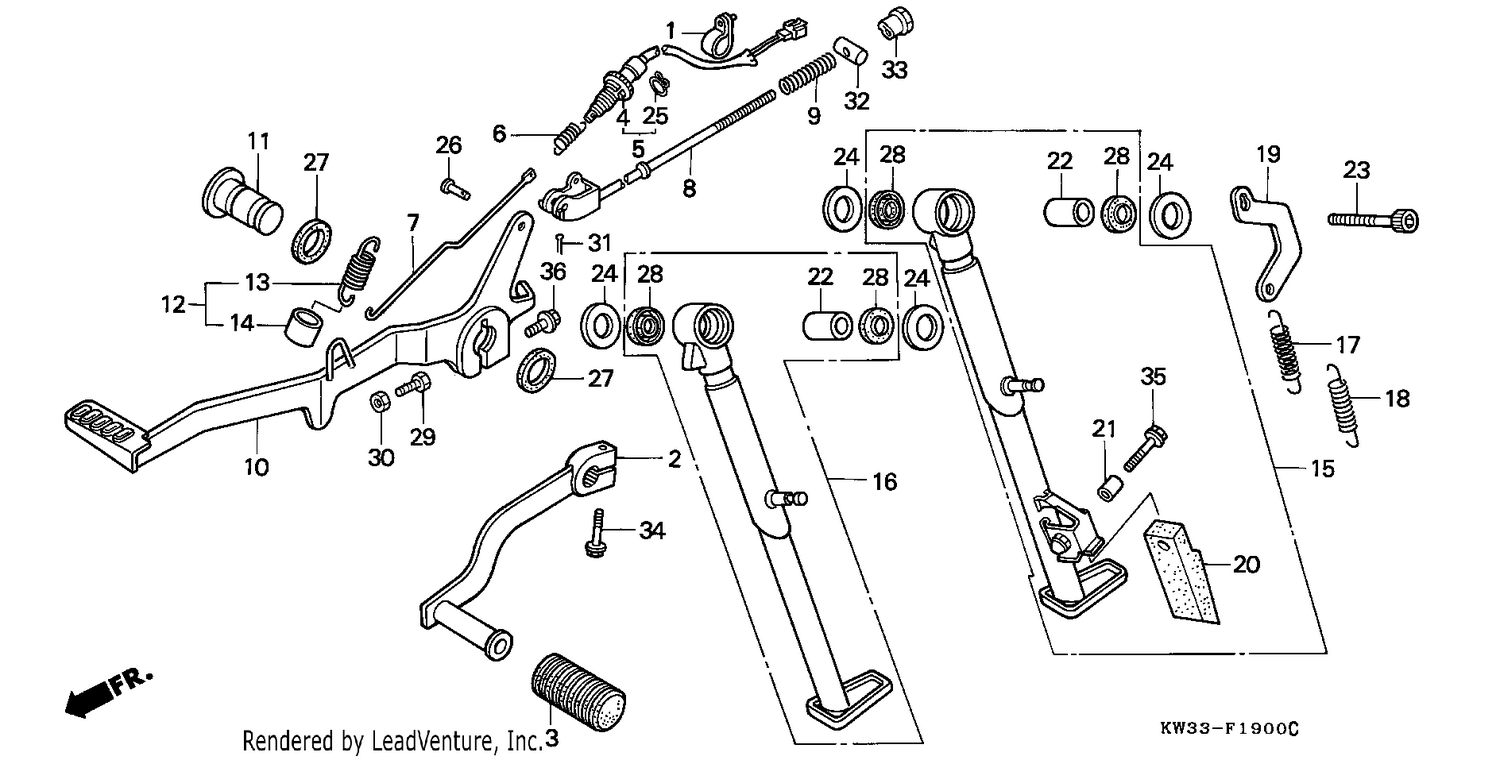

| Ref | Part Number | Description |
|---|
| 1 |
17918KJ2000 |
CLIP, THROTTLE CABLE Price: Call Us |
| 2 |
24700KW3000 |
PEDAL COMP., CHANGE Price: Call Us |
| 3 |
24781419000 |
RUBBER, GEAR CHANGE PEDAL Price: Call Us |
| 5 |
35350KW3010 |
SWITCH ASSY., RR. STOP Price: Call Us |
| 6 |
35357GE2000 |
SPRING, STOP SWITCH (44MM) Price: Call Us |
| 7 |
35358KW3000 |
ROD, STOP SWITCH Price: Call Us |
| 8 |
43451KW3670 |
ROD, RR. BRAKE Price: Call Us |
| 9 |
43472KB9750 |
SPRING A, BRAKE ROD Price: Call Us |
| 10 |
46500KW3670 |
PEDAL COMP., RR. BRAKE Price: Call Us |
| 11 |
46501KW3000 |
PIPE, BRAKE PEDAL PIVOT Price: Call Us |
| 12 |
46513KW3670 |
SPRING SET, BRAKE PEDAL Price: Call Us |
| 13 |
46514KW3670 |
SPRING, BRAKE PEDAL Price: Call Us |
| 14 |
46515MN1670 |
TUBE, BRAKE PEDAL SPRING Price: Call Us |
| 16 |
50540KW3610 |
BAR ASSY., SIDE STAND Price: Call Us |
| 17 |
50541MN4610 |
SPRING, SIDE STAND Price: Call Us |
| 18 |
50544MN4610 |
SPRING, SIDE STAND SUB Price: Call Us |
| 19 |
50545KW3610 |
PLATE, SIDE STAND SPRING Price: Call Us |
| 22 |
50550KW3000 |
COLLAR, SIDE STAND Price: Call Us |
| 23 |
90101KW3000 |
BOLT, SOCKET, 10X45 Price: Call Us |
| 24 |
90501KW3000 |
WASHER, THRUST Price: Call Us |
| 25 |
90601KAF003 |
CLIP, SWITCH COVER Price: Call Us |
| 26 |
9501553000 |
PIN C, JOINT Price: Call Us |
| 27 |
91251HA2003 |
DUST SEAL, 18X23X3 Price: Call Us |
| 28 |
91262KW3003 |
DUST SEAL, PIVOT Price: Call Us |
| 29 |
90101KW3660 |
BOLT, HEX., 6X25 Price: Call Us |
| 30 |
9400206000 |
NUT, HEX., 6MM Price: Call Us |
| 31 |
9420120120 |
PIN, SPLIT, 2.0X12 Price: Call Us |
| 32 |
9501532001 |
JOINT B, BRAKE ARM Price: Call Us |
| 33 |
9501542000 |
NUT B, BRAKE ROD ADJUSTING Price: Call Us |
| 34 |
957010602007 |
BOLT, FLANGE, 6X20 Price: Call Us |
