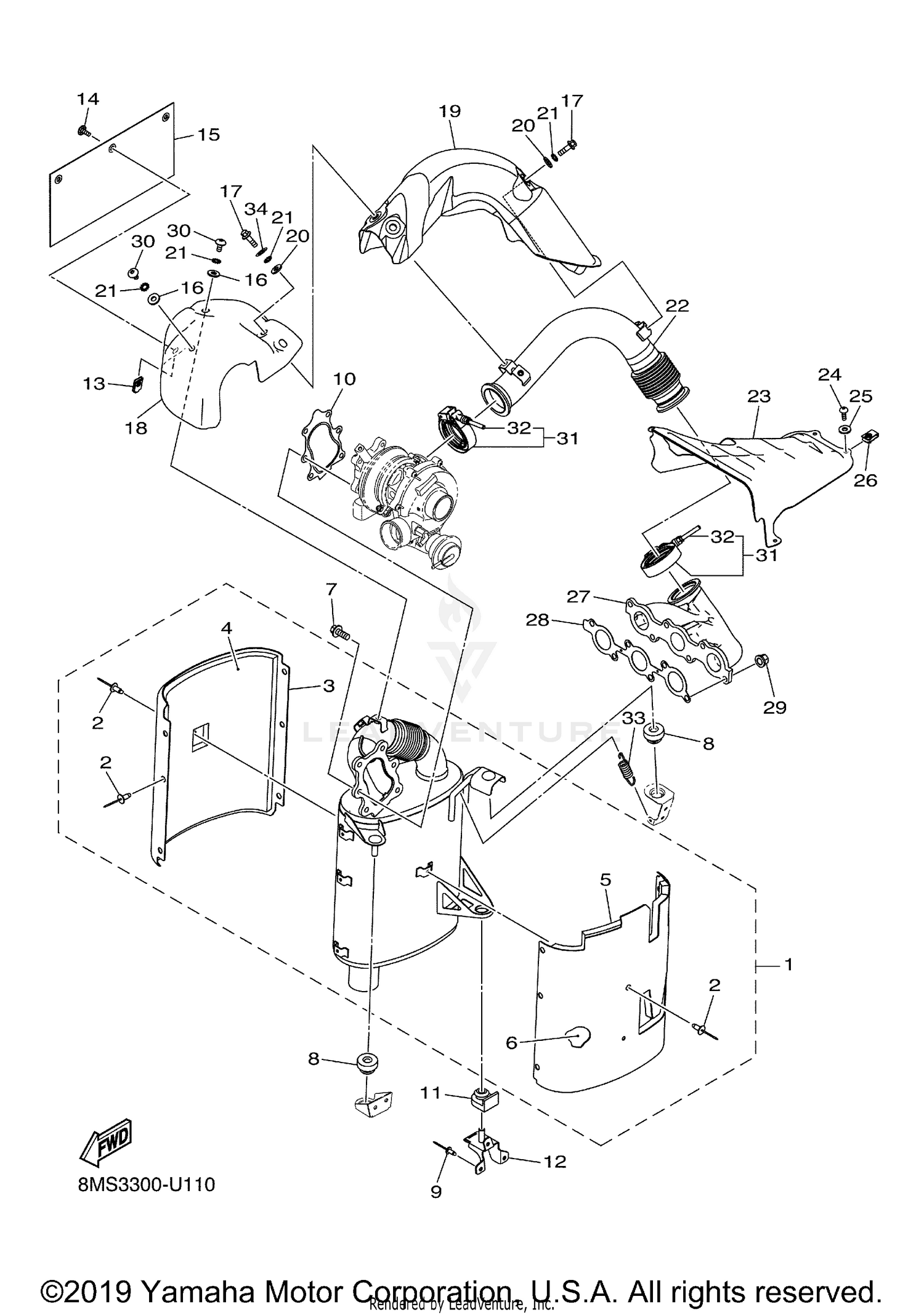

| Ref | Part Number | Description |
|---|
| 1 |
8KC-E4750-01-00 |
SILENCER ASSY Price: $710.99 |
| 2 |
8KC-RA510-00-00 |
RIVET, 1 Price: $1.40 |
| 3 |
8KC-E4728-00-00 |
PROTECTOR, MUFFLER 2 Price: $54.99 |
| 4 |
8KC-E4736-00-00 |
MAT 2 Price: $18.49 |
| 5 |
8KC-E4718-00-00 |
PROTECTOR, MUFFLER 1 Price: $137.99 |
| 6 |
8KC-E4733-00-00 |
MAT 1 Price: $17.49 |
| 7 |
8KC-RA1B6-00-00 |
BOLT, FLANGE 2 Price: $13.99 |
| 8 |
8JP-E5357-00-00 |
GROMMET Price: $17.99 |
| 9 |
8JP-RA520-10-00 |
RIVET, 11 Price: $0.55 |
| 10 |
8KC-E4623-00-00 |
GASKET, EXHAUST PIPE Price: $31.99 |
| 11 |
8JP-E5375-00-00 |
GROMMET Price: $10.49 |
| 12 |
8JP-E4744-00-00 |
BRACKET Price: $14.49 |
| 13 |
8JP-RA349-00-00 |
NUT, CLIP Price: $1.50 |
| 14 |
8JP-RA202-00-00 |
SCREW, TAPPING 1/4-20X0.5 Price: $1.70 |
| 15 |
8KC-F3892-00-00 |
SHIELD, HEAT Price: $93.99 |
| 16 |
8KC-K7525-00-00 |
WASHER 1 Price: $0.60 |
| 17 |
8KC-RA146-00-00 |
BOLT, FLANGE M6X16 Price: $0.75 |
| 18 |
8KC-E4637-00-00 |
EXHAUST COVER ASS'Y Price: $177.99 |
| 19 |
8KJ-14624-01-00 |
COVER, EXHAUST Price: $401.99 |
| 20 |
8JM-RA400-00-00 |
WASHER, PLAIN 1/4 Price: $0.95 |
| 21 |
8JM-RA407-00-00 |
WASHER, TOOTHED LOCK 1/4 Price: $0.35 |
| 22 |
8KC-E4610-00-00 |
EXHAUST PIPE ASSY 1 Price: $319.99 |
| 23 |
8KC-E4627-00-00 |
COVER, EXHAUST Price: $66.99 |
| 24 |
8JP-RA2A0-00-00 |
SCREW, 11 Price: $2.40 |
| 25 |
8JP-RA441-00-00 |
WASHER, 1/4X0.625X0.065 Price: $0.30 |
| 26 |
8JP-RA353-00-00 |
NUT, CLIP M5 Price: $3.60 |
| 27 |
8KJ-41131-00-00 |
MANIFOLD, EXT. 1 Price: $1,052.99 |
| 28 |
8KJ-14613-00-00 |
GASKET, EXHAUST PIPE Price: $34.99 |
| 29 |
90179-09004-00 |
NUT Price: $6.49 |
| 30 |
8KC-RA1C0-00-00 |
BOLT, BUTTON HEAD Price: $1.50 |
| 31 |
8KC-E4715-00-00 |
BAND, MUFFLER Price: $64.99 |
| 32 |
8KC-E22C0-00-00 |
BOLT SET Price: $40.99 |
| 33 |
8JP-RAD14-00-00 |
SPRING, 3 Price: $6.49 |
