| Ref | Part Number | Description |
|---|
| 1 |
BD3-E4101-10-00 |

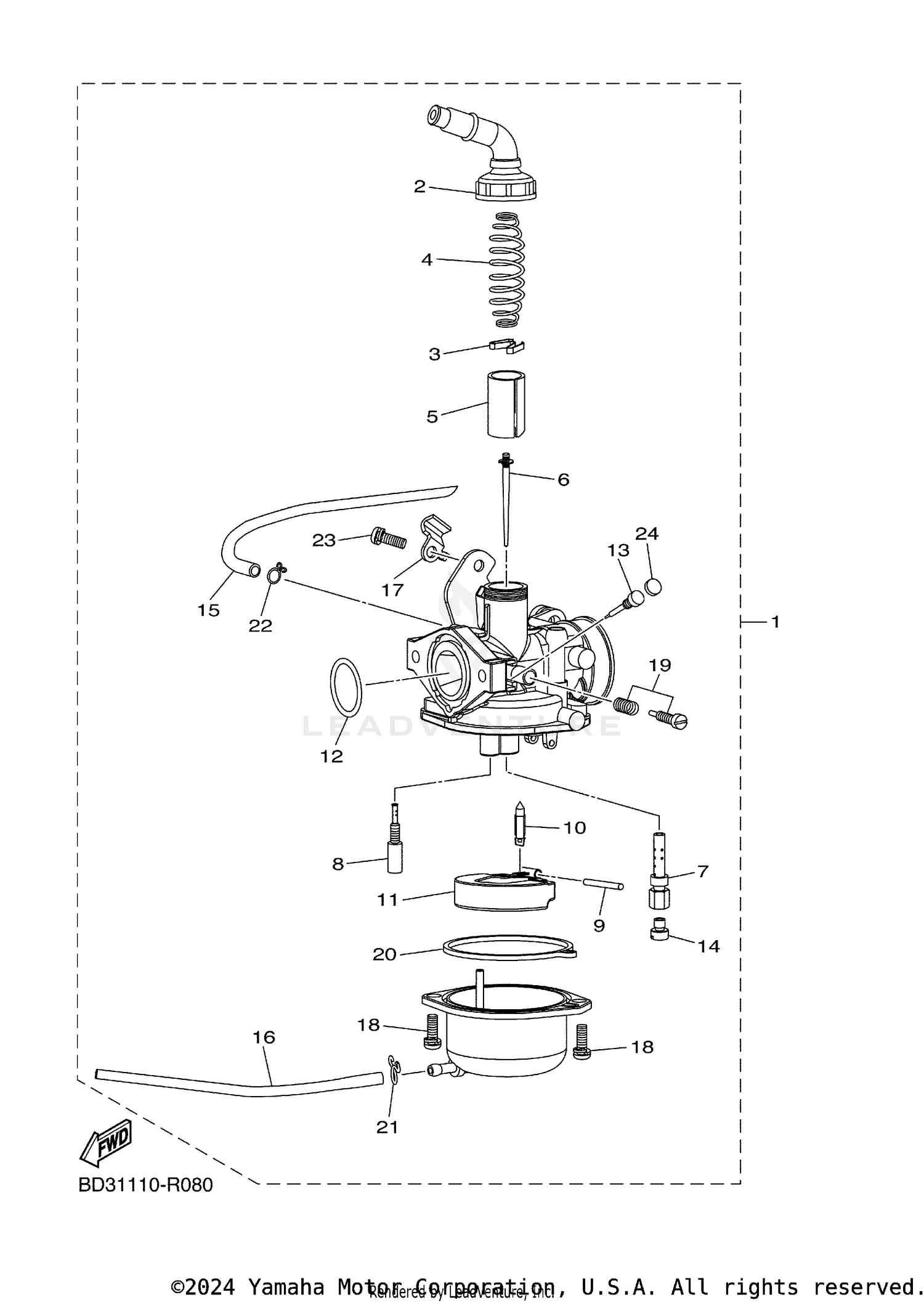

CARBURETOR ASSY 1 Price: $417.99 |
| 2 |
BD3-E439D-10-00 |
CAP, MIXING CHAMBER Price: $77.99 |
| 3 |
BD3-E439G-00-00 |
CLIP 1 Price: $2.40 |
| 4 |
BD3-E4331-00-00 |
SPRING, THROTTLE VALVE Price: $8.49 |
| 5 |
BD3-E3731-00-00 |
VALVE, THROTTLE Price: $76.99 |
| 6 |
BD3-E4150-00-00 |
NEEDLE ASSY Price: $44.99 |
| 7 |
BD3-E414G-00-00 |
PIPE, MAIN BLEED Price: $39.99 |
| 8 |
BD3-E4942-00-00 |
JET, PILOT Price: $33.99 |
| 9 |
BD3-E4386-00-00 |
PIN, FLOAT Price: $5.99 |
| 10 |
BD3-E4392-00-00 |
VALVE, NEEDLE Price: $46.99 |
| 11 |
BD3-E4385-00-00 |
FLOAT Price: $66.99 |
| 12 |
BD3-E4397-00-00 |
O-RING Price: $36.99 |
| 13 |
BD3-E4211-00-00 |
SCREW, PILOT ADJUSTING Price: $20.99 |
| 14 |
BD3-E415A-00-00 |
JET, MAIN Price: $19.49 |
| 15 |
BD3-E4348-00-00 |
PIPE 1 Price: $24.99 |
| 16 |
BD3-E4349-00-00 |
PIPE Price: $14.49 |
| 17 |
BD3-E4581-10-00 |
BRACKET Price: $9.49 |
| 18 |
BD3-E4325-00-00 |
SCREW, PAN HEAD Price: $4.75 |
| 19 |
BD3-E4521-00-00 |
SCREW, ADJUST Price: $18.49 |
| 20 |
BD3-E4384-00-00 |
GASKET, FLOAT CHAMBER Price: $9.49 |
| 21 |
BD3-E439H-10-00 |
CLIP 2 Price: $2.30 |
| 22 |
BD3-E449C-10-00 |
CLIP 1 Price: $2.80 |
| 23 |
BD3-E4216-10-00 |
SCREW Price: $2.95 |
