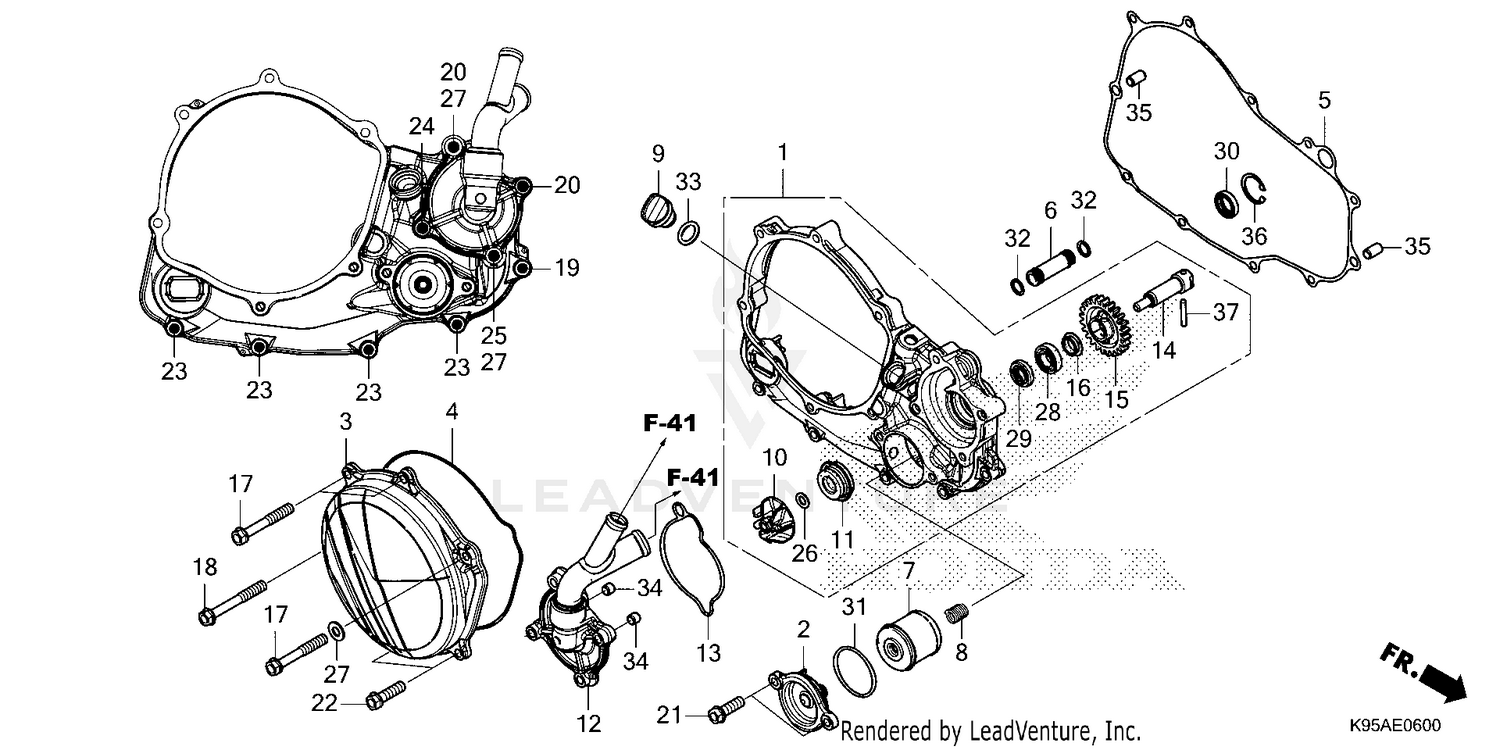

| Ref | Part Number | Description |
|---|
| 1 |
11300-K95-AA0 |
COVER, R. CRANKCASE Price: $406.80 |
| 2 |
11333-MKE-A00 |
COVER, OIL FILTER Price: $50.38 |
| 3 |
11351-K95-AA0 |
COVER, CLUTCH Price: $154.09 |
| 4 |
11352-K95-A20 |
GASKET, CLUTCH COVER Price: $14.65 |
| 5 |
11394-K95-A21 |
GASKET, R. COVER Price: $34.38 |
| 6 |
15104-K95-A20 |
PIPE, OIL PASSAGE Price: $16.35 |
| 7 |
15412-MEN-671 |
FILTER, ENGINE OIL Price: $9.44 |
| 8 |
15414-MEB-670 |
SPRING, OIL FILTER Price: $3.00 |
| 9 |
15611-K95-A20 |
CAP, OIL FILLER Price: $18.58 |
| 10 |
19215-K95-A20 |
IMPELLER, WATER PUMP Price: $52.40 |
| 11 |
19217-KRN-A61 |
SEAL, MECHANICAL Price: $56.22 |
| 12 |
19220-K95-A20 |
COVER, WATER PUMP Price: $95.38 |
| 13 |
19226-K95-A20 |
GASKET, WATER PUMP Price: $6.25 |
| 14 |
19241-K95-A20 |
SHAFT, WATER PUMP Price: $71.82 |
| 15 |
19242-K95-A20 |
GEAR, WATER PUMP DRIVEN (24T) Price: $26.67 |
| 16 |
19243-K95-A20 |
COLLAR Price: $2.98 |
| 17 |
90020-GHB-760 |
BOLT, FLANGE (6X50) Price: $3.31 |
| 18 |
90020-GHB-770 |
BOLT, FLANGE (6X55) Price: $3.40 |
| 19 |
90020-GHB-720 |
BOLT, FLANGE (6X35) Price: $2.84 |
| 20 |
90020-GHB-750 |
BOLT, FLANGE (6X45) Price: $3.09 |
| 21 |
90020-GHB-660 |
BOLT, FLANGE (6X20) Price: $2.65 |
| 22 |
90020-GHB-660 |
BOLT, FLANGE (6X20) Price: $2.65 |
| 23 |
90020-GHB-690 |
BOLT, FLANGE (6X28) Price: $2.65 |
| 24 |
90020-GHB-700 |
BOLT, FLANGE (6X30) Price: $2.71 |
| 25 |
90020-GHB-680 |
BOLT, FLANGE (6X25) Price: $2.58 |
| 26 |
90447-KE1-000 |
WASHER, SEALING (7MM) Price: $3.04 |
| 27 |
90463-ML7-000 |
WASHER, SEALING (6.5MM) Price: $3.53 |
| 28 |
91002-MEN-A31 |
BEARING, BALL (12X24X6) Price: $10.69 |
| 29 |
91201-965-000 |
OIL SEAL (12X22X5) This part replaces 91201-148-003. Price: $5.09 |
| 30 |
91201-HM3-A61 |
OIL SEAL (14X22X5) (ARAI) Price: $3.76 |
| 31 |
91302-K0G-911 |
O-RING (39.8X2.2) This part replaces 91302-PA9-003. Price: $1.15 |
| 32 |
91302-K95-AA1 |
O-RING (9.6X1.9) Price: $2.15 |
| 33 |
91307-KRN-A41 |
D-RING (14X3) Price: $3.55 |
| 34 |
91320-KE1-000 |
PIN, DOWEL (8X7) Price: $2.55 |
| 35 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
| 36 |
94520-24000 |
CIRCLIP (INNER) (24MM) Price: $1.27 |
