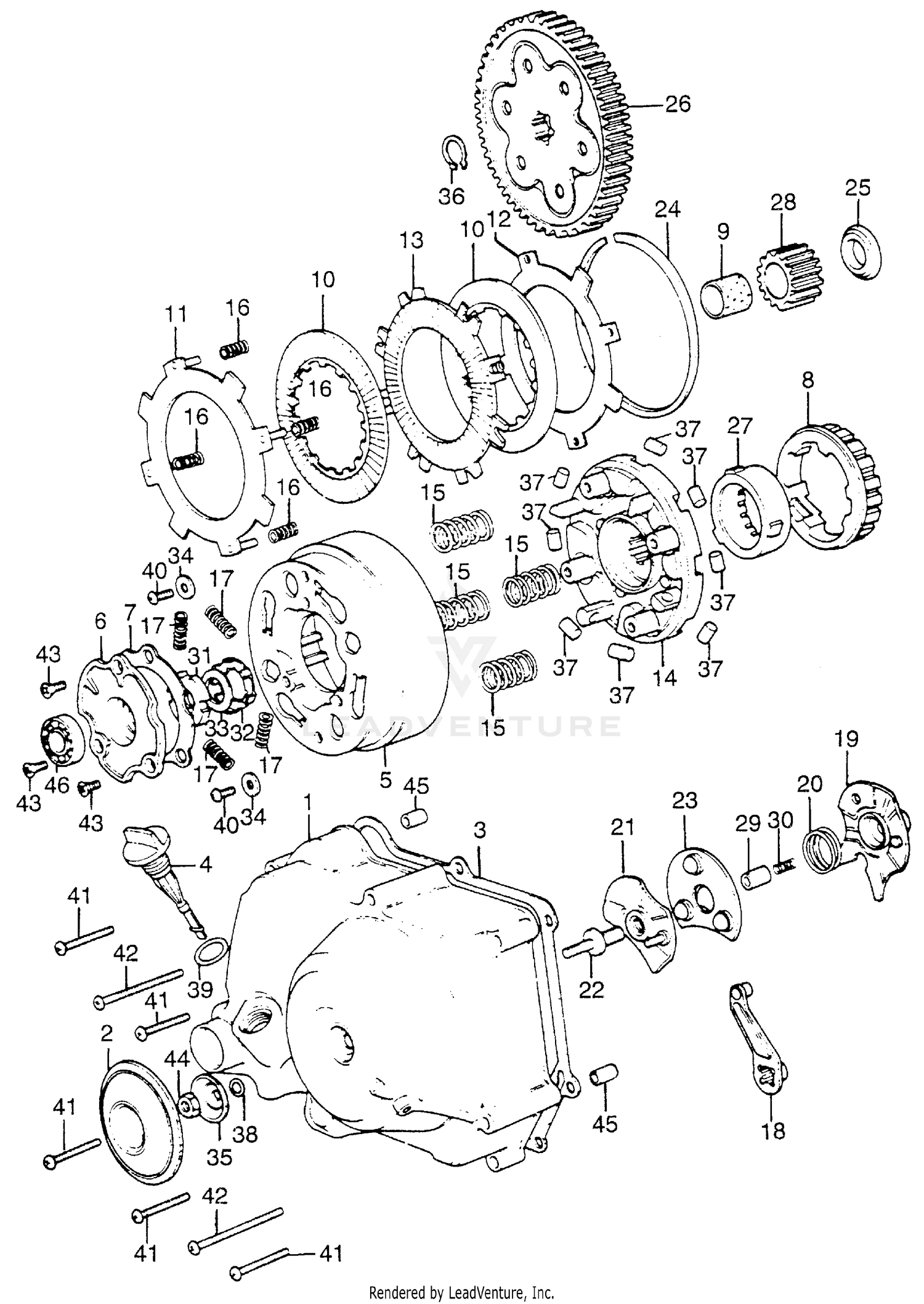

| Ref | Part Number | Description |
|---|
| 1 |
11330-937-000 |
COVER, R. CRANKCASE (NOT AVAILABLE) Price: $276.84 |
| 2 |
11335-102-700 |
PROTECTOR, R. CRANKCASE COVER Price: $14.15 |
| 3 |
11394-GW8-682 |
GASKET, R. CRANKCASE COVER This part replaces 11394-GW8-680. Price: $16.44 |
| 4 |
15650-098-730 |
DIPSTICK, OIL Price: $9.78 |
| 5 |
22101-040-030 |
CLUTCH (OUTER) (NOT AVAILABLE) Price: $39.09 |
| 6 |
22111-040-000 |
COVER, CLUTCH (OUTER) (NOT AVAILABLE) Price: $9.23 |
| 7 |
22119-040-010 |
GASKET, CLUTCH COVER (OUTER) This part replaces 22119-040-000. Price: $4.27 |
| 8 |
22120-040-030 |
CENTER, CLUTCH (17T) Price: $82.40 |
| 9 |
22131-035-030 |
GUIDE, CLUTCH CENTER This part replaces 22131-035-020. Price: $24.71 |
| 10 |
22201-GW8-681 |
DISK A, CLUTCH FRICTION Price: $12.18 |
| 11 |
22310-GB0-910 |
PLATE A, CLUTCH Price: $17.67 |
| 12 |
22321-046-020 |
PLATE B, CLUTCH This part replaces 22321-041-000. Price: $11.91 |
| 13 |
22331-GW8-681 |
DISK B, CLUTCH FRICTION Price: $12.18 |
| 14 |
22351-086-020 |
PLATE, DRIVE This part replaces 22351-086-010. Price: $56.75 |
| 15 |
22401-092-010 |
SPRING, CLUTCH Price: $4.75 |
| 16 |
22411-092-000 |
SPRING, CLUTCH FREE Price: $6.29 |
| 17 |
22421-040-000 |
SPRING, CLUTCH DAMPER Price: $2.33 |
| 18 |
22811-040-020 |
LEVER, CLUTCH Price: $36.95 |
| 19 |
22820-918-020 |
PLATE, CLUTCH CAM This part replaces 22820-918-000. Price: $24.74 |
| 20 |
22825-046-000 |
SPRING, CAM PLATE SIDE Price: $2.49 |
| 21 |
22830-041-000 |
PLATE, CLUTCH LIFTER Price: $14.22 |
| 22 |
22846-040-010 |
BOLT, CLUTCH ADJUSTING Price: $7.91 |
| 23 |
22860-046-000 |
RETAINER, CLUTCH BALL This part replaces 22860-041-000. Price: $8.84 |
| 24 |
22901-001-000 |
SET-RING (101.5MM) Price: $4.58 |
| 25 |
22911-GB4-680 |
COLLAR (17MM) Price: $7.69 |
| 26 |
23110-086-030 |
GEAR, PRIMARY DRIVEN (69T) This part replaces 23110-086-020. Price: $152.13 |
| 27 |
23112-086-020 |
OUTER, DRIVE GEAR (17T) Price: $19.65 |
| 28 |
23120-086-020 |
GEAR, PRIMARY DRIVE (17T) Price: $55.36 |
| 29 |
25551-GEL-A80 |
THROUGH, OIL This part replaces 25551-918-000. Price: $7.34 |
| 30 |
25555-065-000 |
SPRING, OIL THROUGH Price: $1.95 |
| 31 |
90231-087-010 |
NUT, LOCK (14MM) This part replaces 90231-087-000. Price: $4.78 |
| 32 |
90431-086-000 |
WASHER, LOCK (14MM) Price: $3.80 |
| 33 |
90432-086-000 |
WASHER B, LOCK Price: $5.56 |
| 34 |
90483-041-000 |
WASHER, STOPPER This part replaces 90483-040-000. Price: $2.20 |
| 35 |
90485-102-701 |
WASHER, CLUTCH ADJUSTER This part replaces 90485-102-700. Price: $5.58 |
| 36 |
90601-001-000 |
CIRCLIP (OUTER) (17MM) Price: $1.65 |
| 37 |
91101-039-000 |
ROLLER (8X10) Price: $3.38 |
| 38 |
91306-HB3-003 |
O-RING (8X1.7) (ARAI) This part replaces 91303-001-000. Price: $2.16 |
| 39 |
91307-035-000 |
O-RING (18X3) Price: $3.40 |
| 39 |
91307-KF0-003 |
O-RING (18X3) (ARAI) Price: $3.35 |
| 40 |
93500-05008-0A |
BOLT, FLANGE (8X62) Price: $0.92 |
| 41 |
93500-06040-0A |
SCREW, PAN (6X40) This part replaces 93500-06038. Price: $1.48 |
| 42 |
93500-06065-0A |
SCREW, PAN (6X65) This part replaces 93500-06065. Price: $1.68 |
| 43 |
93600-05010-0A |
SCREW, FLAT (5X10) Price: $0.82 |
| 44 |
94030-08000 |
NUT, HEX. (8MM) Price: $1.12 |
| 45 |
94301-08120 |
PIN A, DOWEL (8X12) Price: $2.40 |
| 46 |
96100-60000-00 |
BEARING, RADIAL BALL (6000) This part replaces 96100-60000. Price: $10.20 |
