| Ref | Part Number | Description |
|---|
| 1 |
649618 |
OBS - COVER PLATE,DOOR,INNER Price: $13.86 |
| 2 |
646371 |
BOLT,PHD,MAT PT,M8-1.25 X 20 Price: $1.58 |
| 3 |
649696 |
BARREL CLIP, M8X1.25 Price: $1.75 |
| 4 |
645956 |
FLANGED HEX NUT, M8-1.25 Price: $0.35 |
| 5 |
647318G01 |
LATCH,DOOR,LH Price: $51.15 |
| 6 |
647318G02 |
LATCH,DOOR,RH Price: $40.61 |
| 7 |
650084 |
BOLT,BHD,TORX,M6-1X20 PATCHLK Price: $1.84 |
| 10 |
664252G1390 |
CASTING,COVER,DOOR LATCH,LH,BLACK This part replaces 647311G01. Price: $24.26 |
| 11 |
664252G2390 |
CASTING,COVER,DOOR LATCH,RH,BLACK This part replaces 647311G02. Price: $24.26 |
| 15 |
649300G01 |
LEVER ASSEMBLY,DOOR,LH Price: $45.75 |
| 16 |
649300G02 |
LEVER ASSEMBLY,DOOR,RH Price: $47.12 |
| 17 |
648236 |
GRIP,DOOR ACTUATOR Price: $6.71 |
| 18 |
647301 |
PUSH ROD,DOOR Price: $15.02 |
| 19 |
656804 |
CLIP,PUSH ROD Price: $0.99 |
| 22 |
646166 |
BUMPER STOP,RUBBER,FLANGE Price: $0.35 |

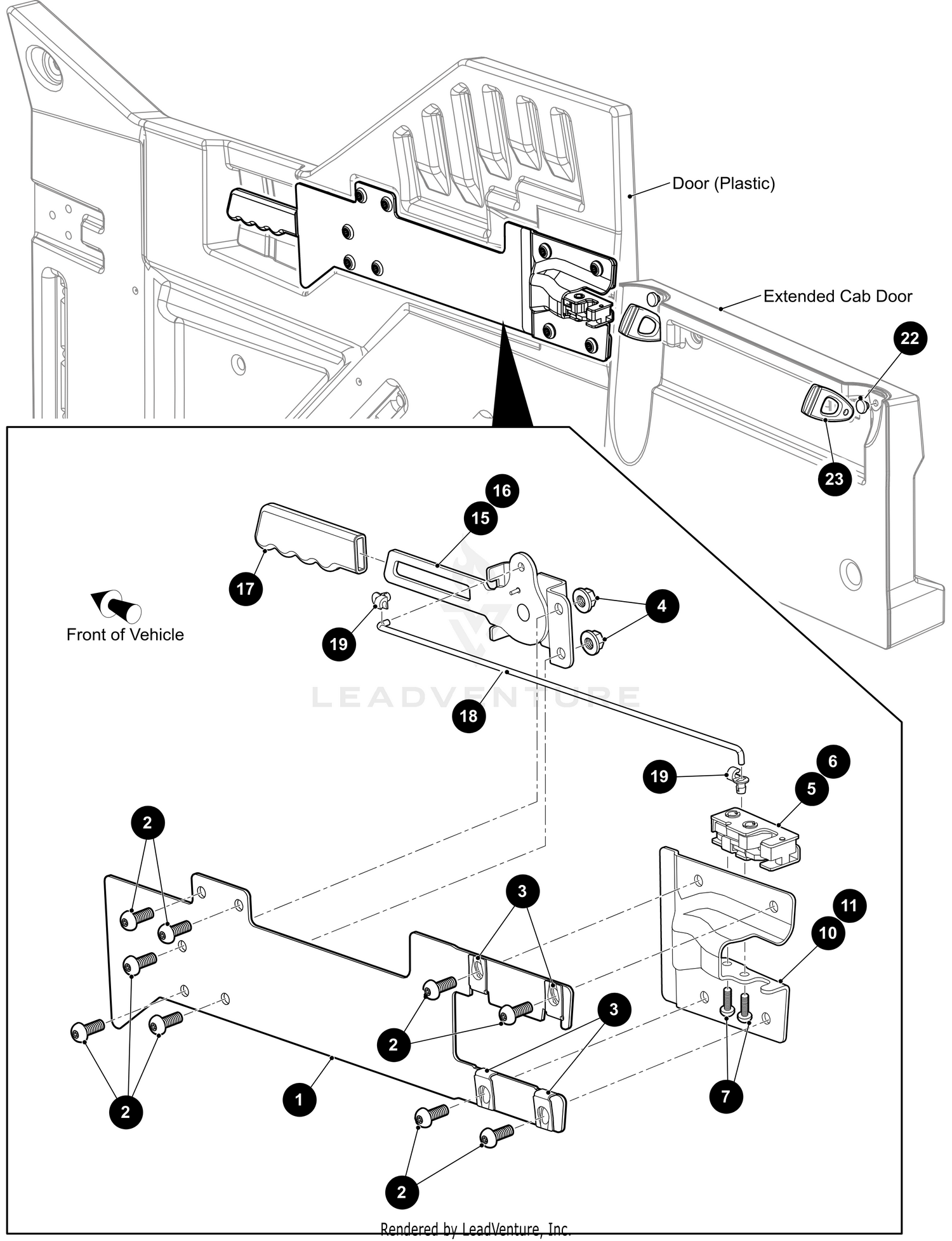

![DOOR LATCH [302390]](https://cdn.datamanager.arinet.com/image/ARCT/6c6bd0c6-3d9a-4f6d-aec5-5146b422f0cc/Max)
