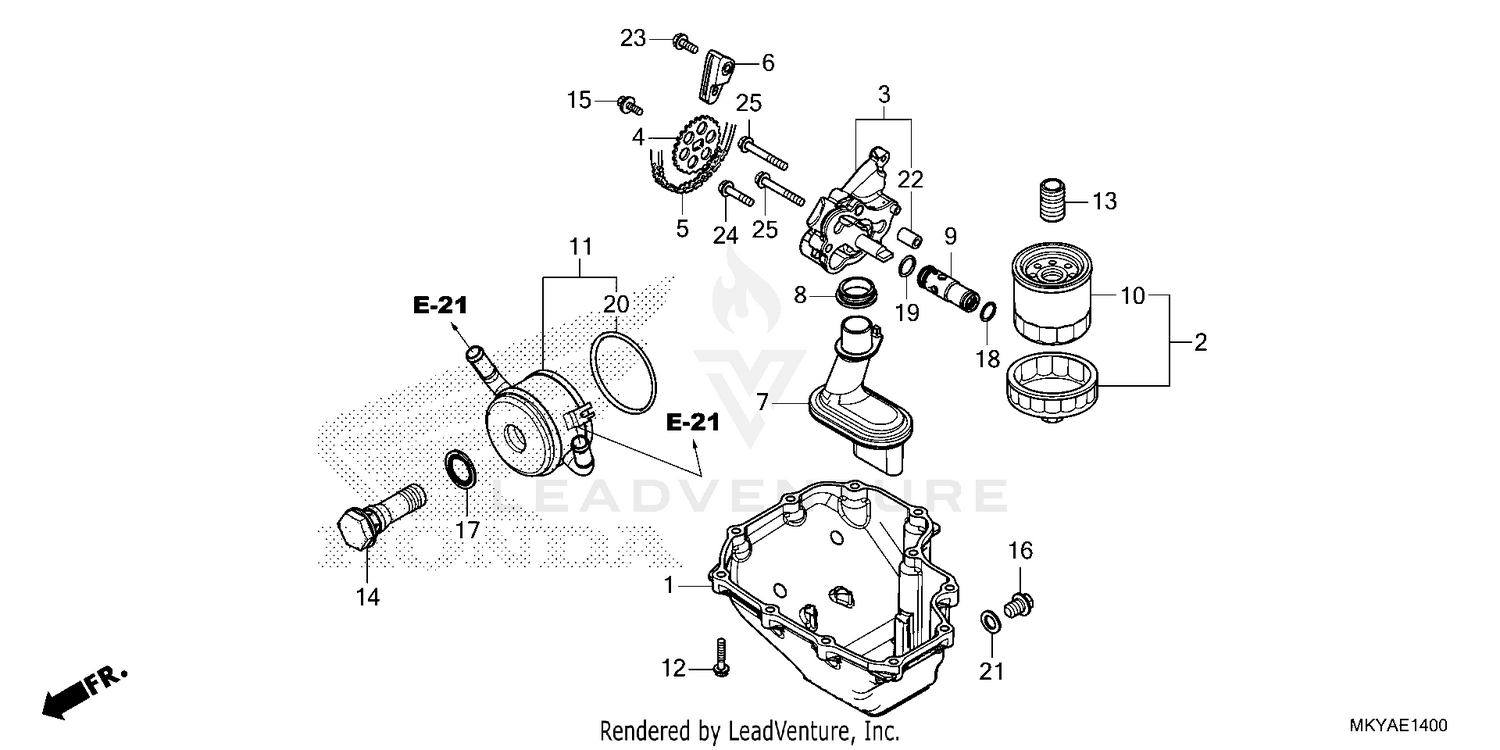

| Ref | Part Number | Description |
|---|
| 1 |
11210-MJE-DB0 |
PAN, OIL Price: $100.69 |
| 3 |
15100-MJE-D00 |
PUMP ASSY., OIL Price: $51.27 |
| 4 |
15134-MV9-670 |
SPROCKET, OIL PUMP DRIVEN (26T) Price: $30.89 |
| 5 |
15141-MKY-D11 |
CHAIN, OIL PUMP (RK 25H-70LE) Price: $11.76 |
| 6 |
15147-MGE-D00 |
GUIDE B, OIL PUMP CHAIN Price: $19.53 |
| 7 |
15150-MJE-D00 |
STRAINER, OIL Price: $16.93 |
| 8 |
15154-MAT-000 |
GASKET, OIL STRAINER Price: $7.73 |
| 9 |
15220-MJE-D02 |
VALVE ASSY., RELIEF Price: $71.78 |
| 10 |
15410-MFJ-D02 |
FILTER, OIL (WAKO FILTER) Price: $18.63 |
| 11 |
15700-MJE-D01 |
COOLER, OIL Price: $268.36 |
| 12 |
90010-MGZ-J00 |
BOLT, FLANGE (6X28) Price: $0.55 |
| 13 |
90019-MGZ-J00 |
BOSS, OIL FILTER Price: $2.58 |
| 14 |
90019-MJE-D00 |
BOLT, OIL COOLER Price: $23.27 |
| 15 |
90021-MGZ-J00 |
BOLT-WASHER (6X12) Price: $4.69 |
| 16 |
90131-896-650 |
BOLT, DRAIN PLUG (12X15) This part replaces 90131-883-000. Price: $2.76 |
| 17 |
90402-MFJ-D01 |
WASHER, SEALING (34.5MM) Price: $9.07 |
| 19 |
91313-MG7-004 |
O-RING (14.8X2.2) This part replaces 91313-MB0-003. Price: $4.62 |
| 20 |
91354-MEJ-641 |
O-RING, OIL COOLER Price: $4.58 |
| 21 |
94109-12000 |
WASHER, DRAIN PLUG (12MM) Price: $1.28 |
| 22 |
94301-08140 |
PIN, DOWEL (8X14) (Honda Code 0069310) Price: $2.35 |
| 23 |
95701-06016-00 |
BOLT, FLANGE (6X16) (Honda Code 2410892) Price: $1.70 |
| 24 |
95701-06028-00 |
BOLT, FLANGE (6X28) Price: $1.90 |
| 25 |
95701-06045-07 |
BOLT, FLANGE (6X45) This part replaces 95701-06045-00. Price: $2.27 |
