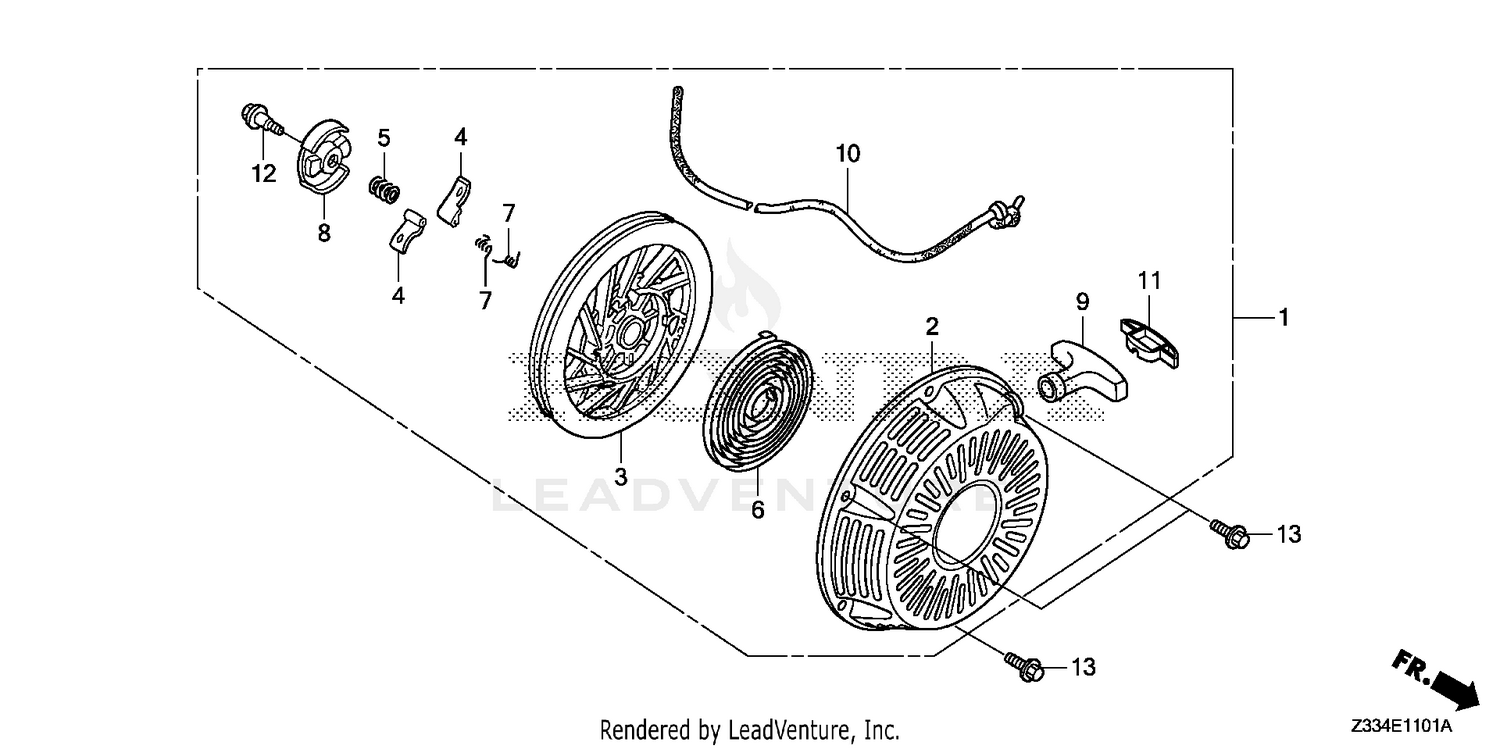

| Ref | Part Number | Description |
|---|
| 1 |
28400-Z1D-315ZA |
STARTER ASSY., RECOIL *NH1* (COO)(FOR U.S.A.) (BLACK) Price: $35.40 |
| 2 |
28410-ZE2-W01ZB |
CASE, RECOIL STARTER *NH1* (BLACK) Price: $158.18 |
| 3 |
28421-ZE2-W01 |
PULLEY, RECOIL STARTER Price: $42.32 |
| 4 |
28422-ZE2-W01 |
RATCHET, STARTER (Honda Code 3678877). Price: $7.54 |
| 5 |
28441-ZE2-W01 |
SPRING, FRICTION (Honda Code 3678885). Price: $6.06 |
| 6 |
28442-ZE2-W01 |
SPRING, STARTER RETURN (Honda Code 3678893). Price: $18.54 |
| 7 |
28443-ZE2-W01 |
SPRING, RATCHET (Honda Code 3678901). Price: $5.28 |
| 8 |
28444-ZE2-W01 |
RETAINER, SPRING (Honda Code 3678919). Price: $14.56 |
| 9 |
28461-Z5T-003 |
SEE PART DETAILS - PRI; GRIP, STARTER Price: $10.52 |
| 10 |
28462-Z1C-801 |
ROPE, RECOIL STARTER Price: $13.94 |
| 11 |
28463-Z5T-013 |
SEE PART DETAILS - PRI; GRIP, REINFORCEMENT Price: $3.32 |
| 12 |
90004-ZE2-W01 |
SCREW, CENTER (Honda Code 3679024). Price: $4.08 |
