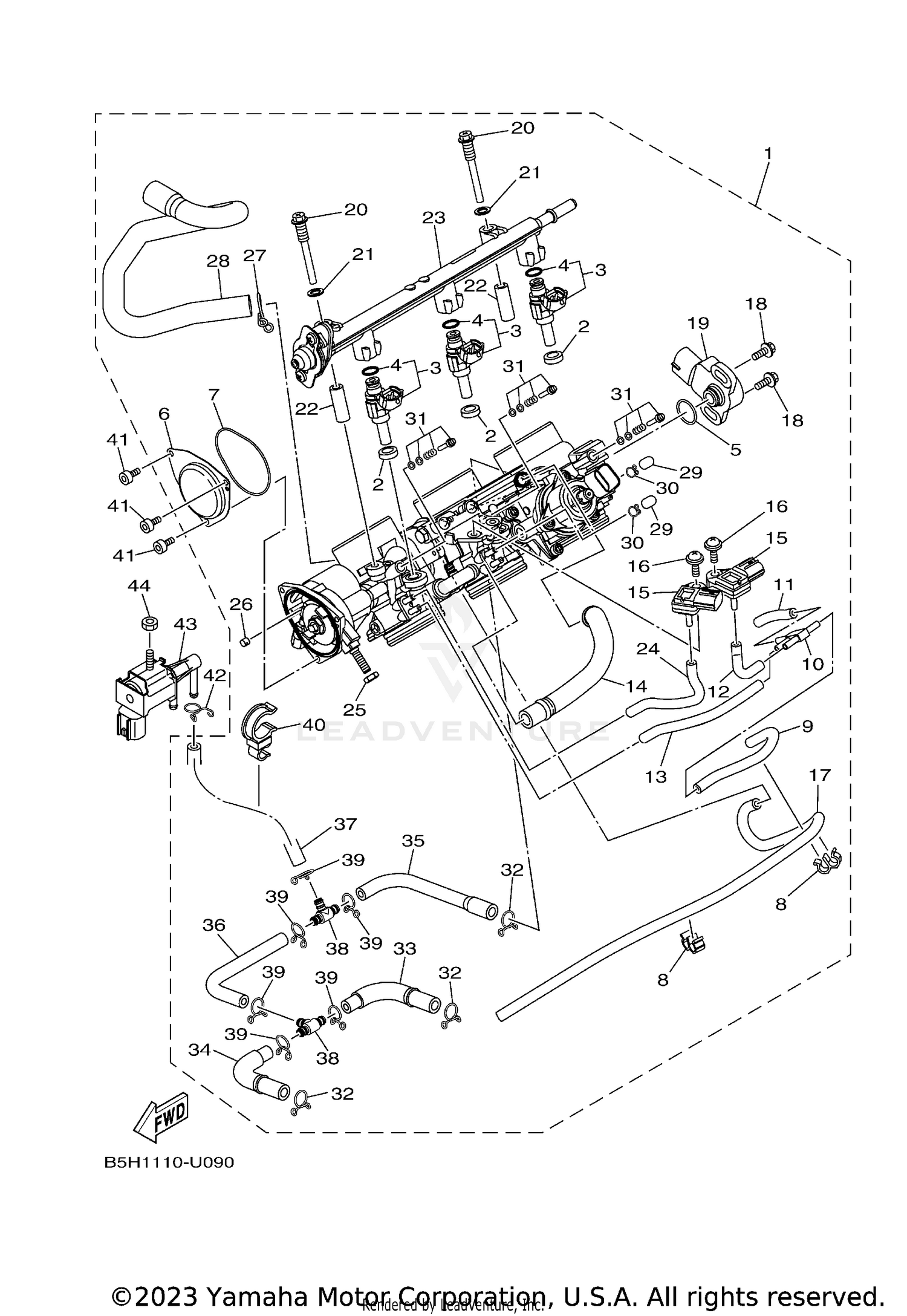

| Ref | Part Number | Description |
|---|
| 1 |
B5H-13750-02-00 |
THROTTLE BODY ASSY This part replaces B5H-13750-00-00. Price: $1,397.99 |
| 2 |
8FP-13556-10-00 |
GASKET, MANIFOLD Price: $7.49 |
| 3 |
2HC-13761-00-00 |
INJECTOR Price: $127.99 |
| 4 |
68V-1416A-00-00 |
O-RING Price: $13.75 |
| 5 |
5YP-14562-00-00 |
O-RING Price: $8.49 |
| 6 |
5UG-14293-00-00 |
COVER 1 Price: $14.49 |
| 7 |
5LP-14147-00-00 |
O-RING Price: $12.99 |
| 8 |
69J-2417H-00-00 |
CLAMP 1 Price: $13.50 |
| 9 |
2HC-13894-00-00 |
HOSE, AIR 4 Price: $16.49 |
| 10 |
5PW-1410F-00-00 |
CONNECTOR Price: $21.99 |
| 11 |
8FP-14349-30-00 |
PIPE Price: $6.49 |
| 12 |
8HF-13892-00-00 |
HOSE, AIR 2 Price: $47.99 |
| 13 |
8GL-13893-00-00 |
HOSE, AIR 3 Price: $8.49 |
| 14 |
8GL-13895-00-00 |
HOSE, AIR Price: $32.99 |
| 15 |
1WS-82380-00-00 |
SENSOR, PRESSURE Price: $209.99 |
| 16 |
2C0-14216-00-00 |
SCREW Price: $4.20 |
| 17 |
18P-13543-00-00 |
HOSE, AIR Price: $34.99 |
| 18 |
8CC-14216-10-00 |
SCREW Price: $8.99 |
| 19 |
3B4-85885-01-00 |
THROTTLE SENSOR AS This part replaces 3B4-85885-00-00. Price: $78.99 |
| 20 |
8GL-13573-00-00 |
BOLT 1 Price: $16.49 |
| 21 |
8GL-13571-00-00 |
WASHER Price: $4.40 |
| 22 |
8GL-14534-00-00 |
COLLAR Price: $10.49 |
| 23 |
2HC-13930-00-00 |
PIPE INLET ASSEMBLY Price: $241.99 |
| 24 |
5PW-14349-00-00 |
PIPE Price: $12.99 |
| 25 |
1S3-14161-00-00 |
NUT, CABLE ADJUSTING Price: $8.49 |
| 26 |
1UY-14155-00-00 |
GUIDE, CABLE END Price: $19.99 |
| 27 |
90467-150A2-00 |
CLIP Price: $8.49 |
| 28 |
2HC-13545-00-00 |
HOSE 1 Price: $18.99 |
| 29 |
895-14169-00-00 |
CAP Price: $5.99 |
| 30 |
8A7-14139-00-00 |
CLIP, PIPE Price: $9.49 |
| 31 |
8GL-14503-00-00 |
ADJUST SCREW SET Price: $16.49 |
| 32 |
90467-11106-00 |
CLIP Price: $4.05 |
| 33 |
B5H-14419-00-00 |
PIPE Price: $16.99 |
| 34 |
B5H-14465-00-00 |
PIPE Price: $16.49 |
| 35 |
B5H-14466-00-00 |
PIPE Price: $19.49 |
| 36 |
B5H-1443J-00-00 |
PIPE Price: $17.49 |
| 37 |
B5H-1444J-00-00 |
PIPE Price: $17.49 |
| 38 |
90413-06031-00 |
WAY 3 Price: $9.49 |
| 39 |
90467-100A1-00 |
CLIP This part replaces 90467-10041-00. Price: $8.49 |
| 40 |
90464-20025-00 |
CLAMP Price: $2.40 |
| 41 |
91312-04006-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.20 |
| 42 |
90467-100A1-00 |
CLIP This part replaces 90467-10041-00. Price: $8.49 |
| 43 |
BG4-86120-00-00 |
SOLENOID VALVE ASSY Price: $52.99 |
