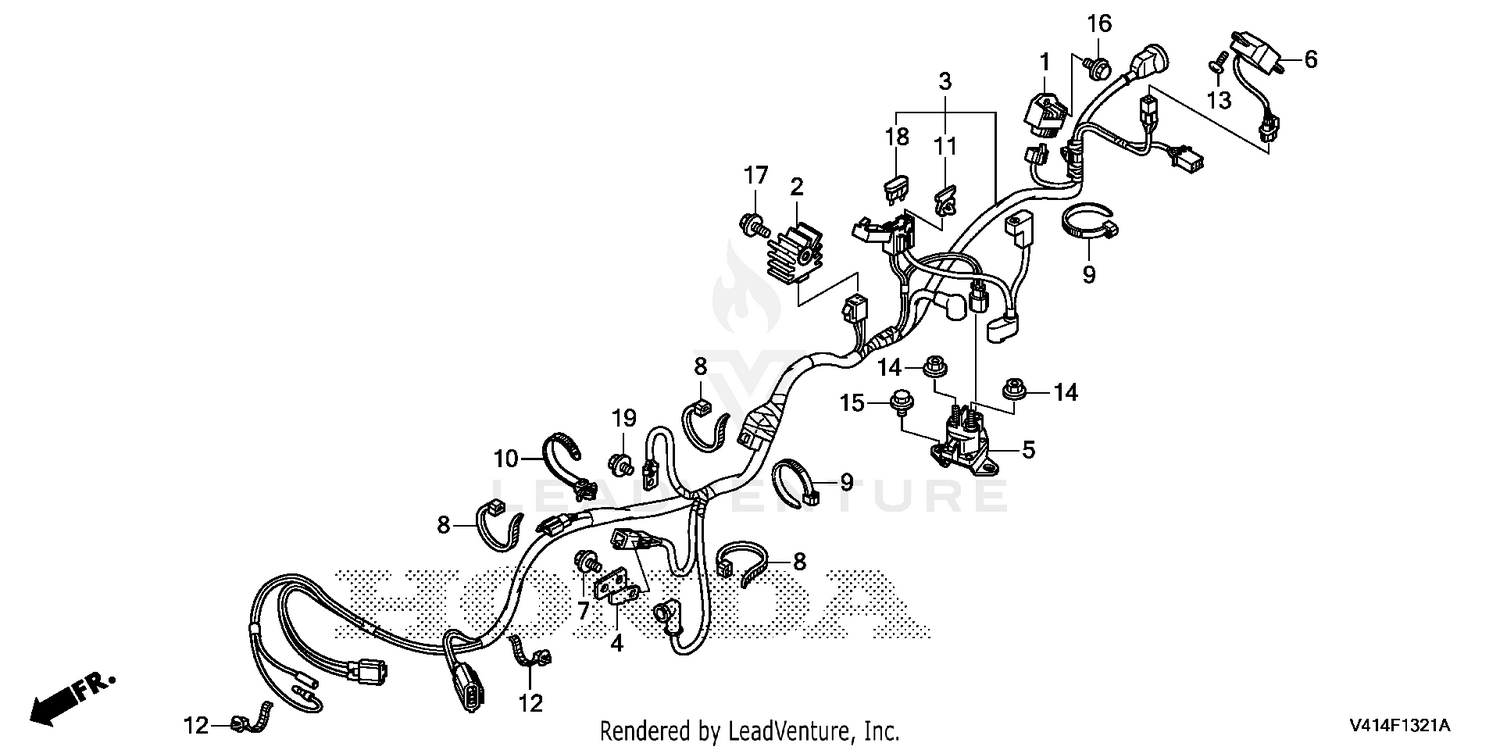

| Ref | Part Number | Description |
|---|
| 1 |
31715-V45-A01 |
RECTIFIER Price: $30.92 |
| 2 |
31750-735-013 |
SEE PART DETAILS - PRI; RECTIFIER, REGULATOR (5A) Price: $37.88 |
| 3 |
32100-V45-A30 |
WIRE HARNESS ASSY., MAIN Price: $82.62 |
| 4 |
35806-V45-A20 |
BASE, CLIP Price: $4.10 |
| 5 |
35850-V45-A11 |
SWITCH ASSY., STARTER MAGNETIC Price: $17.80 |
| 7 |
90013-883-000 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845). Price: $1.94 |
| 8 |
90650-KV6-003 |
BAND, WIRE (95MM) Price: $4.30 |
| 9 |
90651-KV6-003 |
BAND, WIRE (165MM) (BLACK) Price: $4.38 |
| 10 |
90672-SA0-003 |
STRAP, CABLE (118MM) *NH1L* (Honda Code 1170653). (BLACK) Price: $9.42 |
| 11 |
91533-SDA-003 |
CLIP, CONNECTOR (BEIGE) Price: $3.18 |
| 12 |
91541-S0A-003 |
CLIP, HARNESS BAND (145MM) (BLACK) Price: $4.98 |
| 14 |
94050-06080 |
SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689). Price: $0.82 |
| 15 |
95701-06010-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876). Price: $1.58 |
| 16 |
95701-06012-00 |
SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277. Price: $2.04 |
| 17 |
95701-06030-08 |
BOLT, FLANGE (6X30) Price: $2.72 |
| 18 |
98200-40500 |
FUSE, MINI (5A) Price: $1.52 |
