| Ref | Part Number | Description |
|---|
| 2 |
8060-682 |
Rivet Price: $0.24 |
| 3 |
0605-945 |
Insert, Handlebar Price: $3.75 |
| 4 |
4606-945 |
Grip Price: $19.35 |
| 5 |
1623-754 |
Washer, Backing Price: $1.80 |
| 6 |
1623-618 |
Screw, Self-Tapping Price: $7.23 |
| 13 |
0609-795 |
Lever, Throttle Price: $49.95 |
| 14 |
0617-248 |
Pad, Insulator Price: $2.09 |
| 15 |
0609-827 |
Element, Thumbwarmer Price: $77.95 |
| 16 |
0609-595 |
Clip, Retaining Price: $2.66 |
| 17 |
0609-884 |
Control, Throttle - Front Price: $98.95 |
| 18 |
0609-792 |
Cover, Connector Price: $2.05 |
| 19 |
0609-793 |
Screw, Machine Price: $1.29 |
| 20 |
0609-791 |
Screw, Self-Tapping Price: $0.24 |
| 21 |
0687-235 |
Cable, Throttle Price: $60.95 |
| 22 |
0609-948 |
Element, Handwarmer - Right Price: $91.95 |
| 22 |
0609-949 |
Element, Handwarmer - Left Price: $91.95 |
| 23 |
0609-929 |
Control, Dimmer - Front Price: $100.95 |
| 24 |
0609-883 |
Control, Dimmer - Rear Price: $14.49 |
| 25 |
1686-637 |
Harness, Handlebar Price: $135.95 |
| 26 |
0123-788 |
Tie, Cable - 8 in Price: $0.23 |
| 26 |
0123-811 |
Tie, Cable - 4 in. Price: $0.35 |

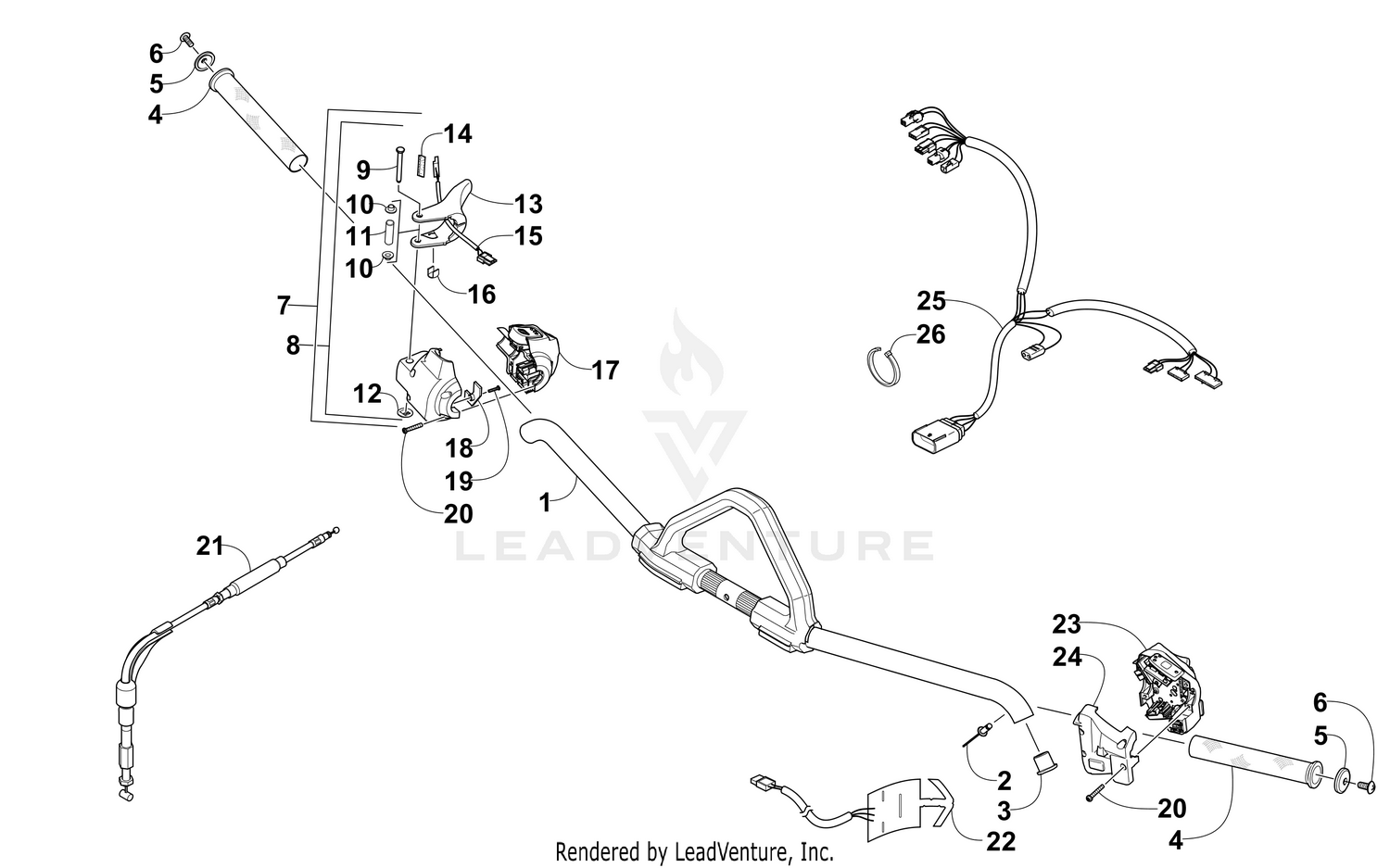

![HANDLEBAR AND CONTROLS [103616]](https://cdn.datamanager.arinet.com/image/ARCT/efefc90a-9ee6-4dc2-a06b-299de39ddda3/Max)
