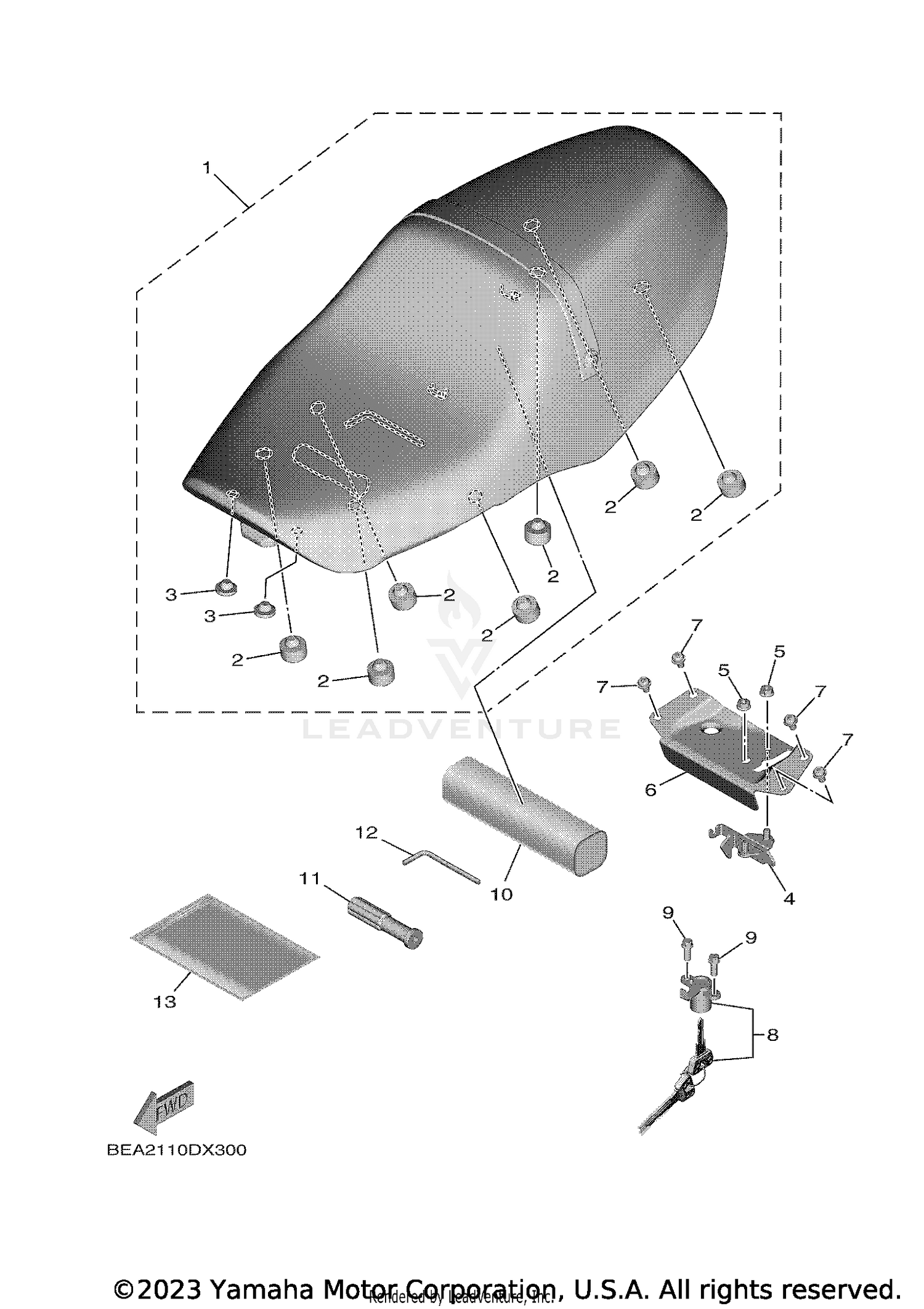

SEAT
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 5JW-24741-00-00 | PAD, SEAT Price: $5.99 |
| 3 | 3L7-24724-00-00 | DAMPER, SEAT Price: $4.05 |
| 4 | B90-24780-00-00 | SEAT LOCK ASSY Price: $33.99 |
| 5 | 95702-06500-00 | NUT, WITH WASHER Price: $2.60 |
| 6 | BEA-2478X-00-00 | BRACKET, SEAT LOCK Price: $38.99 |
| 7 | 90110-06172-00 | BOLT, HEXAGON SOCKET HEAD Price: $10.49 |
| 8 | 1RC-W2470-00-00 | ROTOR SET Price: $79.99 |
| 9 | 95E32-06016-00 | BOLT, FLANGE DEEP RECESS Price: $0.65 |
| 10 | BEA-28100-00-00 | TOOL KIT Price: $46.99 |
| 11 | 2H7-28151-00-00 | GRIP, DRIVER Price: $7.49 |
| 12 | 14B-28164-00-00 | WRENCH, HEXAGON 8 Price: $4.75 |
