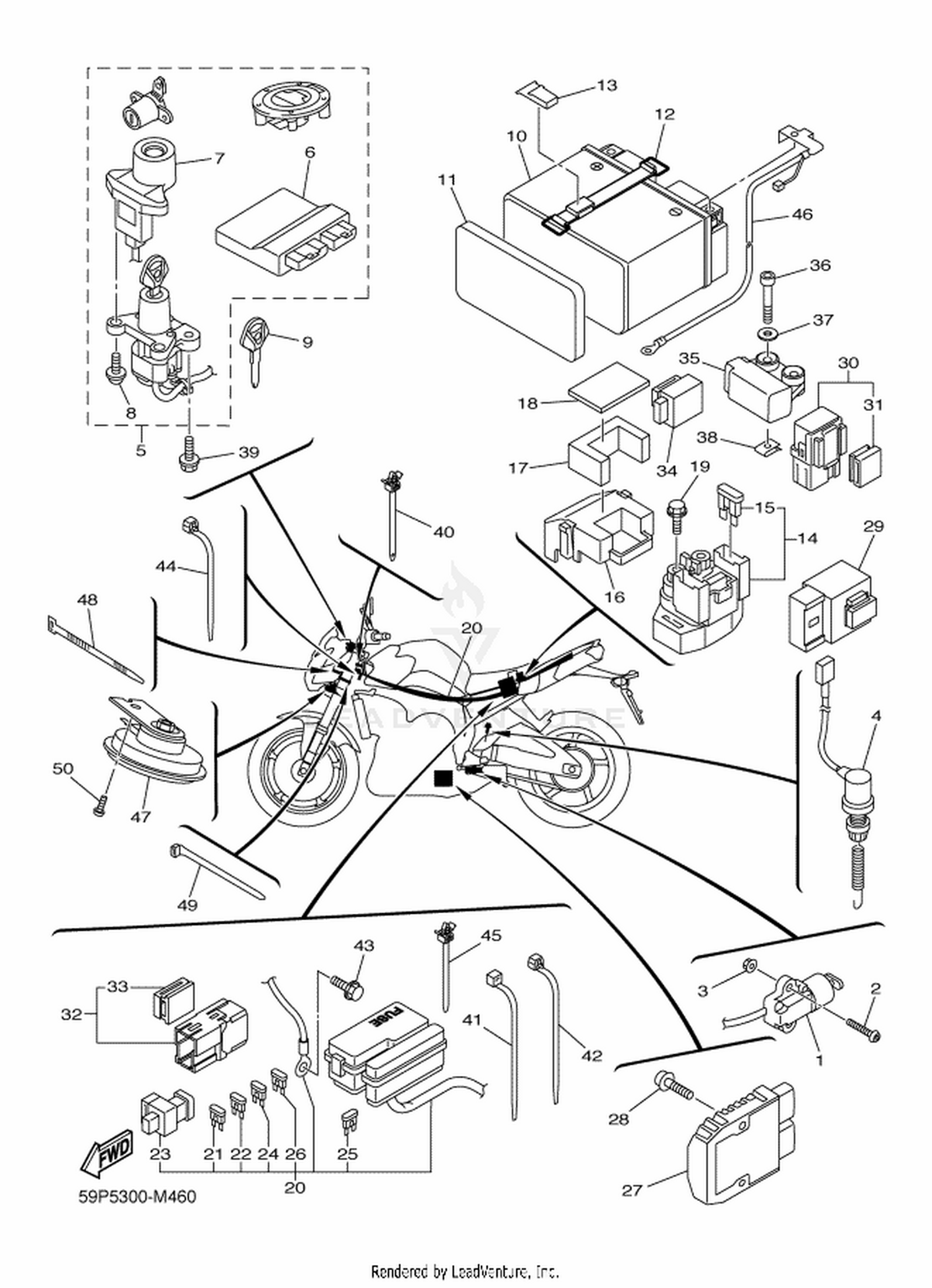

46 ELECTRICAL 2
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 23P-82566-60 | SWITCH, SIDE STAND Price: Call Us |
| 2 | 92012-05030 | BOLT, BUTTON HEAD Price: Call Us |
| 3 | 95602-05200 | NUT, SELF-LOCKING Price: Call Us |
| 4 | 39P-82530-00 | STOP SWITCH ASSY Price: Call Us |
| 5 | 59P-W8250-20 | MAIN SW. IMMOBILIZER KIT Price: Call Us |
| 10 | 5VY-82100-00 | BATTERY ASSY (YUASA YTZ10S) Price: Call Us |
| 11 | 39P-8246K-00 | SPACER Price: Call Us |
| 12 | 2D1-82131-00 | BAND, BATTERY Price: Call Us |
| 13 | 5YU-2162A-00 | HOOK Price: Call Us |
| 14 | 2C0-81940-00 | STARTER RELAY ASSY Price: Call Us |
| 16 | 5SL-82119-10 | COVER, LEAD WIRE Price: Call Us |
| 17 | 39P-82176-00 | DAMPER Price: Call Us |
| 18 | 39P-82157-00 | DAMPER Price: Call Us |
| 19 | 95022-06008 | BOLT, FLANGE Price: Call Us |
| 20 | 59P-82590-10 | WIRE HARNESS ASSY Price: Call Us |
| 24 | 5JJ-82151-20 | FUSE (20A-BL) Price: Call Us |
| 27 | 1D7-81960-01 | RECTIFIER REGULATOR ASSY Price: Call Us |
| 28 | 90109-06015 | BOLT Price: Call Us |
| 29 | 5VK-81950-40 | RELAY ASSY Price: Call Us |
| 30 | 5JJ-81950-20 | RELAY ASSY Price: Call Us |
| 32 | 5JJ-81950-20 | RELAY ASSY Price: Call Us |
| 34 | 4GY-83350-00 | FLASHER RELAY ASSY Price: Call Us |
| 35 | 5PS-82576-01 | LEAN ANGLE SENSOR Price: Call Us |
| 36 | 91312-04025 | BOLT Price: Call Us |
| 37 | 90201-04030 | WASHER, PLATE Price: Call Us |
| 38 | 90183-04039 | NUT, SPRING Price: Call Us |
| 39 | 90109-08195 | BOLT Price: Call Us |
| 40 | 90464-12036 | CLAMP Price: Call Us |
| 41 | 90464-13073 | CLAMP Price: Call Us |
| 42 | 90464-15195 | CLAMP Price: Call Us |
| 43 | 91380-06010 | BOLT Price: Call Us |
| 44 | 90464-13077 | CLAMP Price: Call Us |
| 45 | 90464-14006 | CLAMP Price: Call Us |
| 46 | 5D0-82116-00 | WIRE, MINUS LEAD Price: Call Us |
| 47 | 39P-83371-00 | HORN Price: Call Us |
| 48 | 90465-10098 | CLAMP Price: Call Us |
| 49 | 90464-59001 | CLAMP Price: Call Us |
