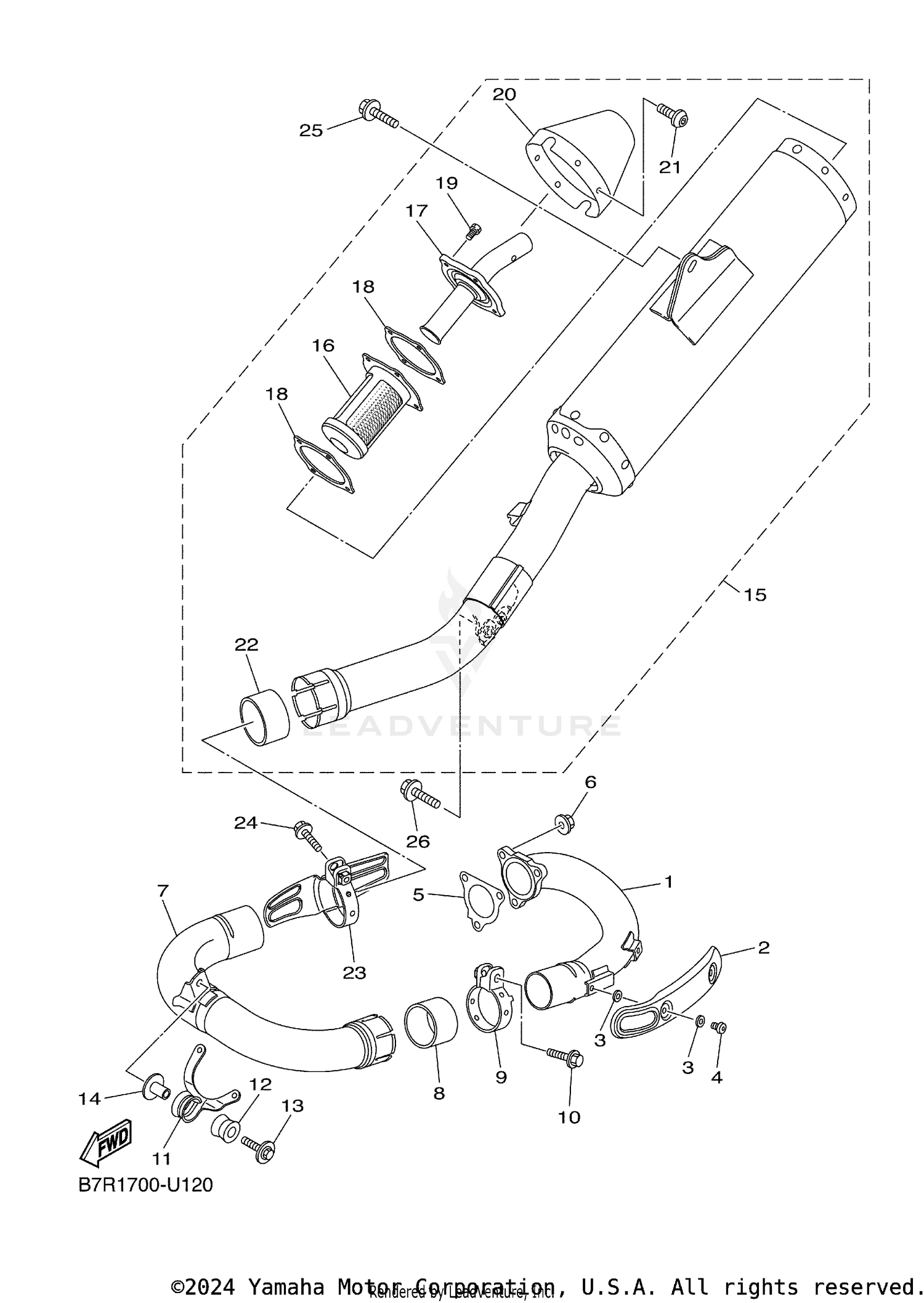

| Ref | Part Number | Description |
|---|
| 1 |
BR9-14611-00-00 |
PIPE, EXHAUST 1 Price: $218.99 |
| 2 |
1SL-14628-00-00 |
PROTECTOR, EXHAUST PIPE Price: $43.99 |
| 3 |
90201-05017-00 |
WASHER, PLATE Price: $9.49 |
| 4 |
98980-06008-00 |
SCREW, BIND Price: $0.70 |
| 6 |
95780-06500-00 |
NUT, FLANGE This part replaces 95704-06500-00. Price: $2.95 |
| 7 |
BR9-14621-00-00 |
PIPE, EXHAUST 2 Price: $257.99 |
| 8 |
5PX-14755-00-00 |
GASKET, SILENCER Price: $32.99 |
| 9 |
1SM-14788-00-00 |
BAND, SILENCER Price: $22.99 |
| 10 |
95024-08040-00 |
BOLT, FLANGE (SMALL HEAD) Price: $9.49 |
| 11 |
BR9-14639-00-00 |
STAY, EXHAUST PIPE 1 Price: $18.99 |
| 12 |
5VY-14747-00-00 |
DAMPER, MUFFLER Price: $15.49 |
| 13 |
90119-08174-00 |
BOLT, WITH WASHER Price: $6.49 |
| 14 |
90387-08081-00 |
COLLAR Price: $9.49 |
| 15 |
B7R-14701-00-00 |
MUFFLER COMP. Price: $887.99 |
| 16 |
5TJ-14780-00-00 |
SPARK ARRESTER ASSY Price: $104.99 |
| 17 |
5TJ-14784-00-00 |
PIPE, TAIL Price: $157.99 |
| 18 |
5TJ-14623-00-00 |
GASKET, EXHAUST PIPE Price: $14.49 |
| 19 |
90110-05041-00 |
BOLT, HEXAGON SOCKET HEAD Price: $4.05 |
| 20 |
5TJ-14799-00-00 |
CAP Price: $131.99 |
| 21 |
92012-05008-00 |
BOLT, BUTTON HEAD Price: $3.05 |
| 22 |
1SL-14714-00-00 |
GASKET, MUFFLER Price: $32.99 |
| 23 |
BR9-14715-00-00 |
BAND, MUFFLER Price: $71.99 |
| 24 |
95024-08040-00 |
BOLT, FLANGE (SMALL HEAD) Price: $9.49 |
| 25 |
90119-08170-00 |
BOLT, WITH WASHER Price: $5.49 |
