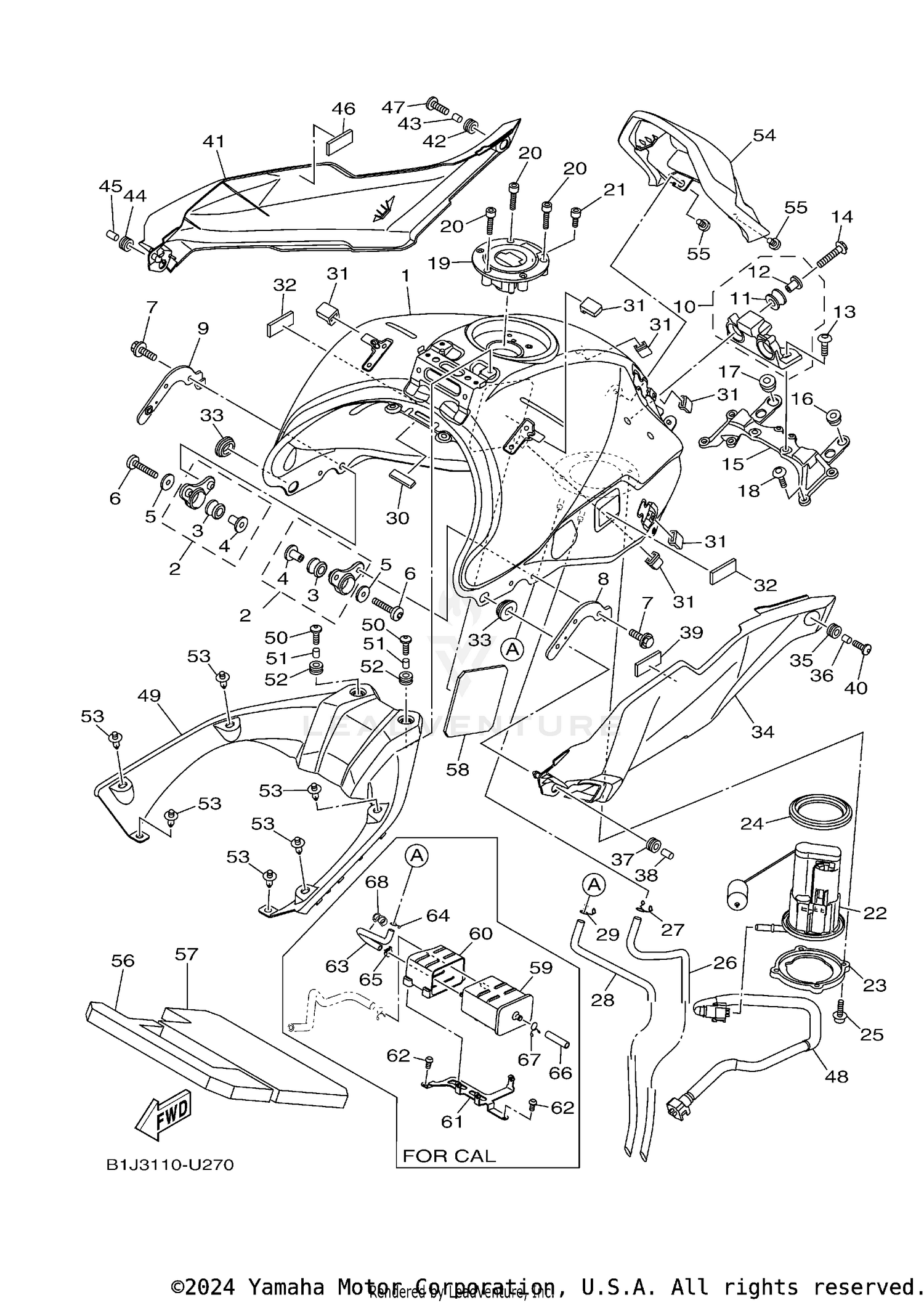

| Ref | Part Number | Description |
|---|
| 2 |
23P-24104-00-00 |
TANK BRACKET ASSY This part replaces 23P-24104-01-00. Price: $46.99 |
| 3 |
90480-18008-00 |
GROMMET Price: $4.00 |
| 4 |
90387-06266-00 |
COLLAR Price: $4.95 |
| 5 |
90201-06072-00 |
WASHER, PLATE Price: $10.49 |
| 6 |
92012-06035-00 |
BOLT, BUTTON HEAD Price: $2.50 |
| 7 |
90119-06200-00 |
BOLT, WITH WASHER Price: $9.49 |
| 8 |
2PP-2411F-00-00 |
PLATE, FITTING Price: $10.99 |
| 9 |
2PP-2411L-00-00 |
HOOK TANK FITTING Price: $10.99 |
| 10 |
2PP-24105-00-00 |
TANK BRACKET ASSY 2 Price: $39.99 |
| 11 |
3D7-24339-00-00 |
GROMMET Price: $5.49 |
| 12 |
90387-06136-00 |
COLLAR Price: $8.49 |
| 13 |
90111-06136-00 |
BOLT,0HEX. SOCKET BUTTON Price: $6.49 |
| 14 |
95817-06025-00 |
BOLT, FLANGE This part replaces 95812-06025-00. Price: $1.75 |
| 15 |
2PP-2413Y-00-00 |
BRACKET, TANK FITTING Price: $40.99 |
| 16 |
90480-13014-00 |
GROMMET This part replaces 90480-13398-00. Price: $9.49 |
| 17 |
90480-01559-00 |
GROMMET Price: $6.49 |
| 18 |
92017-06020-00 |
BOLT, BUTTON HEAD Price: $4.05 |
| 19 |
39P-24602-10-00 |
CAP ASSY Price: $276.99 |
| 20 |
90110-05112-00 |
BOLT, HEXAGON SOCKET HEAD Price: $10.49 |
| 21 |
91312-05010-00 |
BOLT, HEXAGON SOCKET HEAD Price: $6.49 |
| 22 |
1RC-13907-10-00 |
FUEL PUMP COMP This part replaces 1RC-13907-00-00. Price: $489.99 |
| 23 |
1RC-24491-00-00 |
BRACKET, FUEL PUMP Price: $30.99 |
| 24 |
1RC-24486-00-00 |
O-RING Price: $33.99 |
| 25 |
90110-05028-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 26 |
1RC-24315-00-00 |
PIPE 5 Price: $15.49 |
| 27 |
90467-090A2-00 |
CLIP This part replaces 90467-09006-00. Price: $4.75 |
| 30 |
2S3-28347-00-00 |
MOLE 3 Price: $7.49 |
| 31 |
5PW-2411J-01-00 |
DAMPER, SIDE COVER Price: $8.49 |
| 32 |
2PP-2411G-00-00 |
HOOK, SIDE COVER 1 Price: $8.49 |
| 33 |
90480-01558-00 |
GROMMET Price: $4.65 |
| 34 |
B5C-24129-00-00 |
COVER, SIDE 1 Price: $34.99 |
| 35 |
90480-13018-00 |
GROMMET Price: $9.49 |
| 36 |
90387-0611W-00 |
COLLAR Price: $4.10 |
| 37 |
90480-13018-00 |
GROMMET Price: $9.49 |
| 38 |
90387-06026-00 |
COLLAR Price: $9.49 |
| 39 |
2PP-2411G-00-00 |
HOOK, SIDE COVER 1 Price: $8.49 |
| 40 |
90111-05007-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 41 |
B5C-24139-00-00 |
COVER, SIDE 2 Price: $34.99 |
| 42 |
90480-13018-00 |
GROMMET Price: $9.49 |
| 43 |
90387-0611W-00 |
COLLAR Price: $4.10 |
| 44 |
90480-13018-00 |
GROMMET Price: $9.49 |
| 45 |
90387-06026-00 |
COLLAR Price: $9.49 |
| 46 |
2PP-2411G-00-00 |
HOOK, SIDE COVER 1 Price: $8.49 |
| 47 |
90111-05007-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 48 |
1RC-13971-11-00 |
PIPE, FUEL 1 This part replaces 1RC-13971-10-00. Price: $78.99 |
| 49 |
B5C-241B1-00-00 |
COVER, TANK Price: $88.99 |
| 50 |
90111-05007-00 |
BOLT, HEXAGON SOCKET HEAD Price: $9.49 |
| 51 |
90387-0611W-00 |
COLLAR Price: $4.10 |
| 52 |
90480-13018-00 |
GROMMET Price: $9.49 |
| 53 |
90269-07007-00 |
RIVET Price: $4.40 |
| 54 |
B5C-24141-00-00 |
PROTECTOR, FUEL TANK Price: $151.99 |
| 55 |
90111-05002-00 |
BOLT, HEX. SOCKET BUTTON Price: $8.49 |
| 56 |
2PP-2414H-00-00 |
DAMPER, PLATE 1 Price: $32.99 |
| 57 |
2PP-2414J-00-00 |
DAMPER, PLATE 2 Price: $14.49 |
| 58 |
BS2-24141-00-00 |
PROTECTOR, FUEL TANK Price: $18.49 |
