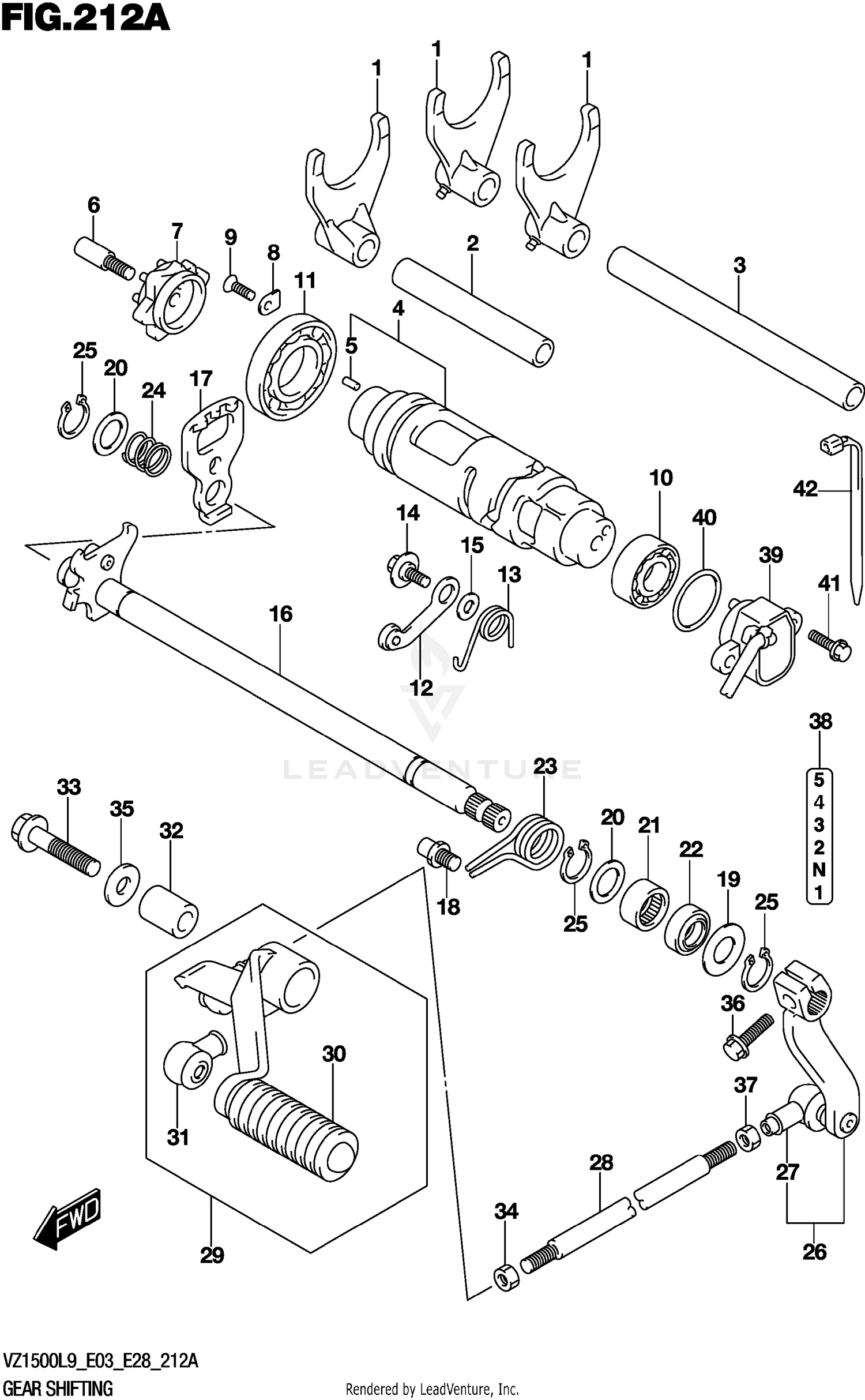

| Ref | Part Number | Description |
|---|
| 1 |
25211-17E02 |
FORK,GEAR SHIFT Price: $78.42 |
| 2 |
25411-38B01 |
SHAFT,GEAR SHIFT FORK (L:152) Price: $31.26 |
| 3 |
25411-44B00 |
SHAFT,GEAR SHIFT FORK NO.1 Price: $34.25 |
| 4 |
25310-06J00 |
CAM Price: $284.31 |
| 6 |
25312-42F01 |
BOLT,GEAR SHIFT CAM PLATE Price: $9.82 |
| 7 |
25381-13E00 |
PLATE,GEAR SHIFT CAM Price: $60.51 |
| 8 |
24741-20A00 |
RETAINER, SHIFT CAM BEARING Price: $3.29 |
| 9 |
09126-06011 |
SCREW (6X12) Price: $2.45 |
| 12 |
25350-24F00 |
STOPPER,SHIFT CAM Price: $36.88 |
| 13 |
25355-24F00 |
SPRING Price: $7.74 |
| 14 |
09111-06041 |
BOLT (6X14.3) Price: $3.08 |
| 15 |
08211-06141 |
WASHER Price: $1.95 |
| 16 |
25510-40H00 |
SHAFT Price: $115.65 |
| 17 |
25512-06G20 |
PLATE,GEAR SHIFT CAM DRIVE This part replaces 25512-06G10. Price: $30.11 |
| 18 |
25671-01011 |
STOPPER,GEAR SHIFT ARM Price: $5.53 |
| 19 |
09160-14016 |
WASHER (14X29X0.8) Price: $2.32 |
| 20 |
09181-14167 |
SHIM (14X22X1) Price: $3.08 |
| 21 |
09263-14027 |
BEARING (14X20X12) Price: $16.47 |
| 22 |
09283-14006 |
SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005. Price: $8.16 |
| 23 |
09440-17009 |
SPRING Price: $2.10 |
| 24 |
09444-20001 |
SPRING Price: $6.47 |
| 25 |
08331-3114A |
CIRCLIP Price: $2.30 |
| 26 |
25520-40H01 |
ARM,GEAR SHIFT This part replaces 25520-40H00. Price: $49.59 |
| 28 |
25525-17C20 |
ROD Price: $18.41 |
| 29 |
25600-40H01 |
LEVER ASSY,GEAR This part replaces 25600-40H00. Price: $128.24 |
| 32 |
25617-10F00 |
SPACER Price: $17.82 |
| 33 |
09103-10300 |
BOLT (10X40) Price: $7.76 |
| 34 |
09140-06025 |
NUT Price: $2.15 |
| 35 |
09160-10093 |
WASHER (10.5X24X2.3) Price: $2.48 |
| 36 |
01547-0620A |
BOLT Price: $2.45 |
| 37 |
08310-0006A |
NUT Price: $2.22 |
| 38 |
68392-38B00 |
LABEL,GEAR SHIFT Price: $4.10 |
| 39 |
37730-18H03 |
SENSOR ASSY,GEA This part replaces 37730-18H02. Price: $105.22 |
| 40 |
09280-26005 |
O-RING (D:2.4,ID:26.2) Price: $2.79 |
| 41 |
07120-0516A |
BOLT Price: $2.77 |
