| Ref | Part Number | Description |
|---|
| 2 |
2707-090 |
Bracket, Mounting - Suspension - Right - Black Price: $52.95 |
| 2 |
2707-091 |
Bracket, Mounting - Suspension - Left - Black Price: $52.95 |
| 3 |
8060-706 |
Rivet Price: $0.46 |
| 4 |
1623-241 |
Rivet Price: $2.05 |
| 5 |
8422-502 |
Nut, Lock Price: $0.48 |
| 6 |
1707-644 |
Bracket, Mounting - Rear Spar - Right Price: $33.95 |
| 6 |
1707-645 |
Bracket, Mounting - Rear Spar - Left Price: $33.95 |
| 7 |
8476-512 |
Screw, Machine Price: $1.45 |
| 8 |
1623-257 |
Rivet Price: $2.30 |
| 9 |
8060-484 |
Rivet Price: $0.46 |
| 10 |
1607-153 |
End Cap, Tunnel Price: $548.95 |
| 11 |
1607-109 |
Protector, Chain Case Price: $5.90 |
| 12 |
8061-708 |
Rivet Price: $1.08 |
| 13 |
0608-631 |
Plate, Retaining Price: $30.95 |
| 14 |
8060-688 |
Rivet - Zinc Price: $0.48 |
| 15 |
8427-802 |
Nut, Lock Price: $0.58 |
| 16 |
8476-820 |
Screw, Machine Price: $1.08 |
| 17 |
1707-602 |
Support, Footrest - Right - Black Price: $237.95 |
| 17 |
1707-603 |
Support, Footrest - Left - Black Price: $237.95 |
| 18 |
8468-535 |
Screw, Machine Price: $1.07 |
| 19 |
1623-637 |
Clip, U-Nut Price: $2.61 |
| 20 |
0607-996 |
Footrest - Right Price: $28.95 |
| 20 |
0607-997 |
Footrest - Left Price: $28.95 |
| 21 |
8470-516 |
Screw, Machine Price: $0.35 |
| 22 |
1607-346 |
Shield, Brake Disc Price: $52.95 |
| 23 |
8408-613 |
Screw, Cap Price: $1.66 |
| 24 |
0607-351 |
Protector, Brake Disc Price: $13.28 |
| 25 |
0630-301 |
Protector, Harness - Taillight Extension Price: $52.95 |
| 26 |
8477-620 |
Screw, Machine Price: $0.58 |
| 27 |
1623-030 |
Clip, U-Nut Price: $1.08 |
| 28 |
0423-577 |
Clip, U-Nut Price: $0.46 |
| 29 |
1607-194 |
Close Off, Running Board - Right Price: $44.23 |
| 29 |
1607-195 |
Close Off, Running Board - Left Price: $47.95 |
| 30 |
6606-486 |
Snowflap Price: $35.95 |
| 31 |
8061-706 |
Rivet Price: $1.07 |
| 32 |
8061-506 |
Rivet Price: $1.07 |
| 33 |
6606-664 |
Support, Gas Tank - Right Price: $21.77 |
| 33 |
6606-665 |
Support, Gas Tank - Left Price: $21.77 |
| 34 |
1607-689 |
Protector, Tunnel Price: $71.95 |
| 35 |
0617-750 |
Pad, Fuel Tank - Front Price: $42.95 |
| 36 |
6606-935 |
Pad, Fuel Tank - Center Price: $36.95 |
| 37 |
6606-877 |
Pad, Tank Price: $3.14 |
| 38 |
6606-878 |
Pad, Auxiliary Tank - Rear Price: $19.35 |
| 39 |
2621-316 |
Decal, Capacity - Storage Box Price: $14.49 |
| 40 |
0617-743 |
Foam, Side Panel Price: $7.23 |
| 41 |
0617-748 |
Foam, Rack - Right Price: $21.77 |
| 41 |
0617-749 |
Foam, Rack - Left Price: $21.77 |
| 42 |
0617-744 |
Foam, Fascia - Rear Price: $13.28 |
| 43 |
5706-635 |
Rack, Rear - Black Price: $592.95 |
| 44 |
0744-088 |
Kit, Tool Price: $92.34 |
| 45 |
0423-356 |
SCREW, SHOULDER-M6-1.0 X 22 RIE BLK Price: $2.39 |
| 46 |
2623-017 |
Screw, Self-Tapping Price: $1.45 |
| 47 |
8427-602 |
Nut, Hex Price: $0.23 |
| 48 |
2623-059 |
Screw, Machine Price: $2.17 |
| 49 |
6606-392 |
Strap, Hold Down Price: $3.02 |
| 50 |
8468-635 |
Screw, Machine Price: $3.38 |
| 51 |
5706-450 |
Bracket, Mounting - Rack - Outer - Right - Black Price: $47.95 |
| 51 |
5706-451 |
Bracket, Mounting - Rack - Outer - Left - Black Price: $47.95 |
| 52 |
5706-448 |
Bracket, Mounting - Rack - Inner - Right - Black Price: $47.95 |

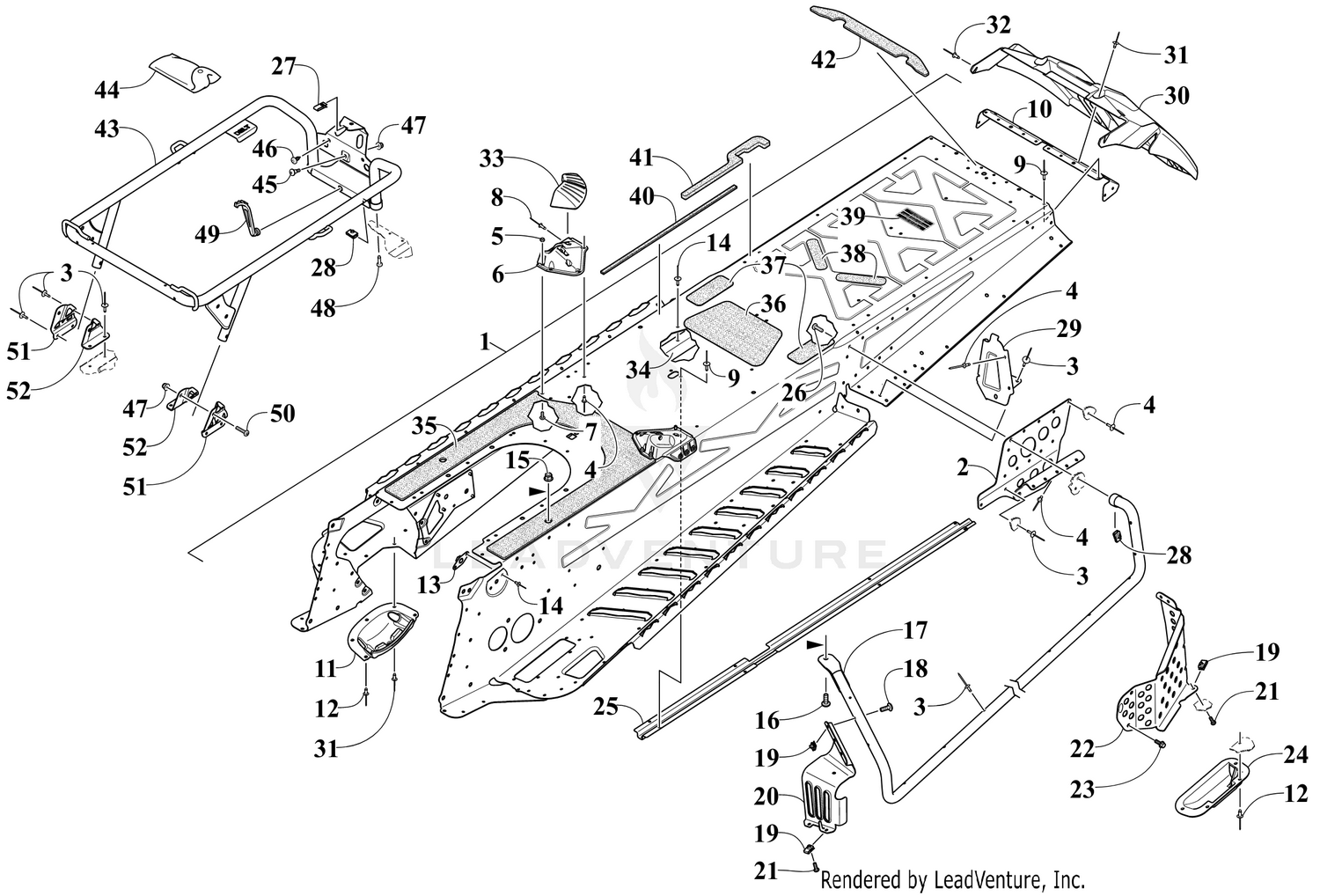

![TUNNEL AND REAR RACK ASSEMBLY [106058]](https://cdn.datamanager.arinet.com/image/ARCT/4718d842-1884-4e4d-bba9-a63cbb1a65b4/Max)
