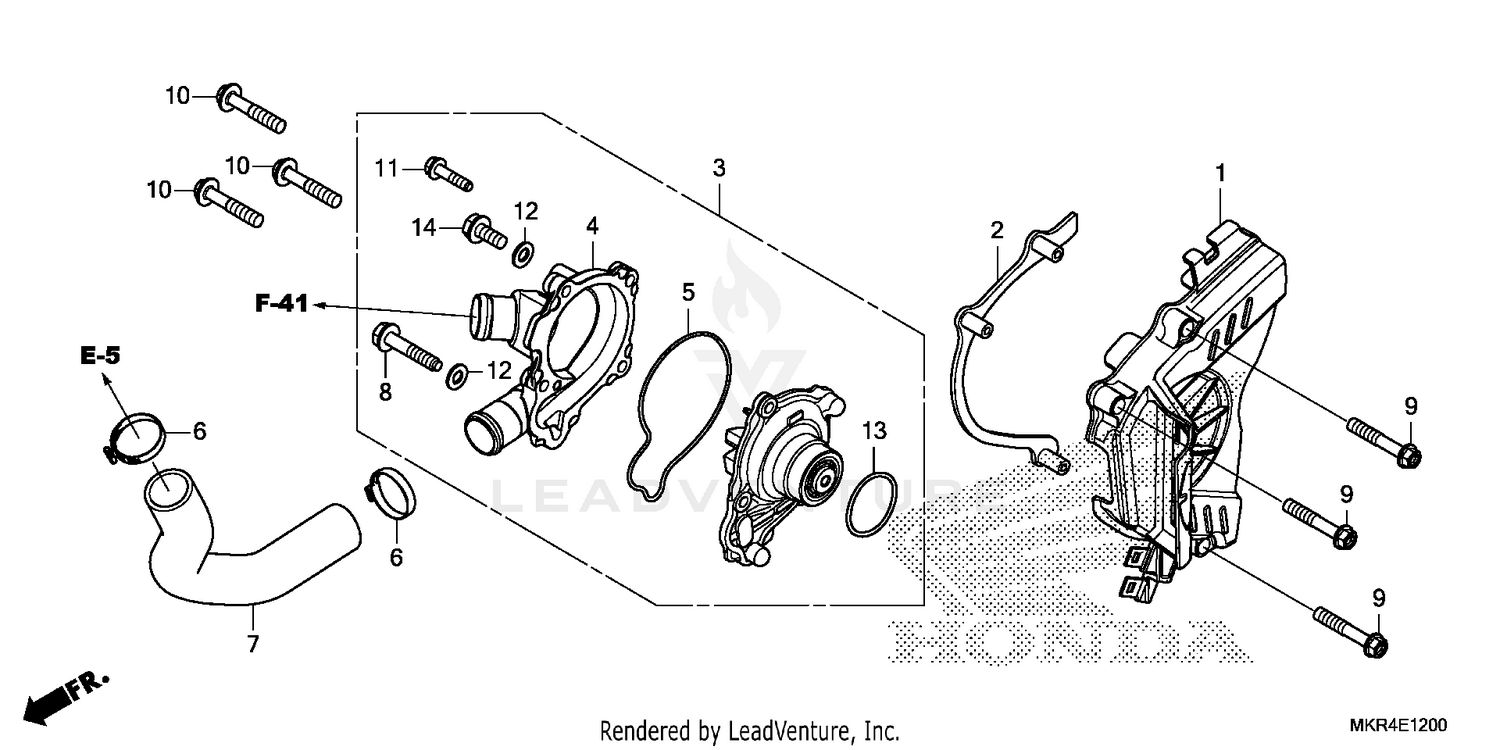

| Ref | Part Number | Description |
|---|
| 1 |
11350-MKR-D10 |
COVER, L. RR. Price: $26.40 |
| 2 |
11355-MKR-D10 |
PLATE, DRIVE CHAIN GUIDE Price: $15.85 |
| 3 |
19200-MKR-D10 |
WATER PUMP ASSY. Price: $290.73 |
| 4 |
19220-MKR-D10 |
COVER, WATER PUMP Price: $119.93 |
| 5 |
19226-MKR-D11 |
GASKET, WATER PUMP COVER Price: $8.20 |
| 6 |
19514-MKF-D41 |
CLAMP, HOSE (D29.8) Price: $12.42 |
| 7 |
19541-MKR-D10 |
HOSE, CYLINDER Price: $44.15 |
| 8 |
90003-HN2-000 |
BOLT, FLANGE (6X30) (CT200) Price: $1.47 |
| 9 |
90021-GHB-720 |
BOLT, FLANGE (6X35) Price: $2.78 |
| 10 |
90027-GHB-710 |
BOLT, FLANGE (6X32) Price: $2.73 |
| 11 |
90121-MV9-670 |
BOLT, FLANGE (6X25) Price: $3.40 |
| 12 |
90463-ML7-000 |
WASHER, SEALING (6.5MM) Price: $3.53 |
| 13 |
91308-5R7-A01 |
O-RING (35.2X2.4) Price: $0.88 |
