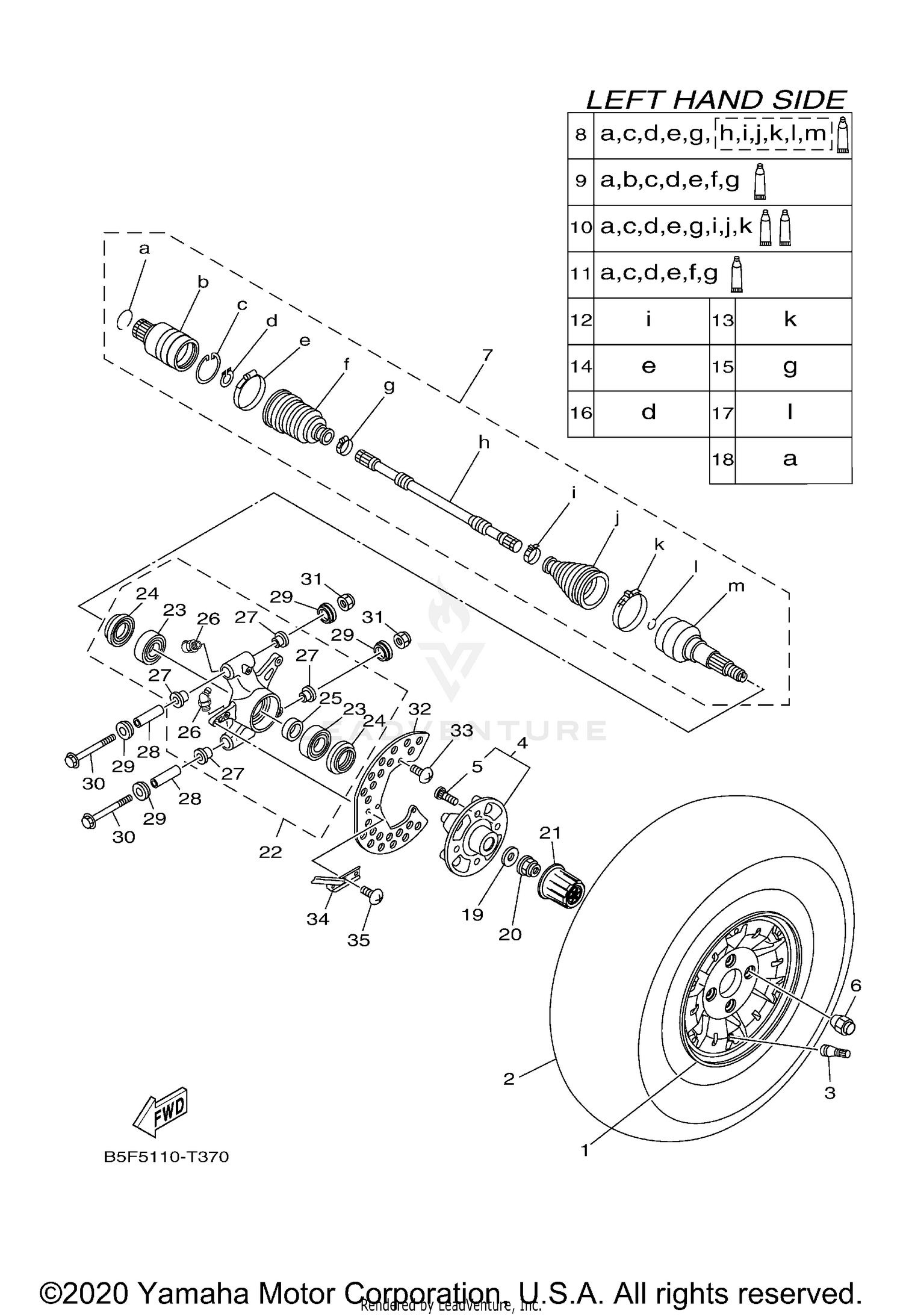

| Ref | Part Number | Description |
|---|
| 1 |
1XP-F5307-00-00 |
CAST WHEEL, REAR Price: $226.99 |
| 4 |
2MB-F510D-04-00 |
HUB ASSY 2 This part replaces 2MB-F510D-02-00. Price: $100.99 |
| 5 |
90114-12005-00 |
BOLT, SERRATION Price: $3.20 |
| 6 |
90176-12800-00 |
NUT, CROWN Price: $3.95 |
| 7 |
1XD-F531H-01-00 |
REAR DRIVE SHAFT ASSY This part replaces 1XD-F531H-00-00. Price: $294.99 |
| 8 |
1XD-F530T-00-00 |
BALL JOINT SET Price: $258.99 |
| 9 |
1XD-F530V-00-00 |
DOUBLE OFF SET JOINT Price: $150.99 |
| 10 |
1XD-F530X-00-00 |
BOOT SET (BALL JOINT) Price: $177.99 |
| 11 |
1XD-F530Y-00-00 |
BOOT SET(DOUBLE OFFSET JOINT Price: $164.99 |
| 12 |
1XD-F511H-00-00 |
BOOT BAND(DOUBLE OFFSET JOIN Price: $18.49 |
| 13 |
1XD-F511G-00-00 |
BOOT BAND (BALL JOINT) Price: $26.99 |
| 14 |
1XD-F512G-00-00 |
BOOT BAND (SMALL) Price: $26.99 |
| 15 |
1XD-F510U-00-00 |
BOOT BAND (SMALL) Price: $26.99 |
| 16 |
1XD-F512J-00-00 |
SNAP RING Price: $15.49 |
| 17 |
5UG-F512H-00-00 |
CIRCLIP Price: $9.49 |
| 18 |
1XD-F536E-00-00 |
CLIP, SPRING Price: $21.99 |
| 19 |
90201-25023-00 |
WASHER, PLATE Price: $11.49 |
| 20 |
90179-24006-00 |
NUT Price: $15.49 |
| 21 |
2MB-F512A-00-00 |
CAP, WHEEL Price: $2.85 |
| 22 |
1XD-F530F-21-00 |
REAR KNUCKLE ASSY Price: $164.99 |
| 23 |
93306-20725-00 |
BEARING Price: $42.99 |
| 24 |
93106-50002-00 |
OIL SEAL Price: $17.49 |
| 25 |
90387-35007-00 |
COLLAR Price: $16.49 |
| 26 |
93700-06009-00 |
NIPPLE, GREASE Price: $12.49 |
| 27 |
90381-18005-00 |
BUSH, SOLID Price: $11.49 |
| 28 |
90387-12N54-00 |
COLLAR Price: $20.99 |
| 29 |
1XD-23517-01-00 |
COVER, THRUST 1 This part replaces 1XD-23517-00-00. Price: $10.99 |
| 30 |
90105-12089-00 |
BOLT, FLANGE Price: $10.49 |
| 31 |
90185-12010-00 |
NUT, SELF-LOCKING Price: $9.49 |
| 32 |
1XD-F514A-01-00 |
RING, WHEEL 1 Price: $8.49 |
| 33 |
92012-06012-00 |
BOLT, BUTTON HEAD Price: $4.70 |
| 34 |
1XD-F2341-00-00 |
PLATE, GUIDE 1 Price: $11.99 |
