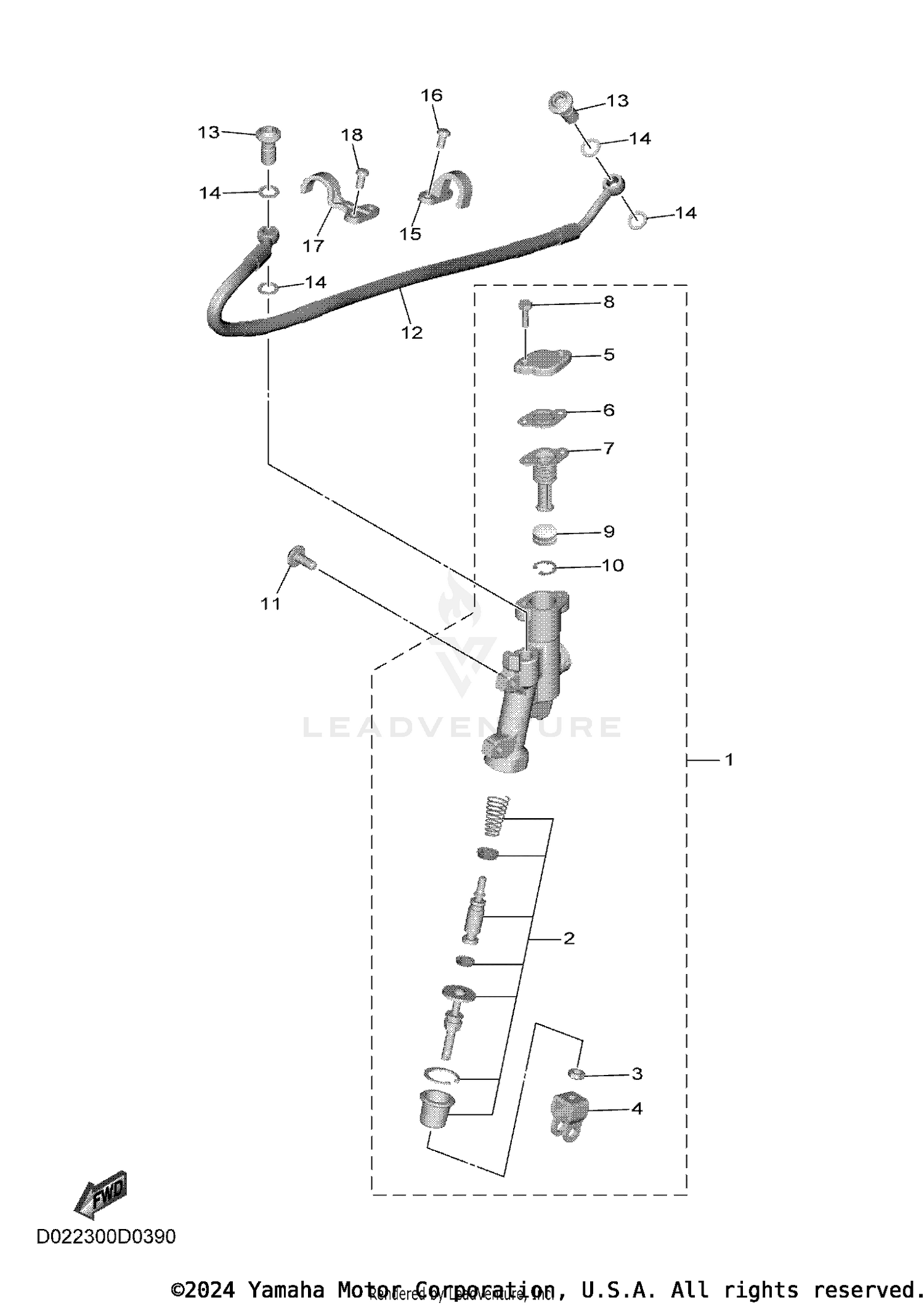

REAR MASTER CYLINDER
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BMF-2583V-00-00 | RR. MASTER CYLINDER ASSY. Price: $180.99 |
| 2 | 5UN-W0042-50-00 | CYLINDER KIT, MASTER Price: $97.99 |
| 3 | 5UN-27218-00-00 | NUT Price: $5.49 |
| 4 | 5UN-27222-00-00 | JOINT Price: $18.99 |
| 5 | 5UN-25852-50-00 | CAP, RESERVOIR Price: $18.99 |
| 6 | 5UN-2585B-00-00 | PLATE, DIAPHRAGM Price: $8.49 |
| 8 | 5UN-27217-00-00 | BOLT Price: $5.99 |
| 9 | 5CG-25715-00-00 | SEPARATOR ASSY Price: $14.49 |
| 10 | 5CG-2585G-00-00 | CIRCLIP Price: $5.99 |
| 11 | 90111-06116-00 | BOLT, HEX. SOCKET BUTTON Price: $8.49 |
| 12 | BHR-25873-01-00 | HOSE, BRAKE 2 Price: $98.99 |
| 13 | 90401-10172-00 | BOLT, UNION Price: $6.49 |
| 14 | 90430-10005-00 | GASKET Price: $9.49 |
| 15 | 1C3-25886-50-00 | HOLDER, BRAKE HOSE Price: $15.49 |
| 16 | 98517-05010-00 | SCREW, PAN HEAD This part replaces 98502-05010-00. Price: $4.60 |
| 17 | 1C3-25876-50-00 | HOLDER, BRAKE HOSE 2 Price: $15.49 |
