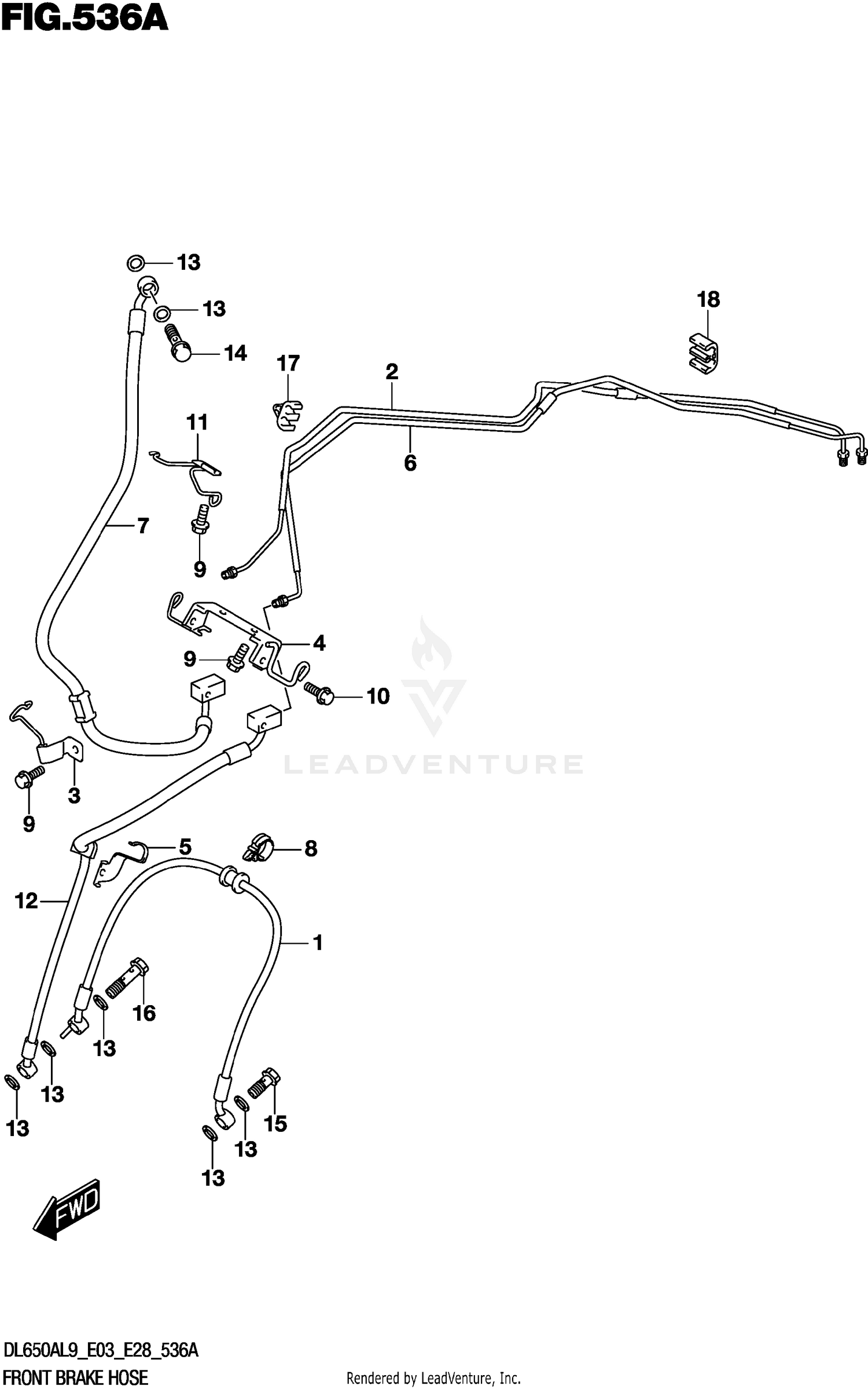

FRONT BRAKE HOSE
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 59240-11J00 | HOSE, FR BRAKE NO.2 Price: $130.95 |
| 2 | 59250-28K00 | PIPE, BK JOINT RH TO HU Price: $28.60 |
| 3 | 59260-06G10 | CLAMP, FR BRAKE HOSE Price: $21.14 |
| 4 | 59260-11J00 | CLAMP, FR BRAKE HOSE NO.2 Price: $25.81 |
| 5 | 59268-11J00 | CLAMP, FR BRAKE HOSE RH Price: $9.10 |
| 6 | 59450-28K00 | PIPE, HU TO BK JOINT LH Price: $23.78 |
| 7 | 59480-11J01 | HOSE, FR BRAKE NO.1 This part replaces 59480-11J00. Price: $109.60 |
| 8 | 09403-16412 | CLAMP Price: $4.16 |
| 9 | 01547-0612A | BOLT Price: $2.45 |
| 10 | 01547-0616A | BOLT Price: $2.45 |
| 11 | 59540-11J00 | GUIDE, FR BRAKE HOSE Price: $19.45 |
| 12 | 59560-11J01 | HOSE, FR BRAKE NO.3 This part replaces 59560-11J00. Price: $102.39 |
| 13 | 09161-10009 | WASHER (10X15X1.5) Price: $2.22 |
| 14 | 09360-10062 | UNION (10X1.25X22) Price: $7.84 |
| 15 | 09360-10062 | UNION (10X1.25X22) Price: $7.84 |
| 16 | 09360-10064 | UNION (10X1.25X36) Price: $7.84 |
| 17 | 09403-07334 | CLAMP Price: $1.84 |
