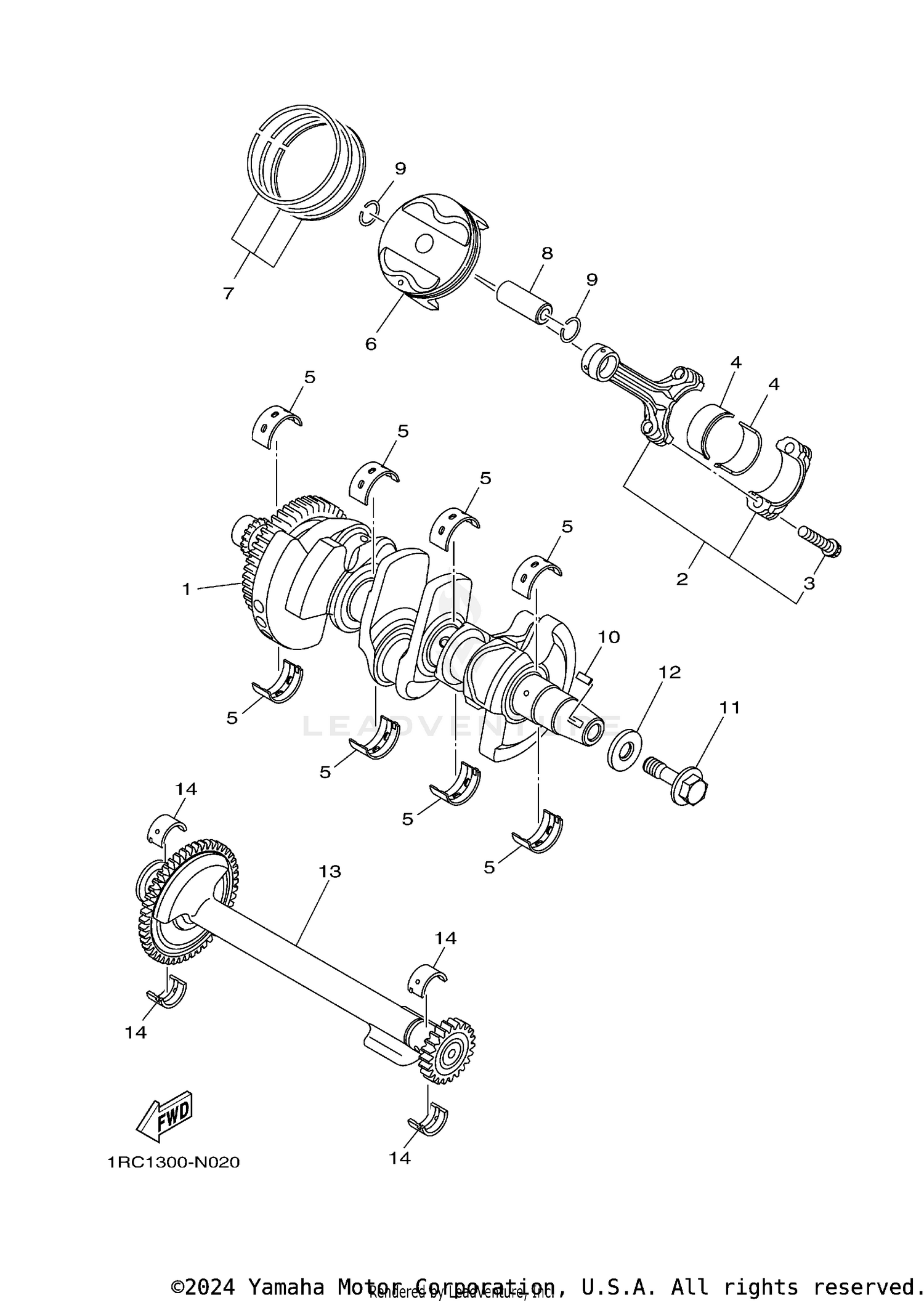

CRANKSHAFT PISTON
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 1RC-11400-00-00 | CRANKSHAFT ASSY Price: $943.99 |
| 2 | 1RC-11650-01-00 | CONNECTING ROD ASSY Price: $171.99 |
| 3 | 1RC-11654-00-00 | BOLT, CONNECTING ROD Price: $3.75 |
| 6 | 1RC-11631-00-00 | PISTON (STD) Price: $122.99 |
| 7 | 1RC-11603-01-00 | PISTON RING SET (STD) This part replaces 1RC-11603-00-00. Price: $35.99 |
| 8 | 39P-11633-00-00 | PIN, PISTON Price: $31.99 |
| 9 | 93450-18157-00 | CIRCLIP Price: $9.49 |
| 10 | 90280-05029-00 | KEY, WOODRUFF Price: $12.49 |
| 11 | 90105-126A8-00 | BOLT, FLANGE Price: $17.49 |
| 12 | 90201-12008-00 | WASHER, PLATE Price: $16.49 |
| 13 | 1RC-11500-01-00 | BALANCER ASSY Price: $381.99 |
