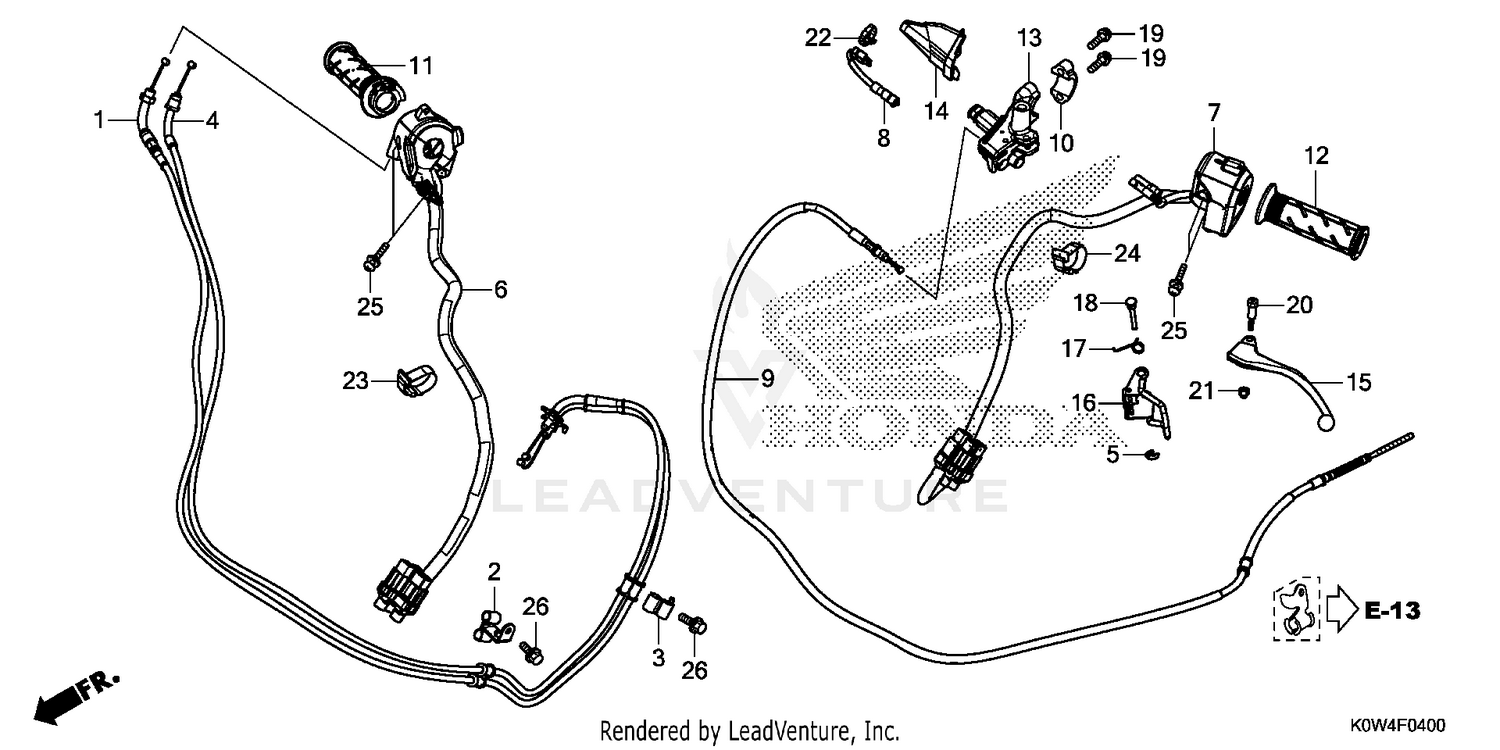

| Ref | Part Number | Description |
|---|
| 1 |
17910-K0W-T01 |
CABLE A, THROTTLE Price: $93.01 |
| 2 |
17912-K97-T00 |
CLAMP Price: $2.56 |
| 3 |
17913-K35-V00 |
CLAMP B, THROTTLE CABLE Price: $0.96 |
| 4 |
17920-K0W-T01 |
CABLE B, THROTTLE Price: $27.82 |
| 5 |
30158-GW3-980 |
E-RING (3MM) Price: $1.24 |
| 6 |
35130-K0W-A11 |
SWITCH ASSY., STARTER & HAZARD & ENGINE STOP Price: $100.69 |
| 7 |
35200-K0W-A11 |
SWITCH ASSY., DIMMER & HORN & TURN SIGNAL Price: $83.73 |
| 8 |
35345-K35-V01 |
SWITCH ASSY., RR. STOP Price: $18.18 |
| 9 |
43450-K0W-A11 |
CABLE, RR. BRAKE Price: $37.16 |
| 10 |
45517-166-006 |
HOLDER, MASTER CYLINDER Price: $16.42 |
| 11 |
53140-K0W-N00 |
GRIP, THROTTLE Price: $6.56 |
| 12 |
53166-KWN-305 |
GRIP, L. HANDLE (COO) Price: $8.76 |
| 13 |
53172-K97-A10 |
BRACKET, L. HANDLE LEVER Price: $60.67 |
| 14 |
53177-K97-A10 |
BOOT, L. LEVER Price: $169.27 |
| 15 |
53178-K0W-A10 |
LEVER, L. HANDLEBAR Price: $17.96 |
| 16 |
53181-K0W-A10 |
LEVER, BRAKE LOCK Price: $61.82 |
| 17 |
53182-KVB-900 |
SPRING, LEVER RETURN Price: $0.67 |
| 18 |
53183-K97-A10 |
PIN, BRAKE LOCK LEVER PIVOT Price: $37.31 |
| 19 |
90101-KWN-900 |
BOLT, FLANGE SOCKET (6X22) Price: $1.02 |
| 20 |
90115-KWN-700 |
BOLT, HANDLE LEVER PIVOT Price: $0.40 |
| 21 |
90302-435-761 |
NUT, HEX. (5MM) Price: $2.55 |
| 22 |
90652-K35-V00 |
BAND, WIRE HARNESS Price: $1.35 |
| 23 |
90683-KJ2-003 |
CLIP, WIRE HARNESS Price: $4.47 |
| 24 |
90690-MEF-800 |
CLAMP, HARNESS Price: $1.49 |
| 25 |
93892-05020-07 |
SCREW-WASHER (5X20) Price: $0.98 |
