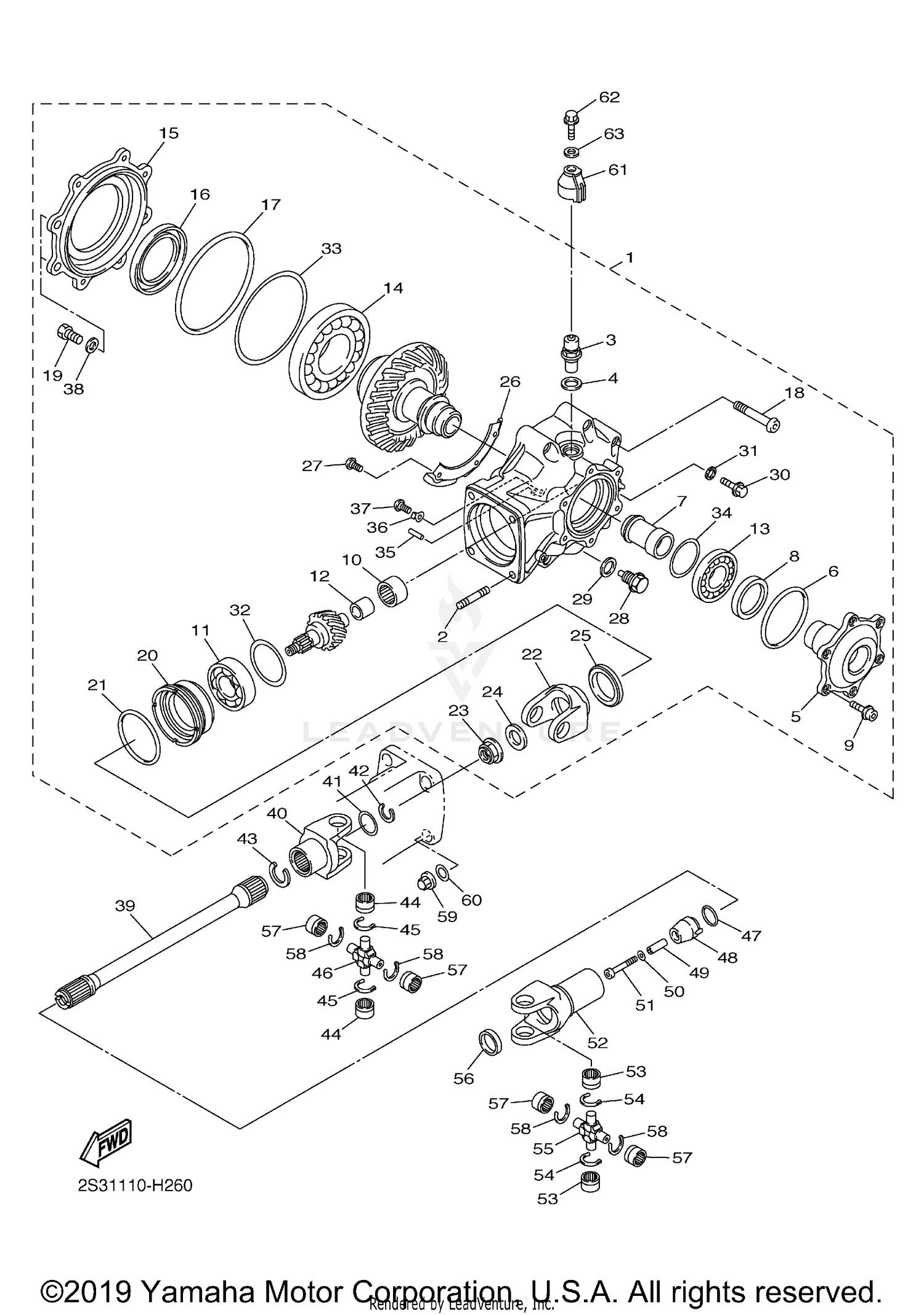

| Ref | Part Number | Description |
|---|
| 1 |
2S3-46101-10-00 |
REAR AXLE GEAR CASE ASSY Price: $2,191.99 |
| 2 |
90116-10061-00 |
BOLT, STUD This part replaces 90116-10010-00. Price: $8.49 |
| 3 |
2S3-17509-00-00 |
BREATHER ASSY Price: $178.99 |
| 4 |
90430-22123-00 |
GASKET Price: $10.49 |
| 5 |
2S3-46296-20-00 |
PLATE Price: $247.99 |
| 6 |
93210-92448-00 |
O-RING Price: $12.49 |
| 7 |
2S3-46153-00-00 |
COLLAR, GUIDE Price: $76.99 |
| 8 |
93102-48014-00 |
OIL SEAL Price: $19.49 |
| 9 |
90110-06333-00 |
BOLT, HEXAGON SOCKET HEAD Price: $3.25 |
| 10 |
93311-62592-00 |
BEARING Price: $51.99 |
| 11 |
93306-20724-00 |
BEARING Price: $87.99 |
| 12 |
2S3-46122-00-00 |
RACE, INNER Price: $26.99 |
| 13 |
93316-01003-00 |
BEARING Price: $113.99 |
| 14 |
93316-01901-00 |
BEARING Price: $247.99 |
| 15 |
2S3-46152-00-00 |
HOUSING, BEARING Price: $167.99 |
| 16 |
93102-80008-00 |
OIL SEAL Price: $25.99 |
| 17 |
93211-594A4-00 |
O-RING Price: $28.99 |
| 18 |
92014-08060-00 |
BOLT, BUTTON HEAD Price: $5.49 |
| 19 |
90101-12037-00 |
BOLT Price: $6.49 |
| 20 |
2S3-46125-00-00 |
RETAINER, BEARING Price: $192.99 |
| 21 |
93210-86003-00 |
O-RING Price: $16.49 |
| 22 |
2S3-17556-01-00 |
YOKE, JOINT Price: $172.99 |
| 23 |
90179-20015-00 |
NUT Price: $32.99 |
| 24 |
90208-22004-00 |
WASHER, CONICAL SPRING Price: $25.99 |
| 25 |
93102-45014-00 |
OIL SEAL Price: $28.99 |
| 26 |
2S3-46114-00-00 |
PLATE, COVER Price: $26.99 |
| 27 |
90149-06030-00 |
SCREW This part replaces 90149-06018-00. Price: $6.49 |
| 28 |
90340-14004-00 |
PLUG, STRAIGHT SCREW Price: $18.49 |
| 29 |
214-11198-01-00 |
GASKET Price: $3.17 |
| 30 |
95024-06014-00 |
BOLT, FLANGE (SMALL HEAD) Price: $4.05 |
| 31 |
90430-06166-00 |
GASKET Price: $4.05 |
| 35 |
93605-23164-00 |
PIN, DOWEL Price: $2.45 |
| 36 |
2S3-46862-00-00 |
HOLDER Price: $6.49 |
| 37 |
90149-06030-00 |
SCREW This part replaces 90149-06018-00. Price: $6.49 |
| 38 |
90201-12033-00 |
WASHER, PLATE Price: $8.49 |
| 39 |
2S3-46172-01-00 |
SHAFT, DRIVE Price: $274.99 |
| 40 |
2S3-17556-01-00 |
YOKE, JOINT Price: $172.99 |
| 41 |
90201-29M01-00 |
WASHER, PLATE Price: $8.10 |
| 42 |
99009-28400-00 |
CIRCLIP Price: $8.49 |
| 43 |
93440-32194-00 |
CIRCLIP Price: $4.10 |
| 44 |
93399-99965-00 |
BEARING Price: $28.99 |
| 45 |
93440-23197-00 |
CIRCLIP Price: $3.95 |
| 46 |
1YW-46187-10-00 |
SPIDER Price: $83.99 |
| 47 |
93210-28763-00 |
O-RING Price: $8.49 |
| 48 |
2S3-46231-00-00 |
CAP Price: $16.99 |
| 49 |
90387-06235-00 |
COLLAR Price: $4.10 |
| 50 |
92990-06200-00 |
WASHER, PLAIN This part replaces 92902-06200-00. Price: $1.00 |
| 51 |
91317-06045-00 |
BOLT This part replaces 90110-06316-00. Price: $5.49 |
| 52 |
2S3-46186-00-00 |
YOKE, JOINT Price: $265.99 |
| 53 |
93399-99965-00 |
BEARING Price: $28.99 |
| 54 |
93440-23197-00 |
CIRCLIP Price: $3.95 |
| 55 |
1YW-46187-10-00 |
SPIDER Price: $83.99 |
| 56 |
90331-37001-00 |
PLUG Price: $7.49 |
| 57 |
93399-99965-00 |
BEARING Price: $28.99 |
| 58 |
93440-23197-00 |
CIRCLIP Price: $3.95 |
| 59 |
90176-10075-00 |
NUT, CROWN Price: $9.49 |
| 60 |
92990-10600-00 |
WASHER, PLATE Price: $3.00 |
| 61 |
2S3-4613F-00-00 |
COVER 1 Price: $77.99 |
| 62 |
95024-06020-00 |
BOLT, FLANGE (SMALL HEAD) Price: $6.49 |
