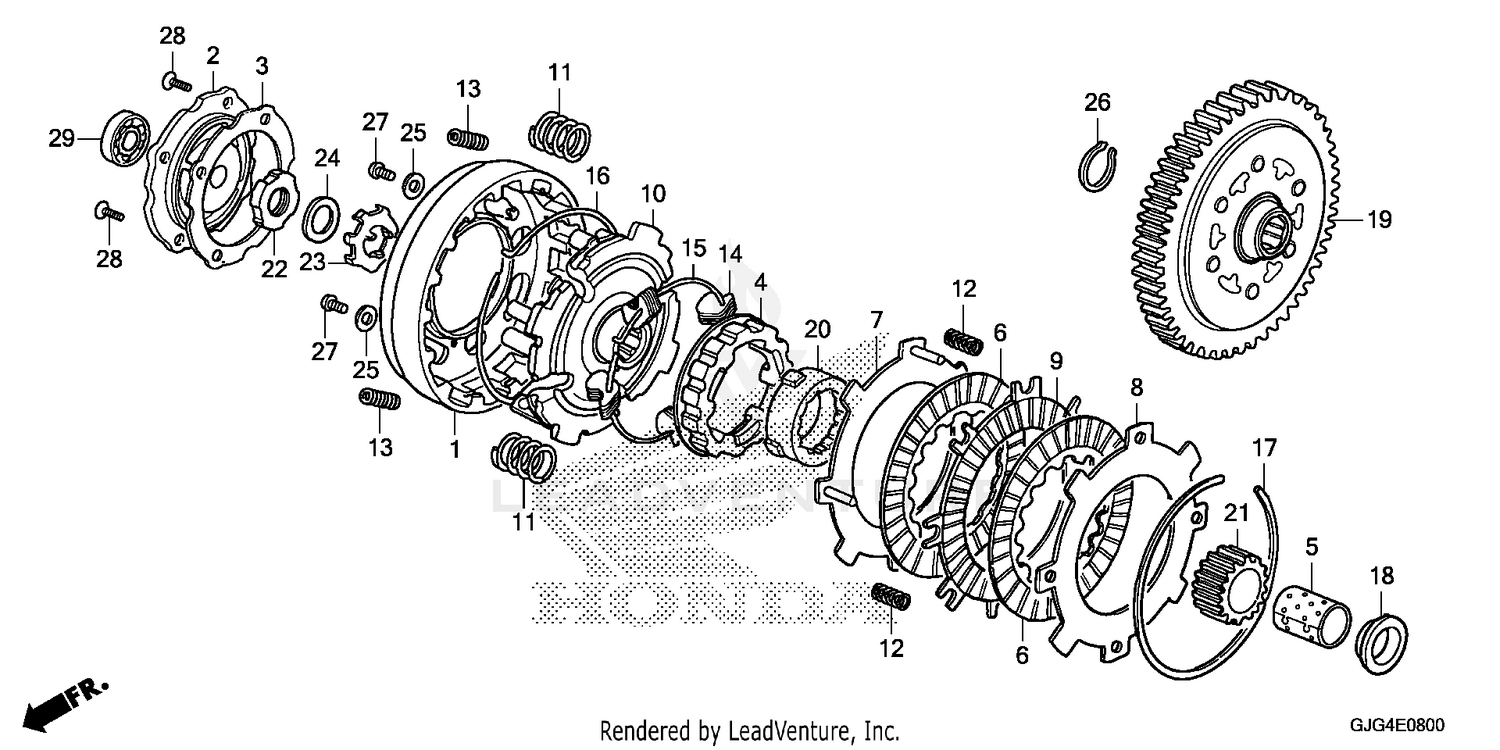

| Ref | Part Number | Description |
|---|
| 1 |
22101-178-000 |
CLUTCH (OUTER) Price: $61.18 |
| 2 |
22111-178-010 |
COVER, CLUTCH (OUTER) Price: $12.55 |
| 3 |
22119-GW8-682 |
GASKET, CLUTCH COVER (OUTER) Price: $3.62 |
| 4 |
22120-GCF-670 |
CENTER, CLUTCH Price: $61.64 |
| 5 |
22131-035-030 |
GUIDE, CLUTCH CENTER Price: $24.71 |
| 6 |
22201-GW8-681 |
DISK A, CLUTCH FRICTION Price: $12.18 |
| 7 |
22310-GB0-910 |
PLATE A, CLUTCH Price: $17.67 |
| 8 |
22321-046-020 |
PLATE B, CLUTCH This part replaces 22321-041-000. Price: $11.91 |
| 9 |
22331-GW8-681 |
DISK B, CLUTCH FRICTION Price: $12.18 |
| 10 |
22351-GB2-710 |
PLATE, DRIVE Price: $70.49 |
| 11 |
22401-GW8-670 |
SPRING, CLUTCH Price: $4.80 |
| 12 |
22411-092-010 |
SPRING, CLUTCH FREE Price: $2.56 |
| 13 |
22421-040-000 |
SPRING, CLUTCH DAMPER Price: $2.33 |
| 14 |
22531-178-000 |
WEIGHT, CLUTCH Price: $2.05 |
| 15 |
22535-033-000 |
RING, CLUTCH WEIGHT CENTER Price: $6.35 |
| 16 |
22536-033-000 |
RING, CLUTCH WEIGHT STOPPER Price: $6.35 |
| 17 |
22901-001-000 |
SET-RING (101.5MM) Price: $4.58 |
| 18 |
22911-GEL-A80 |
COLLAR (17MM) Price: $4.98 |
| 19 |
23110-GEL-A80 |
GEAR, PRIMARY DRIVEN (69T) Price: $148.98 |
| 20 |
23112-GB0-910 |
OUTER, DRIVE GEAR Price: $32.93 |
| 21 |
23121-GEL-A80 |
GEAR, PRIMARY DRIVE (17T) Price: $53.76 |
| 22 |
90231-KVR-C00 |
NUT, LOCK (14MM) Price: $3.67 |
| 23 |
90431-GEL-A80 |
WASHER, LOCK (14MM) Price: $2.88 |
| 24 |
90432-KVR-C00 |
WASHER B, LOCK Price: $6.02 |
| 25 |
90483-041-000 |
WASHER, STOPPER Price: $2.20 |
| 26 |
90601-KYY-900 |
CIRCLIP (17MM) Price: $3.56 |
| 27 |
93500-05010-0A |
SCREW, PAN (5X10) Price: $0.95 |
| 28 |
93600-05010-0A |
SCREW, FLAT (5X10) Price: $0.82 |
