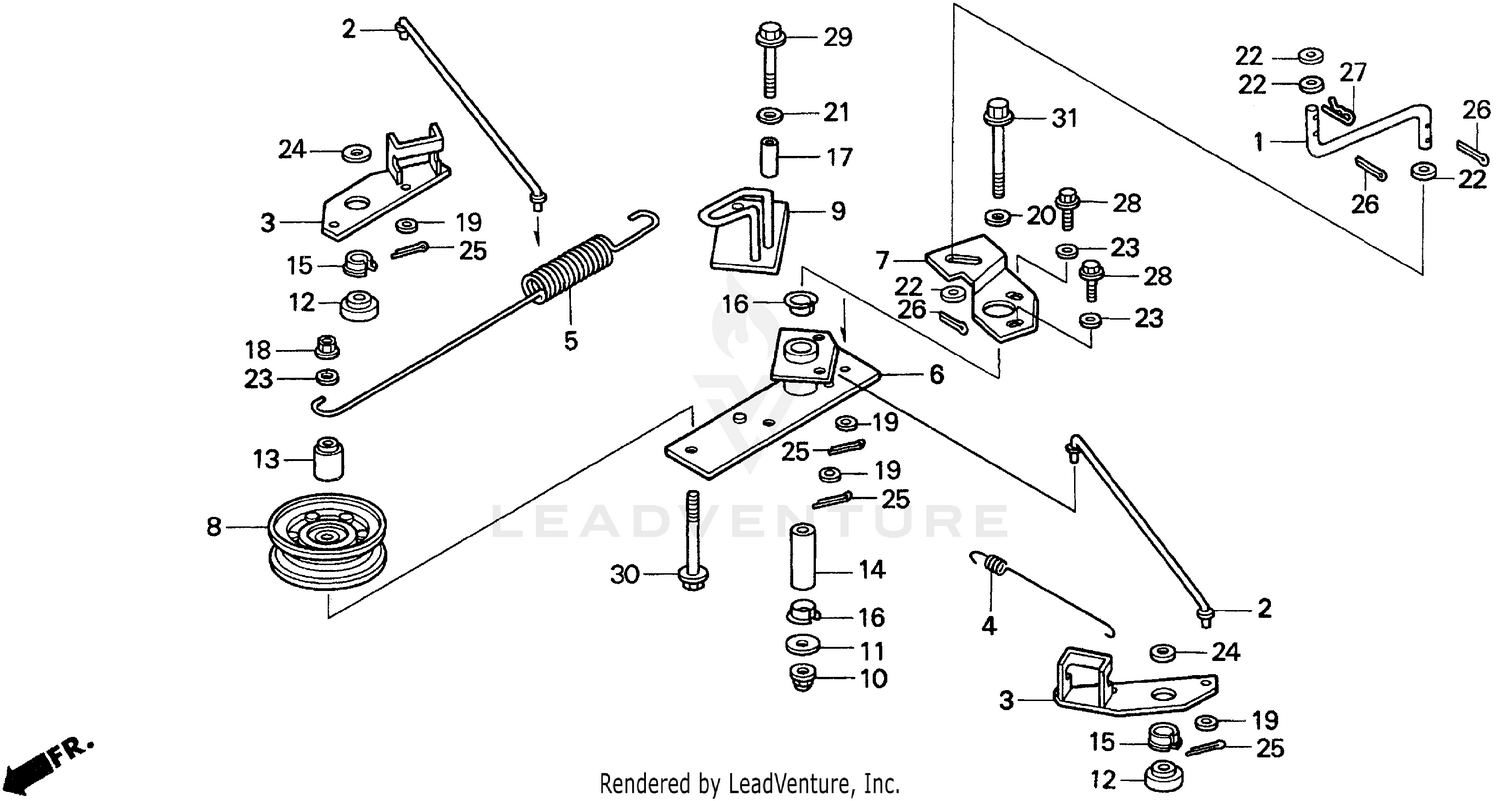

| Ref | Part Number | Description |
|---|
| 1 |
75193-771-000 |
ROD, P.T.O. CLUTCH Price: $10.16 |
| 2 |
75536-771-L00 |
ROD, BLADE BRAKE Price: $8.16 |
| 3 |
75538-771-L00 |
ARM, BLADE BRAKE Price: $13.82 |
| 4 |
75543-771-L00 |
SPRING, BLADE BRAKE Price: $5.16 |
| 5 |
76122-771-L00 |
SPRING, TENSIONER ARM Price: $9.96 |
| 6 |
76123-771-L00 |
ARM, TENSIONER Price: $24.34 |
| 7 |
76126-771-L00 |
PLATE, ADJUSTING Price: $5.48 |
| 8 |
76130-771-L00 |
ROLLER, TENSIONER Price: $45.12 |
| 9 |
76255-771-L00 |
STOPPER D, BELT Price: $16.32 |
| 10 |
90212-SA5-003 |
NUT, SELF-LOCK (10MM) Price: $1.34 |
| 11 |
90507-MW3-670 |
WASHER, PLAIN (10MM) Price: $4.94 |
| 12 |
91554-771-L00 |
COLLAR, BLADE BRAKE Price: $2.82 |
| 13 |
91556-771-L00 |
COLLAR, TENSIONER SPRING Price: $1.92 |
| 14 |
91559-772-L00 |
COLLAR, TENSION Price: $18.44 |
| 15 |
91568-771-L01 |
COLLAR B, BLADE BRAKE Price: $6.70 |
| 16 |
91568-772-L01 |
COLLAR C, TENSIONER Price: $10.26 |
| 17 |
91905-VA9-000 |
COLLAR A, ADJUSTING CENTER Price: $6.34 |
| 18 |
94050-08080 |
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447). Price: $1.18 |
| 19 |
94101-06800 |
SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900). Price: $0.82 |
| 20 |
94101-10800 |
WASHER, PLAIN (10MM) (Honda Code 0562199). Price: $2.36 |
| 21 |
94102-08800 |
WASHER, PLAIN (8MM) (Honda Code 0562215). Price: $1.18 |
| 22 |
94102-10800 |
WASHER, PLAIN (10MM) Price: $4.34 |
| 23 |
94103-08800 |
WASHER, PLAIN (8MM) Price: $1.18 |
| 24 |
94103-10800 |
WASHER, PLAIN (10MM) Price: $1.72 |
| 25 |
94201-25120 |
PIN, COTTER (2.5MM) (SOURCE: VINTAGE PARTS INC.) Price: $4.00 |
| 26 |
94201-30450 |
PIN, COTTER (3.0X45) This part replaces 94201-30250. Price: $1.30 |
| 27 |
94252-10000 |
PIN, LOCK (10MM) Use from Frame SN 2149606 to 2149605. Price: $1.54 |
| 28 |
95701-08020-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) (Honda Code 2440477). Price: $1.98 |
| 29 |
95701-08050-08 |
SEE PART DETAILS - PRI; BOLT, FLANGE (8X50) Price: $3.00 |
| 30 |
95801-08075-08 |
BOLT, FLANGE (8X75) Price: $3.62 |
