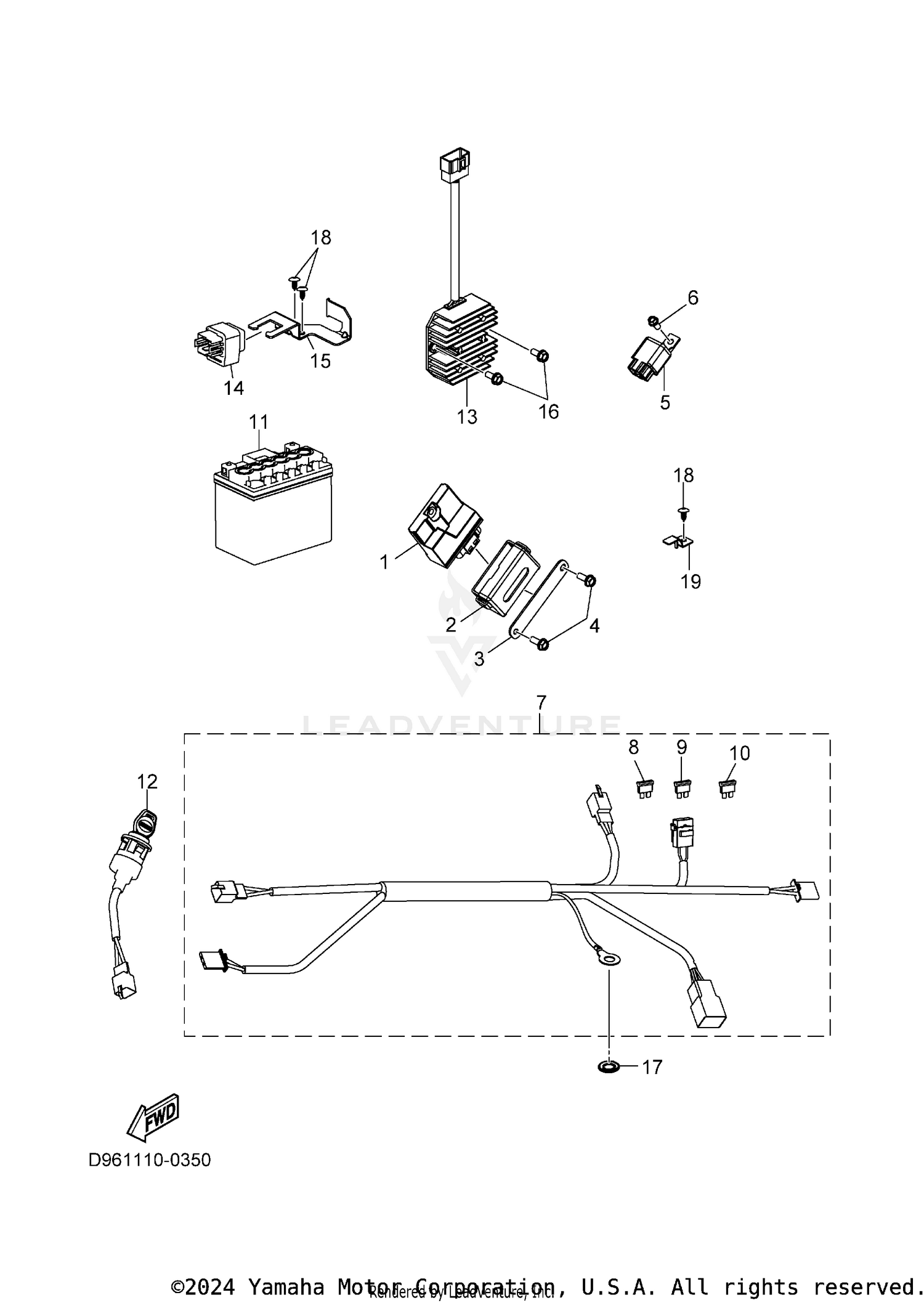

ELECTRICAL 1
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BYS-H591A-00-00 | ENGINE CONTROL UNIT ASSY Price: $696.99 |
| 2 | BYS-H5546-00-00 | BAND Price: $20.99 |
| 3 | BYS-H5991-00-00 | BRACKET, UNIT Price: $25.99 |
| 4 | BD3-E2228-10-00 | BOLT Price: $4.50 |
| 5 | BYS-H1950-00-00 | RELAY ASSY Price: $51.99 |
| 6 | BD3-E7647-10-00 | BOLT Price: $3.60 |
| 7 | BYS-H2590-00-00 | WIRE HARNESS ASSY Price: $669.99 |
| 11 | BYS-H2100-00-00 | BATTERY ASSY Price: $215.99 |
| 12 | B8W-H2510-00-00 | MAIN SWITCH ASSY Price: $79.99 |
| 13 | BYS-H1960-00-00 | RECTIFIER & REGULATOR ASSY Price: $161.99 |
| 14 | BD3-H1940-00-00 | STARTER RELAY ASSY Price: $77.99 |
| 15 | BYS-H1948-00-00 | BRACKET Price: $23.99 |
| 16 | BYS-E2228-00-00 | BOLT Price: $5.49 |
| 17 | BD3-F3456-10-00 | WASHER Price: $2.90 |
| 18 | BD3-F2969-10-00 | SCREW, 1 Price: $2.80 |
