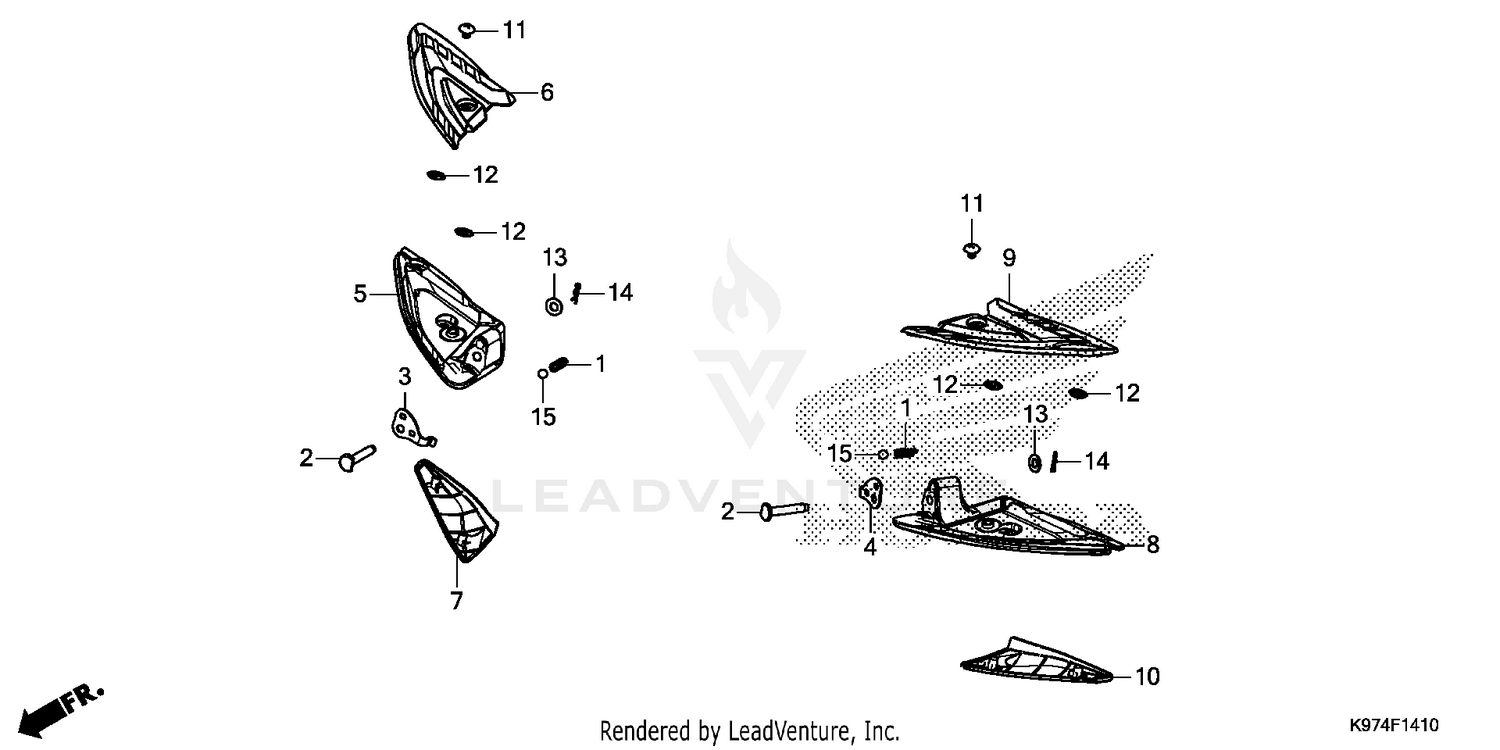

PILLION STEP
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 28333-300-000 | SPRING, KICK STARTER STOPPER Price: $3.55 |
| 2 | 50638-K97-T00 | PIN Price: $2.98 |
| 3 | 50718-K97-T00 | PLATE Price: $1.47 |
| 4 | 50719-K97-T00 | PLATE Price: $1.47 |
| 5 | 50730-K97-T00 | ARM, R PILLION STEP Price: $20.07 |
| 6 | 50731-K97-T00ZA | COVER (INNER) *NH1* Price: $3.47 |
| 7 | 50732-K97-T00ZA | COVER (OUTER) *NH1* Price: $2.71 |
| 8 | 50740-K97-T00 | ARM, L PILLION STEP Price: $20.07 |
| 9 | 50741-K97-T00ZA | COVER (INNER) *NH1* Price: $3.47 |
| 10 | 50742-K97-T00ZA | COVER (OUTER) *NH1* Price: $2.71 |
| 11 | 90109-K01-900 | SCREW, TRUSS (5X6) Price: $0.45 |
| 12 | 90301-K12-900 | NUT, PUSH (6MM) Price: $1.47 |
| 13 | 94101-06800 | WASHER, PLAIN (6MM) This part replaces 94101-06000. Price: $0.68 |
| 14 | 94251-05000 | PIN, LOCK (5MM) Price: $1.08 |
