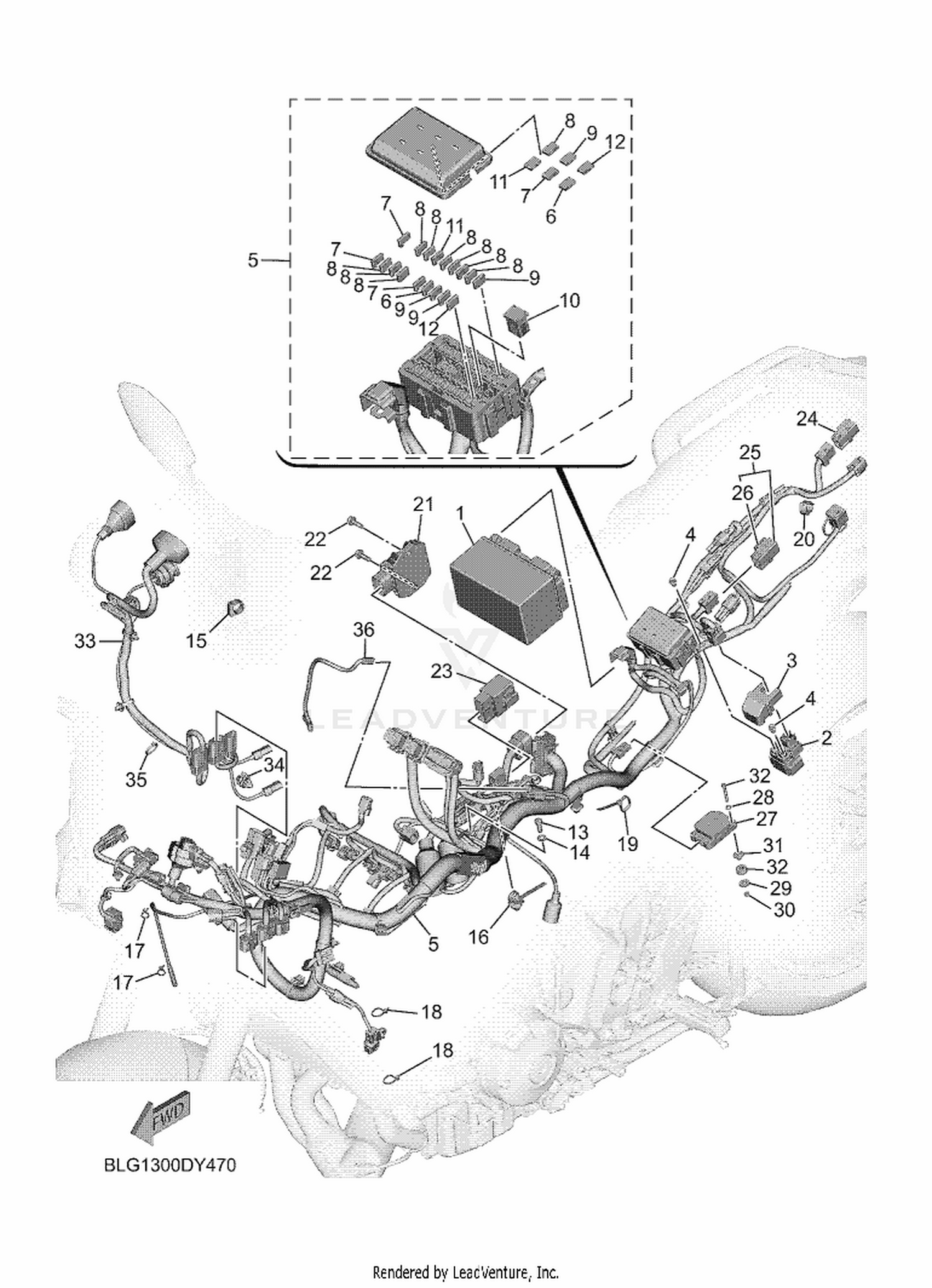

47 ELECTRICAL 1
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5VY-82100-01 | BATTERY ASSY (YUASA YTZ10S) Price: Call Us |
| 2 | B7N-81940-00 | STARTER RELAY ASSY Price: Call Us |
| 3 | 5SL-82119-30 | COVER, LEAD WIRE Price: Call Us |
| 4 | 90105-06230 | BOLT, FLANGE Price: Call Us |
| 5 | BLG-82590-00 | WIRE HARNESS ASSY Price: Call Us |
| 13 | 91317-06020 | BOLT Price: Call Us |
| 14 | 90201-060H9 | WASHER, PLATE Price: Call Us |
| 15 | 90464-16003 | CLAMP Price: Call Us |
| 16 | 90464-25009 | CLAMP Price: Call Us |
| 17 | 90465-10098 | CLAMP Price: Call Us |
| 18 | 90465-10098 | CLAMP Price: Call Us |
| 19 | 90464-99007 | CLAMP Price: Call Us |
| 20 | 90464-14010 | CLAMP Price: Call Us |
| 21 | 2CR-81960-00 | RECTIFIER REGULATOR ASSY Price: Call Us |
| 22 | 95D37-06020 | BOLT, FLANGE DEEP RECESS Price: Call Us |
| 23 | 5VK-81950-42 | RELAY ASSY Price: Call Us |
| 24 | 5UM-81950-E0 | RELAY ASSY Price: Call Us |
| 25 | 1ST-81950-00 | RELAY ASSY (1ST-00) Price: Call Us |
| 27 | BMR-8593A-00 | INERTIAL MEASURE, UNIT ASSY Price: Call Us |
| 29 | 90201-04034 | WASHER, PLATE Price: Call Us |
| 30 | 95607-04100 | NUT, U Price: Call Us |
| 31 | B7N-W8A8D-00 | GROMMET AND COLLAR SET Price: Call Us |
| 32 | 91317-04030 | BOLT,HEX.SOCKET HEAD Price: Call Us |
| 33 | BLG-82509-00 | WIRE, SUB LEAD Price: Call Us |
| 34 | 90464-10008 | CLAMP Price: Call Us |
| 35 | 90464-16061 | CLAMP Price: Call Us |
