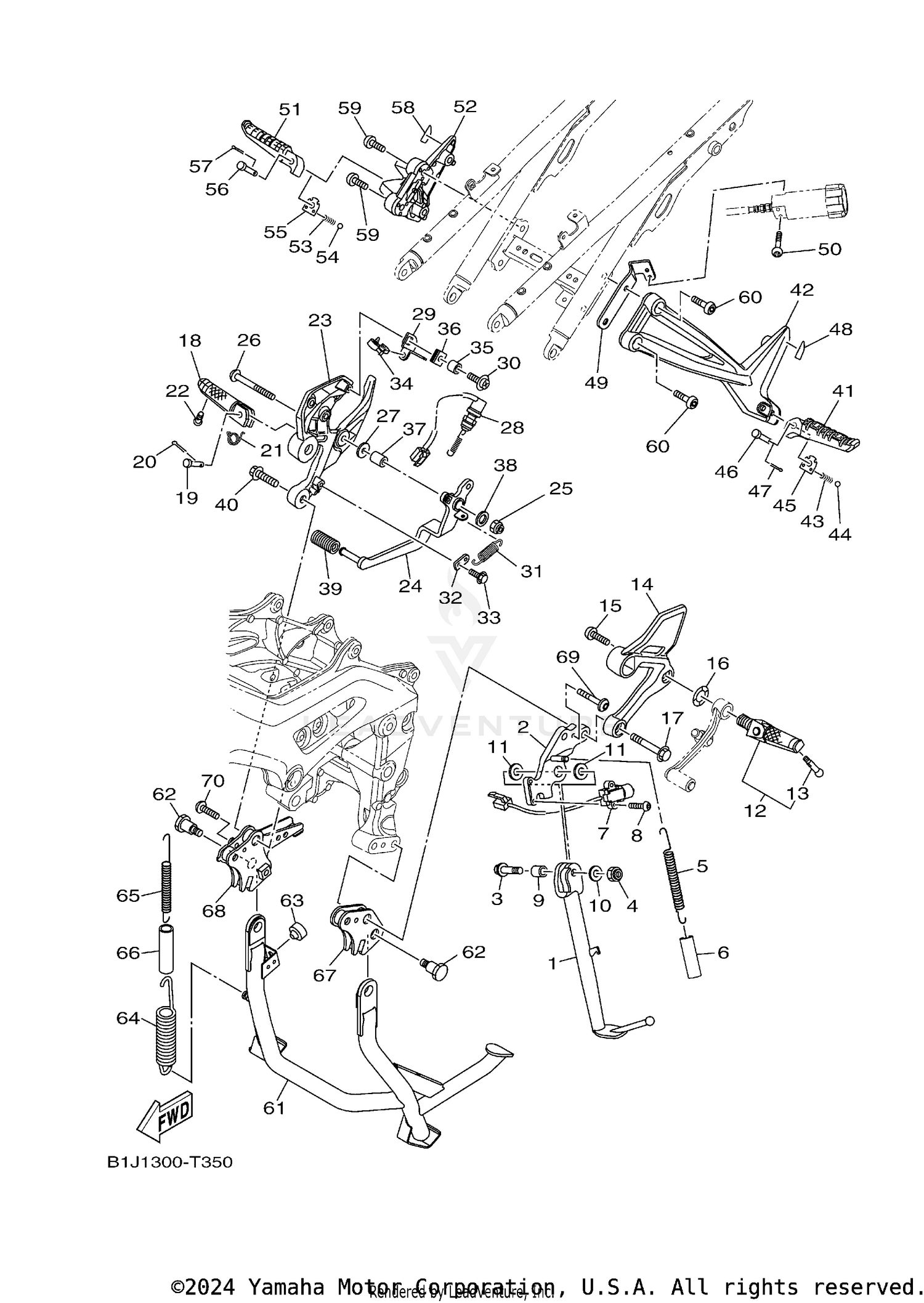

| Ref | Part Number | Description |
|---|
| 1 |
1RC-27311-00-00 |
STAND, SIDE Price: $106.99 |
| 2 |
1RC-27321-00-00 |
BRACKET, SIDE STAND Price: $88.99 |
| 3 |
90105-10188-00 |
BOLT, WASHER BASED Price: $14.49 |
| 4 |
95617-10100-00 |
NUT, U This part replaces 95612-10100-00. Price: $9.49 |
| 5 |
90506-20032-00 |
SPRING, TENSION Price: $16.49 |
| 6 |
90445-197J2-00 |
HOSE (L60) Price: $4.95 |
| 7 |
1RC-82566-51-00 |
SWITCH, SIDE STAND This part replaces 1RC-82566-50-00. Price: $73.99 |
| 8 |
92014-05020-00 |
BOLT, BUTTON HEAD This part replaces 90111-05036-00. Price: $9.49 |
| 9 |
90387-10050-00 |
COLLAR Price: $23.99 |
| 10 |
90201-10035-00 |
WASHER, PLATE Price: $4.50 |
| 11 |
90201-17018-00 |
WASHER, PLATE Price: $2.65 |
| 12 |
2PP-27410-00-00 |
FRONT FOOTREST ASSY (LEFT) Price: $75.99 |
| 13 |
90109-08235-00 |
BOLT This part replaces 90109-08233-00. Price: $8.49 |
| 14 |
1RC-27442-00-00 |
BRACKET 2 Price: $159.99 |
| 15 |
90111-10040-00 |
BOLT,HEX. SOCKET BUT This part replaces 90111-10039-00. Price: $5.49 |
| 16 |
90206-17084-00 |
WASHER, WAVE Price: $12.49 |
| 17 |
90105-10377-00 |
BOLT,WASHER BASED This part replaces 90105-10435-00. Price: $16.49 |
| 18 |
3XV-27461-02-00 |
FOOTREST Price: $31.99 |
| 19 |
91702-08040-00 |
PIN, CLEVIS This part replaces 91701-08040-00. Price: $4.85 |
| 20 |
91490-25020-00 |
PIN. COTTER This part replaces 91402-25015-00. Price: $3.45 |
| 21 |
90508-20572-00 |
SPRING, TORSION Price: $9.49 |
| 22 |
90109-08235-00 |
BOLT This part replaces 90109-08233-00. Price: $8.49 |
| 23 |
BS2-27443-00-00 |
BRACKET 3 Price: $96.99 |
| 24 |
2PP-27211-00-00 |
PEDAL, BRAKE Price: $98.99 |
| 25 |
90185-08089-00 |
NUT, SELF-LOCKING Price: $10.49 |
| 26 |
90111-08005-00 |
BOLT, HEX. SOCKET BUTTON Price: $5.99 |
| 27 |
90201-08103-00 |
WASHER, PLATE Price: $9.49 |
| 28 |
B1J-82530-01-00 |
STOP SWITCH ASSY This part replaces B1J-82530-00-00. Price: $58.99 |
| 29 |
1RC-2144G-00-00 |
STAY, STOP SWITCH Price: $7.49 |
| 30 |
90159-06082-00 |
SCREW, WITH WASHER This part replaces 90159-06150-00. Price: $10.49 |
| 31 |
90506-23008-00 |
SPRING, TENSION Price: $8.49 |
| 32 |
1RC-27432-00-00 |
BRACKET 1 Price: $2.50 |
| 33 |
95812-06010-00 |
BOLT, FLANGE This part replaces 95802-06010-00. Price: $3.20 |
| 34 |
90464-15157-00 |
CLAMP Price: $9.49 |
| 35 |
90387-06341-00 |
COLLAR Price: $10.49 |
| 36 |
90480-12607-00 |
GROMMET Price: $10.49 |
| 37 |
90387-08102-00 |
COLLAR Price: $9.49 |
| 38 |
90201-08048-00 |
WASHER, PLATE Price: $6.49 |
| 39 |
5EB-18113-00-00 |
COVER, SHIFT PEDAL Price: $8.99 |
| 40 |
90105-10252-00 |
BOLT, FLANGE This part replaces 90105-10246-00. Price: $6.49 |
| 41 |
B5C-27431-00-00 |
FOOTREST, REAR 1 Price: $17.49 |
| 42 |
B5C-2741L-00-00 |
BRACKET 4 Price: $100.99 |
| 43 |
90501-12743-00 |
SPRING, COMPRESSION Price: $5.49 |
| 44 |
93501-04011-00 |
BALL Price: $9.49 |
| 45 |
5VX-27437-00-00 |
WASHER, SPECIAL Price: $8.49 |
| 46 |
91702-08040-00 |
PIN, CLEVIS Price: $4.85 |
| 47 |
91490-25020-00 |
PIN. COTTER This part replaces 91401-25015-00. Price: $3.45 |
| 48 |
B5C-27498-00-00 |
SEAT 1 Price: $7.49 |
| 49 |
B1J-2115K-00-00 |
BRACKET, 1 Price: $15.49 |
| 50 |
90149-06033-00 |
SCREW This part replaces 90149-06031-00. Price: $9.49 |
| 51 |
B5C-27441-00-00 |
FOOTREST, REAR 2 Price: $17.49 |
| 52 |
B5C-2742L-00-00 |
BRACKET 5 Price: $101.99 |
| 53 |
90501-12743-00 |
SPRING, COMPRESSION Price: $5.49 |
| 54 |
93501-04011-00 |
BALL Price: $9.49 |
| 55 |
5VX-27437-00-00 |
WASHER, SPECIAL Price: $8.49 |
| 56 |
91702-08040-00 |
PIN, CLEVIS Price: $4.85 |
| 57 |
91490-25020-00 |
PIN. COTTER This part replaces 91401-25015-00. Price: $3.45 |
| 58 |
B5C-27499-00-00 |
SEAT 2 Price: $7.49 |
| 59 |
90111-08057-00 |
BOLT This part replaces 90111-08083-00. Price: $2.50 |
| 60 |
90110-08220-00 |
BOLT, HEXAGON SOCKET HEAD This part replaces 90111-08066-00. Price: $8.49 |
| 61 |
2PP-27111-00-00 |
STAND, MAIN Price: $217.99 |
| 62 |
90109-10029-00 |
BOLT This part replaces 90109-10060-00. Price: $10.49 |
| 63 |
36C-27114-00-00 |
STOPPER, MAIN STAND Price: $14.49 |
| 64 |
2PP-27116-00-00 |
SPRING, MAIN STAND Price: $17.99 |
| 65 |
2PP-27116-10-00 |
SPRING, MAIN STAND Price: $9.49 |
| 66 |
90445-19003-00 |
HOSE Price: $6.49 |
| 67 |
2PP-27151-00-00 |
BRACKET, MAIN STAND Price: $48.99 |
| 68 |
2PP-27152-00-00 |
BRACKET, MAIN STAND 2 Price: $70.99 |
| 69 |
92012-06040-00 |
BOLT, BUTTON HEAD Price: $4.70 |
