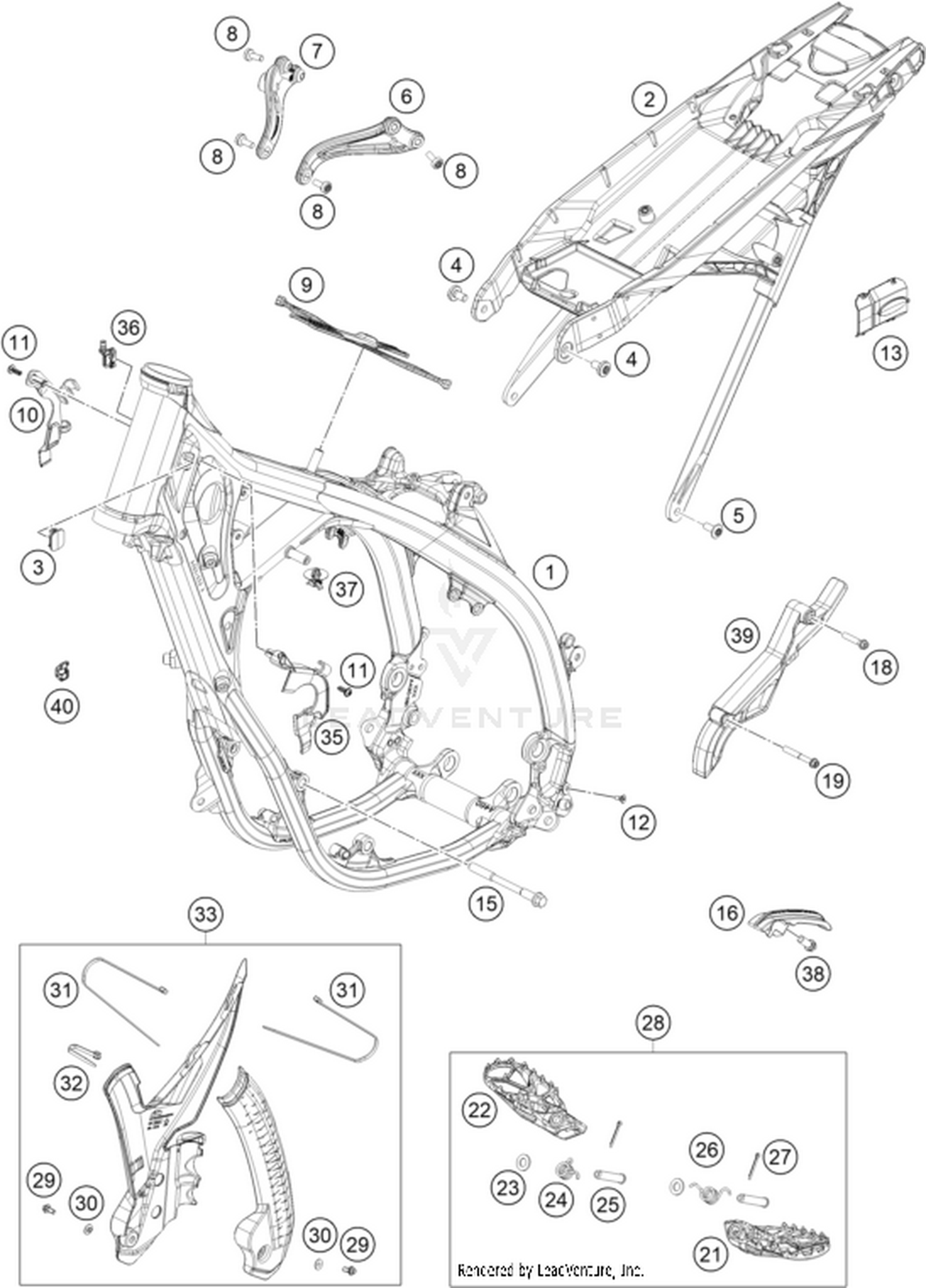

03 FRAME
Parts (33)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A45003001000C1 | Frame Price: Call Us |
| 2 | A46003002000 | Subframe Price: Call Us |
| 3 | 79111013010 | Cover control head sheet Price: Call Us |
| 4 | 09000008016U0 | Special screw M8x16 ISA45 self Price: Call Us |
| 5 | 79003003000 | Special screw M8X18 TORX45 SL Price: Call Us |
| 6 | A42003013000 | Engine brace left Price: Call Us |
| 7 | A42003014000 | Engine brace right Price: Call Us |
| 8 | 0035080206S | SHCS M8x20 TX45 Price: Call Us |
| 9 | A46007012100 | Fuel tank rubber Price: Call Us |
| 10 | A46003099020 | Cable bracket/throttle cable g Price: Call Us |
| 11 | 0081050141 | EJOT PT screw K50x14 Price: Call Us |
| 12 | 69013099050 | Screw for expansion tank Price: Call Us |
| 13 | A49003002050 | Intake air cover Price: Call Us |
| 15 | 59003013000 | Enginebrac. screw M10X123 WS=1 Price: Call Us |
| 16 | A46003053000 | Chain slider below Price: Call Us |
| 18 | 0025080206 | HH collar screw M8x20 Price: Call Us |
| 19 | 0025060456 | HH COLLAR SCREW M6X45 TX30 Price: Call Us |
| 21 | A46003140000 | Footpeg left Price: Call Us |
| 22 | A46003141000 | Footpeg right Price: Call Us |
| 24 | A46003045000 | Footrest spring right Price: Call Us |
| 25 | 54803044000 | PIN FOR FOOT PED 51.5X9.8 MM Price: Call Us |
| 26 | A46003044000 | Footrest spring left Price: Call Us |
| 27 | 0094032250 | PIN DIN 0094-3.2X25 NIRO This part replaces 0094032253. Price: Call Us |
| 28 | A46003137033 | Footpeg set Price: Call Us |
| 29 | 0025050106 | HH collar screw M5x10 TX30 Price: Call Us |
| 30 | 54803092060 | Bush f. frame protection 03 Price: Call Us |
| 31 | 44011076200 | CABLE TIE 200/3,6MM BLACK Price: Call Us |
| 32 | 44011076140 | CABLE TIE 140/2,5MM BLACK Price: Call Us |
| 33 | A46003094000C1 | Frame protection set Price: Call Us |
| 35 | A46003099010 | Cable bracket Price: Call Us |
| 37 | 79711013010 | Cable bracket d8 Price: Call Us |
| 38 | 0025080206 | HH collar screw M8x20 Price: Call Us |
| 39 | A44003096000 | Front sprocket cover Price: Call Us |
