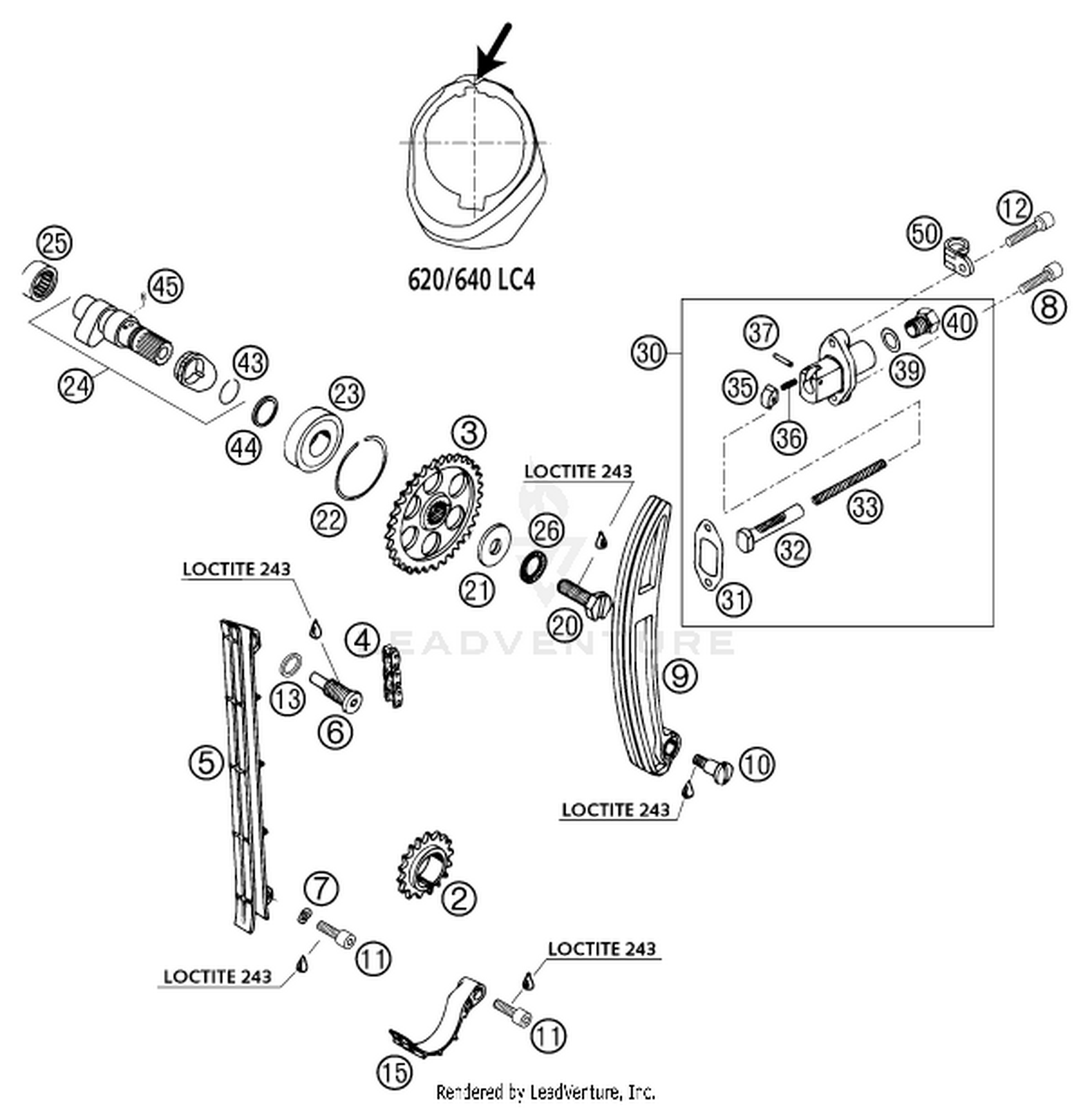

36 TIMING DRIVE
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 58036014000 | TIMING GEAR 17-T Not Available Price: |
| 6 | 58036009000 | CHAIN GUIDE SCREW Price: Call Us |
| 8 | 0912060253 | AH SCREW DIN0912-M 6X25 Price: Call Us |
| 10 | 0923080120 | FLAT HEAD SCR. M 8X12 Price: Call Us |
| 11 | 0912060208 | AH SCREW DIN0912-M 6X20 SS Price: Call Us |
| 12 | 0912060303 | AH SCREW DIN0912-M 6X30 Price: Call Us |
| 13 | 58038022100 | CU-SEAL RING 12 X 16 X 2 Price: Call Us |
| 15 | 58336018000 | SECURING GUIDE Price: Call Us |
| 20 | 58336112000 | DRIVING SCREW M10X25 Price: Call Us |
| 21 | 58036012000 | STEEL WASHER 10 X 28 X 3 Price: Call Us |
| 22 | 58036096000 | CIRCLIP SB 42 Price: Call Us |
| 23 | 0625060040 | GROOVED BALL BEARING TMB004 Price: Call Us |
| 24 | 58336110044 | CAMSHAFT CPL. 249/1 LC4-E Price: Call Us |
| 25 | 58036097000 | NEEDLE BEARING BK 2012 Price: Call Us |
| 26 | 36003014200 | LOCKING WASHER 10MM Price: Call Us |
| 30 | 58036003144 | AUTOM.TENSIONER CPL. '88 Price: Call Us |
| 31 | 58036005100 | TENSIONER GASKET 1,5 MM Price: Call Us |
| 32 | 58036004100 | PRESSURE BOLT Not Available Price: |
| 33 | 58036006100 | PRESSURE SPRING 0,9MM Price: Call Us |
| 35 | 58036007100 | RATCHETING PAWL Not Available Price: |
| 36 | 58036007050 | PRES.SPRING F.RATCHETING PAWL Not Available Price: |
| 37 | 0402031780 | Needle roll.DIN5402 NRB 3X17.8 Price: Call Us |
| 39 | 58038022000 | CU-seal ring DIN7603-12X18X1.5 Price: Call Us |
| 40 | 58036008100 | PLUG M12X1,5 Price: Call Us |
| 43 | 0417200120 | CIRCLIP WS20 Price: Call Us |
| 44 | 58336015000 | STEPPED RING Price: Call Us |
| 45 | 58336016052 | SPRING FOR AUTO-DECOMPR. '95 Price: Call Us |
