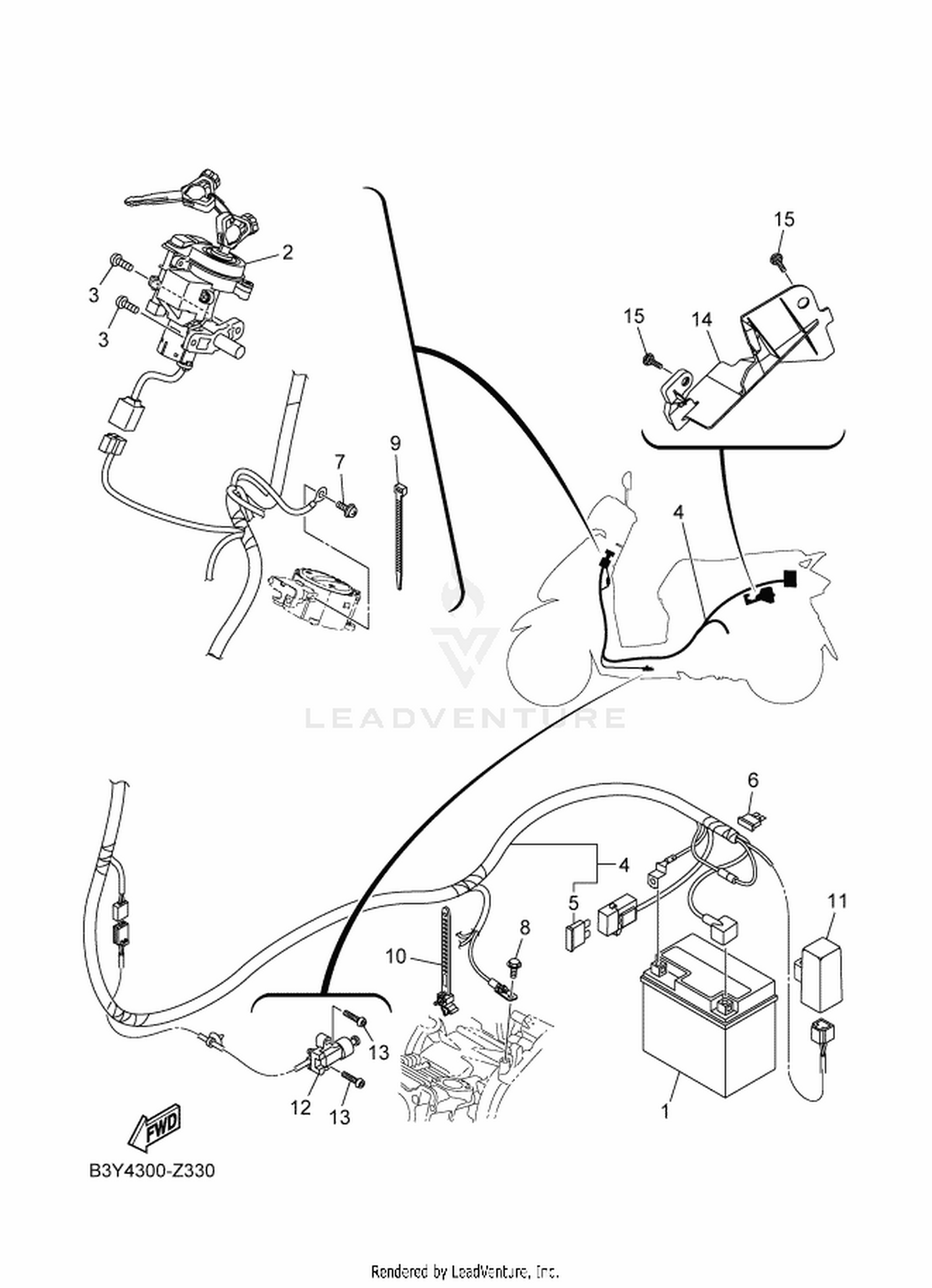

33 ELECTRICAL 1
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 1 | B63-H2100-02 | BATTERY ASSY (GS GTZ7V) Price: Call Us |
| 2 | B3Y-H252E-01 | MAIN SWITCH COMP. Price: Call Us |
| 3 | 90149-06309 | SCREW Price: Call Us |
| 4 | B3Y-H2590-00 | WIRE HARNESS ASSY Price: Call Us |
| 6 | 2TD-H2151-11 | FUSE Price: Call Us |
| 7 | 97602-05210 | SCREW, PAN HEAD WITH WASHER Price: Call Us |
| 8 | 95022-06012 | BOLT, FLANGE Price: Call Us |
| 9 | 90464-36800 | CLAMP Price: Call Us |
| 10 | 90464-12810 | CLAMP Price: Call Us |
| 11 | 5TN-H1940-01 | STARTER RELAY ASSY Price: Call Us |
| 12 | 2TD-H2566-00 | SWITCH, SIDE STAND Price: Call Us |
| 13 | 92012-05016 | BOLT, BUTTON HEAD Price: Call Us |
| 14 | 2TD-H2314-00 | COVER, IGNITION COIL Price: Call Us |
