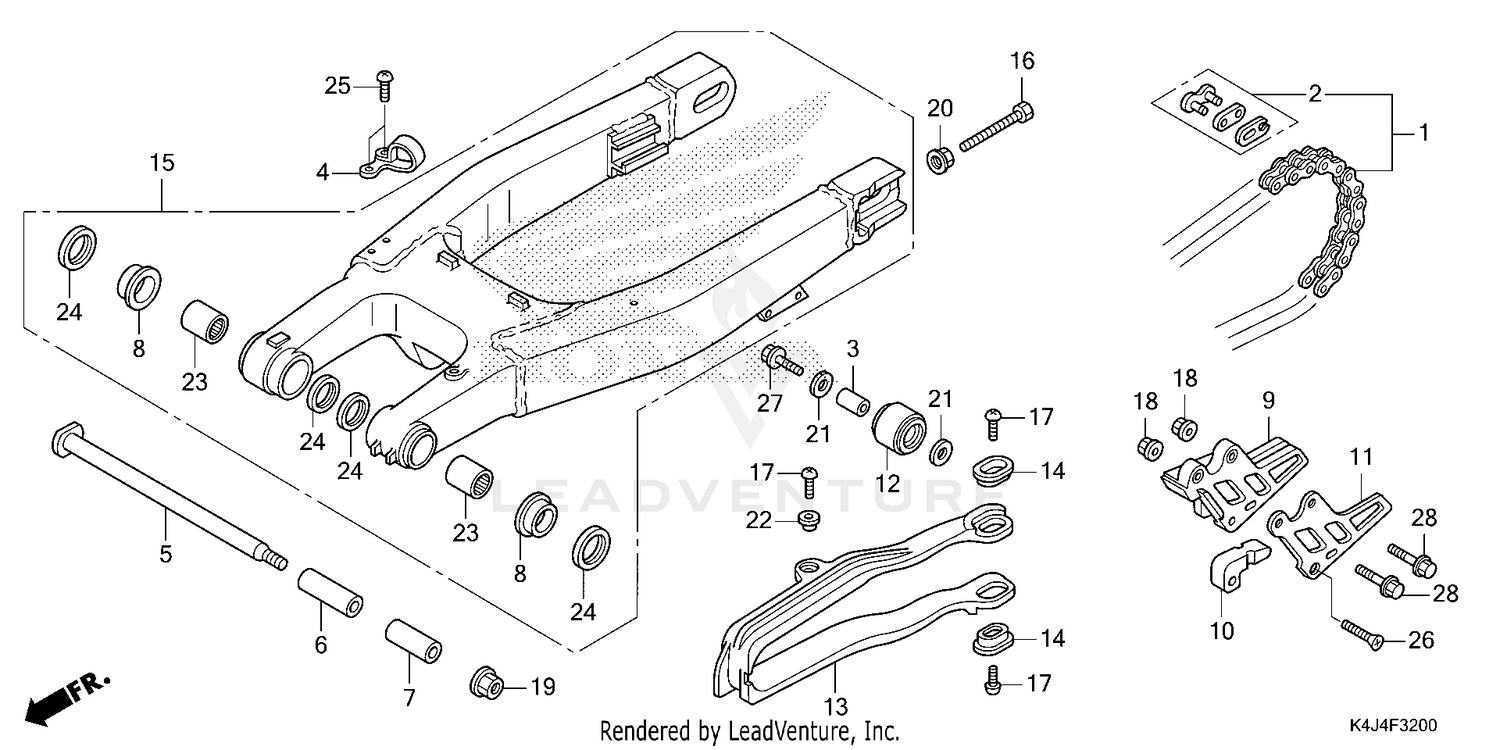

| Ref | Part Number | Description |
|---|
| 1 |
40530-KSE-671 |
CHAIN, DRIVE (DID420DS3-120RB) (STANDARD LINK 120L) Price: $96.55 |
| 2 |
40531-KSE-671 |
MASTER LINK Price: $8.85 |
| 3 |
43435-392-000 |
COLLAR, LINK Price: $7.42 |
| 4 |
43468-MEB-000 |
GUIDE, RR. BRAKE HOSE Price: $4.85 |
| 5 |
52101-KSE-000 |
SHAFT, SWINGARM PIVOT Price: $19.87 |
| 6 |
52141-GBF-J00 |
COLLAR, R. SWINGARM Price: $22.96 |
| 7 |
52142-GBF-J00 |
COLLAR, L. SWINGARM Price: $20.24 |
| 8 |
52143-GBF-J00 |
COLLAR, THRUST PIVOT Price: $8.78 |
| 9 |
52146-KSE-000 |
GUIDE, CHAIN Price: $36.18 |
| 10 |
52147-GM7-701 |
SLIDER, CHAIN GUIDE Price: $17.76 |
| 11 |
52147-KSE-000 |
PLATE, CHAIN GUIDE Price: $27.98 |
| 12 |
52158-GBF-830 |
ROLLER, CHAIN TENSIONER Price: $21.56 |
| 13 |
52170-KSE-N10 |
SLIDER, CHAIN Price: $45.09 |
| 14 |
52171-KR6-000 |
WASHER, CHAIN SLIDER Price: $2.95 |
| 15 |
52200-KSE-N10 |
SWINGARM SUB-ASSY., RR. Price: $826.40 |
| 16 |
90105-MEN-000 |
BOLT, HEX. (8X47.5) Price: $3.49 |
| 17 |
90115-KV3-700 |
SCREW, PAN (5X8) Price: $2.98 |
| 18 |
90301-473-003 |
NUT, U (6MM) NUT, FLANGE (6MM) Price: $5.11 |
| 19 |
90306-KF0-003 |
NUT, FLANGE (12MM) (FUSE RASHI) Price: $4.84 |
| 20 |
90309-357-000 |
NUT, HEX. (10MM) Price: $4.27 |
| 21 |
90485-KSE-000 |
WASHER (8MM) Price: $2.31 |
| 22 |
90520-134-000 |
WASHER, HEADLIGHT CASE SETTING Price: $3.04 |
| 23 |
91070-GC4-601 |
BEARING, NEEDLE (20X26X20) (TOYO) BEARING, SWINGARM PIVOT Price: $29.96 |
| 24 |
91254-KS6-003 |
DUST SEAL (20X26X4.5) (ARAI) Price: $11.15 |
| 25 |
93500-05008-0A |
BOLT, FLANGE (8X62) Price: $0.92 |
| 26 |
93600-06040-0A |
SCREW, FLAT (6X40) Price: $1.37 |
| 27 |
95701-08035-00 |
BOLT, FLANGE (8X35) Price: $2.40 |
