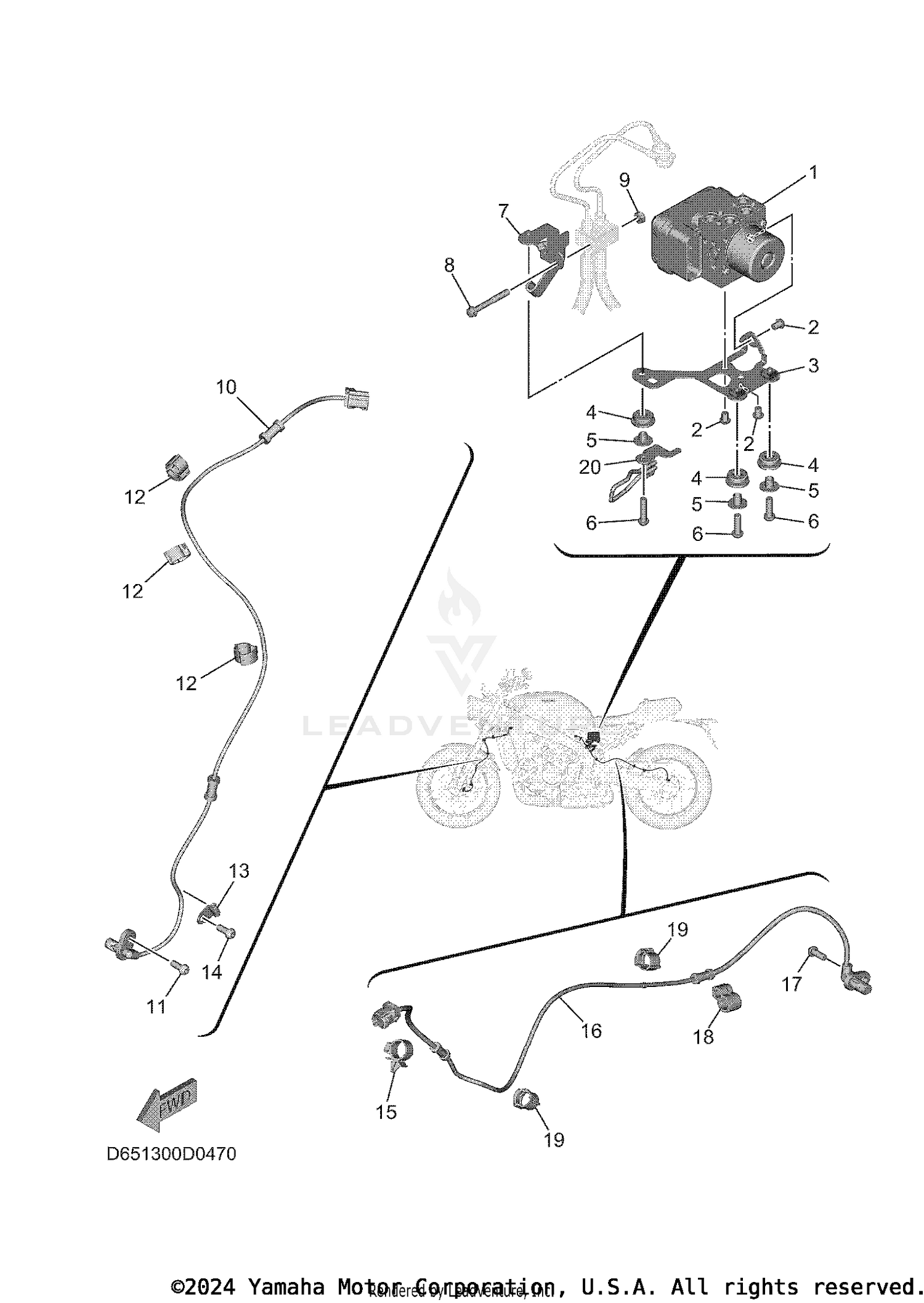

| Ref | Part Number | Description |
|---|
| 1 |
BME-85930-08-00 |
HYDRAULIC UNIT ASSY Price: $1,021.99 |
| 2 |
90111-06204-00 |
BOLT, HEXAGON SOCK Price: $1.55 |
| 3 |
BMG-85991-00-00 |
BRACKET, UNIT Price: $22.99 |
| 4 |
90480-13567-00 |
GROMMET Price: $5.49 |
| 5 |
90387-06160-00 |
COLLAR Price: $4.35 |
| 6 |
92012-06025-00 |
BOLT, BUTTON HEAD Price: $3.40 |
| 7 |
BMG-85542-00-00 |
BRACKET Price: $21.99 |
| 8 |
95027-06045-00 |
BOLT, FLANGE Price: $3.55 |
| 9 |
95617-06100-00 |
NUT, U This part replaces 95607-06100-00. Price: $2.90 |
| 10 |
BME-85970-00-00 |
WHEEL SENSOR ASSY, FRONT Price: $113.99 |
| 11 |
92017-06014-00 |
BOLT, BUTTON HEAD Price: $4.60 |
| 12 |
90464-14010-00 |
CLAMP Price: $3.65 |
| 13 |
2CR-23317-00-00 |
HOLDER, CABLE Price: $10.49 |
| 14 |
92017-06014-00 |
BOLT, BUTTON HEAD Price: $4.60 |
| 15 |
90464-16006-00 |
CLAMP Price: $10.49 |
| 16 |
BMG-85980-00-00 |
WHEEL SENSOR ASSY, REAR Price: $103.99 |
| 17 |
92014-06014-00 |
BOLT, BUTTON HEAD Price: $4.05 |
| 18 |
90464-10233-00 |
CLAMP Price: $8.49 |
| 19 |
90464-14010-00 |
CLAMP Price: $3.65 |
