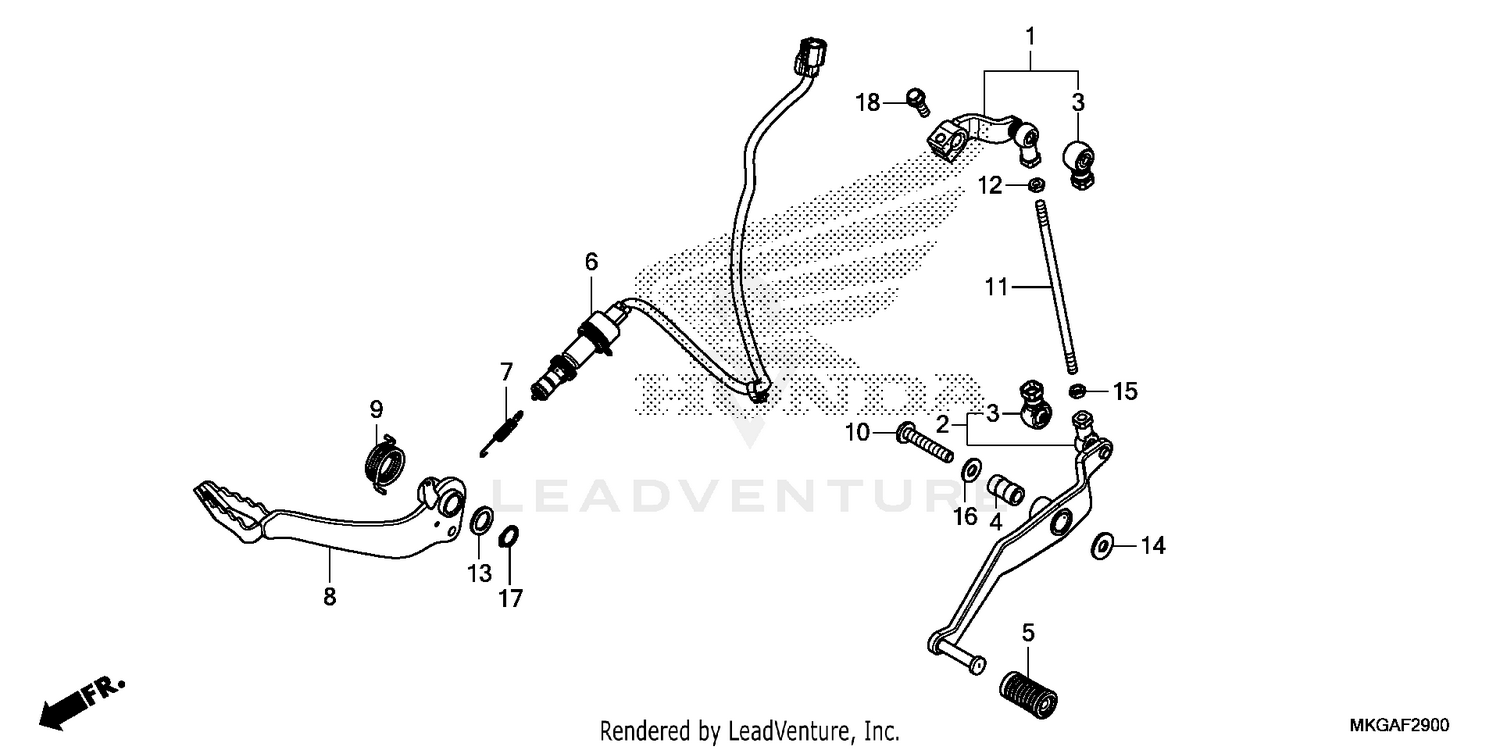

| Ref | Part Number | Description |
|---|
| 1 |
24710-MGZ-305 |
ARM, GEARSHIFT (COO) This part replaces 24710-MGZ-J00. Price: $20.51 |
| 2 |
24720-MKG-A00 |
PEDAL, GEARSHIFT Price: $55.02 |
| 3 |
24724-MBW-D21 |
COVER, DUST Price: $8.76 |
| 4 |
24731-K87-A00 |
COLLAR, GEARSHIFT PEDAL PIVOT Price: $3.84 |
| 5 |
24781-KR3-770 |
RUBBER, GEARSHIFT PEDAL Price: $4.25 |
| 6 |
35350-K87-A01 |
SWITCH ASSY., RR. STOP (TOYO DENSO) Price: $38.16 |
| 7 |
35357-K26-900 |
SPRING, STOP SWITCH Price: $0.93 |
| 8 |
46501-K87-A30 |
PEDAL, RR. BRAKE Price: $21.44 |
| 9 |
46514-K87-A00 |
SPRING, BRAKE PEDAL Price: $3.71 |
| 10 |
90110-K87-A00 |
BOLT, SOCKET SPECIAL (8X45) Price: $1.13 |
| 11 |
90165-MKG-A00 |
BOLT, TIE ROD Price: $6.25 |
| 12 |
90301-MGZ-J00 |
NUT, SPECIAL (6MM) (LEFT HAND THREAD) Price: $2.60 |
| 13 |
90451-GBL-870 |
WASHER (14MM) Price: $3.67 |
| 14 |
90526-K87-A00 |
WASHER (8.5X20) Price: $1.24 |
| 15 |
94001-06070-0S |
NUT, HEX. (6MM) Price: $1.37 |
| 16 |
94101-08000 |
WASHER, PLAIN (8MM) Price: $0.87 |
| 17 |
94511-14000 |
CIRCLIP (OUTER) (14MM) Price: $0.98 |
