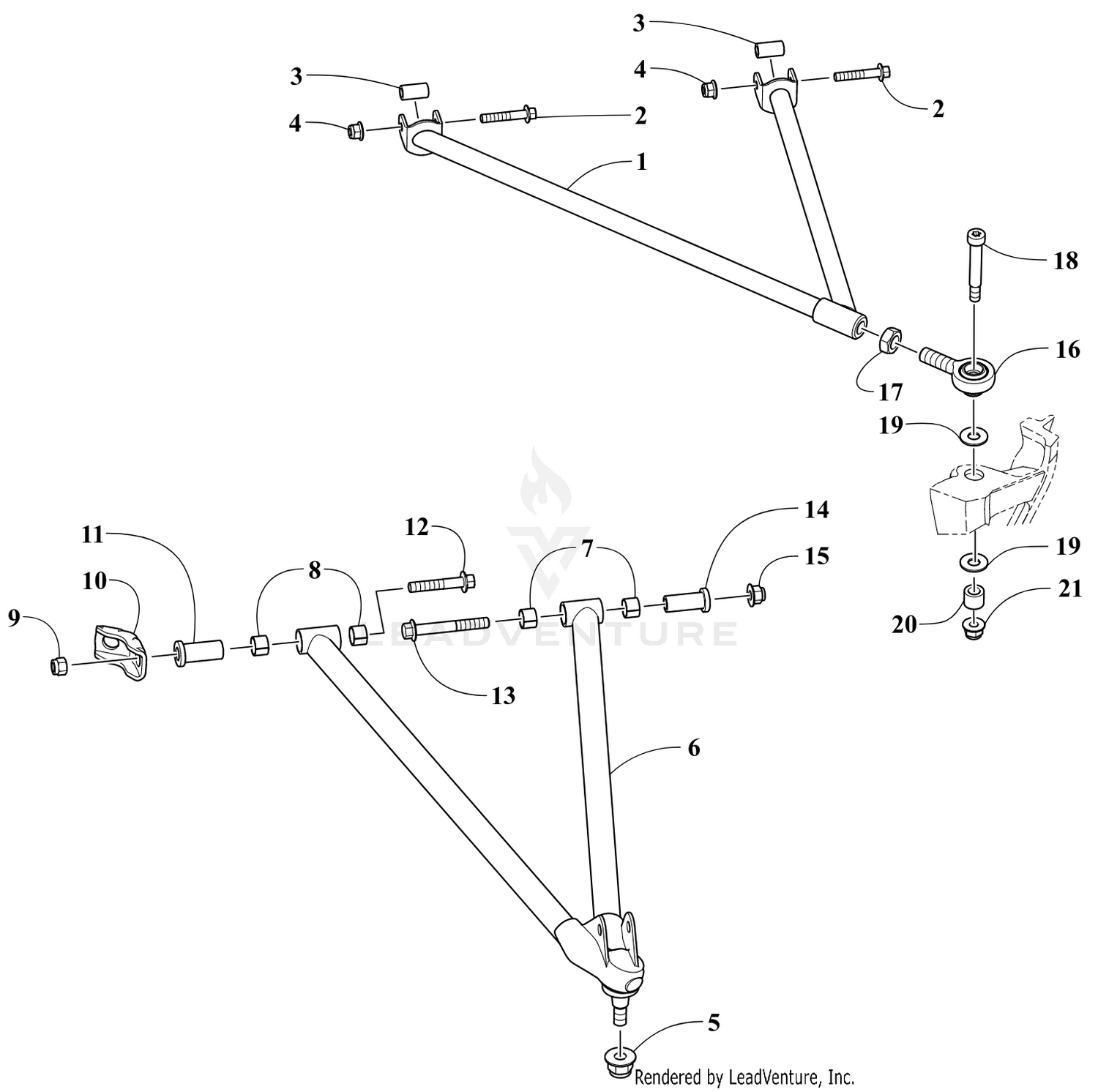

A-ARM ASSEMBLY [106227] — Parts Catalog

Ref	Part Number	Description
2	8413-645	Screw, Cap Price: $1.92
3	3603-258	Axle Price: $4.79
4	8437-604	Nut, Lock Price: $1.08
5	8427-202	Nut, Lock Price: $1.32
7	1603-895	Bearing Price: $2.79
8	2603-911	Bearing Price: $4.35
9	1623-965	Nut, Lock Price: $1.70
10	2603-909	Brace, Lower A-Arm - Front Price: $10.85
11	2603-916	Axle, Inner - Lower A-Arm - Front Price: $14.49
12	1623-953	Screw, Cap Price: $3.75
13	8415-075	Screw, Cap Price: $3.14
14	2603-543	Axle, Lower A-Arm - Rear Price: $4.23
15	8427-002	Nut, Lock Price: $1.08
16	1605-151	Bearing, End Price: $35.95
17	8420-202	Nut, Lock Price: $1.32
18	2623-067	Screw, Shoulder Price: $3.38
19	0623-044	Washer Price: $2.59
20	2602-707	Spacer Price: $10.85
