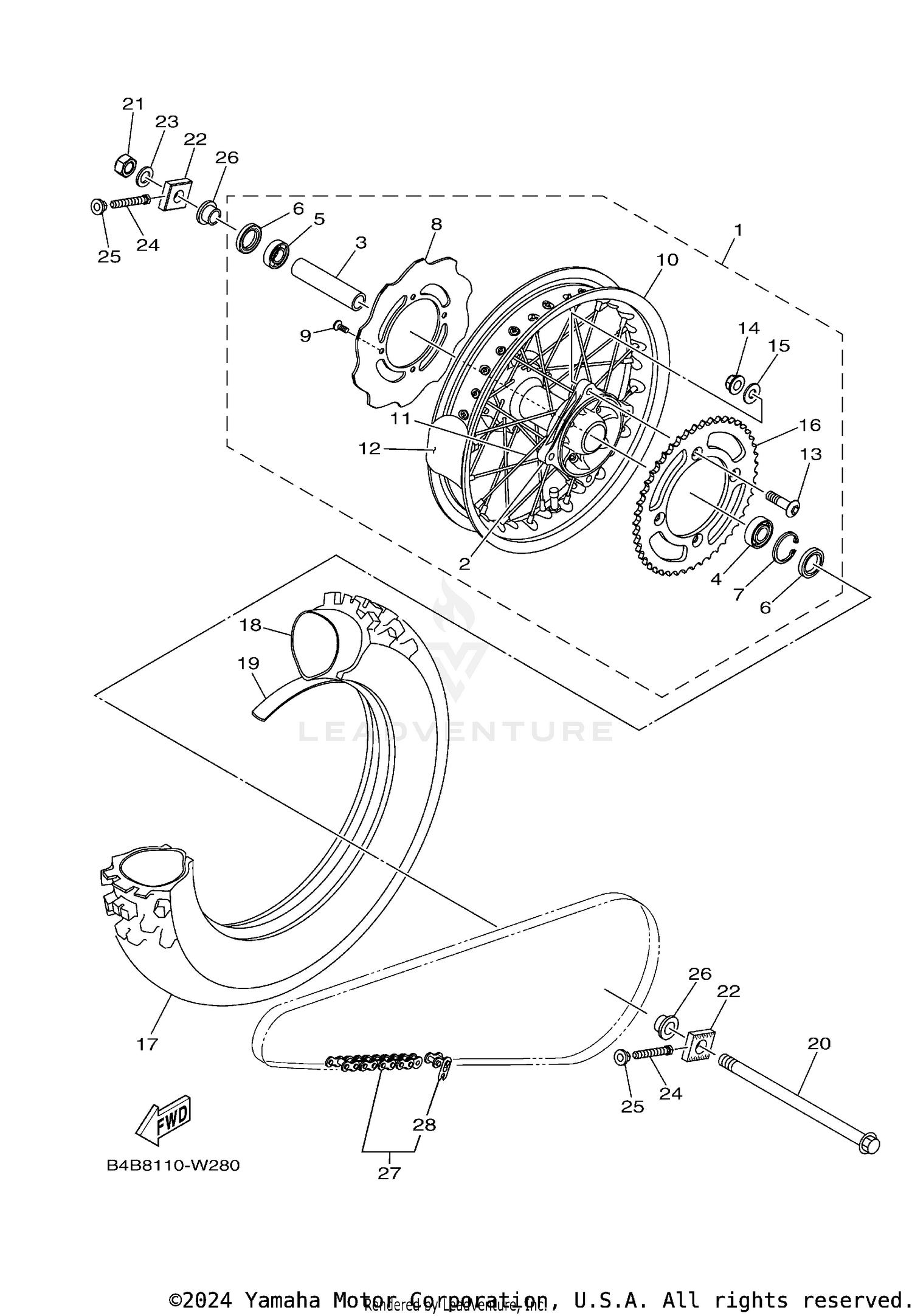

| Ref | Part Number | Description |
|---|
| 1 |
B4B-25302-00-00 |
REAR WHEEL ASSY BLUE Price: $429.99 |
| 2 |
4ES-25311-00-00 |
HUB, REAR Price: $327.99 |
| 3 |
4ES-25383-00-00 |
COLLAR, WHEEL Price: $30.99 |
| 4 |
93306-00201-00 |
BEARING This part replaces 93306-00203-00. Price: $41.99 |
| 5 |
93306-20203-00 |
BEARING Price: $26.99 |
| 6 |
93102-20009-00 |
OIL SEAL Price: $11.49 |
| 7 |
99009-35500-00 |
CIRCLIP Price: $9.49 |
| 8 |
B4B-2582W-01-00 |
DISK, REAR BRAKE 2 Price: $112.99 |
| 9 |
90151-06079-00 |
SCREW, COUNTERSUNK This part replaces 90151-06051-00. Price: $3.45 |
| 10 |
94416-14006-00 |
RIM (1.60-14) Price: $286.99 |
| 11 |
4ES-25304-20-00 |
SPOKE SET, REAR Price: $100.99 |
| 12 |
5X2-25394-00-00 |
SPACER, BEAD Price: $43.99 |
| 13 |
90152-08001-00 |
SCREW, COUNTERSUNK Price: $3.85 |
| 14 |
90185-08008-00 |
NUT, SELF-LOCKING Price: $8.49 |
| 15 |
90201-08043-00 |
WASHER, PLATE Price: $8.49 |
| 20 |
B4B-25381-00-00 |
AXLE, WHEEL Price: $46.99 |
| 21 |
90185-14009-00 |
NUT, SELF-LOCKING (M14) Price: $10.49 |
| 22 |
BR8-25389-00-00 |
PULLER, CHAIN 2 Price: $25.99 |
| 23 |
90201-14411-00 |
WASHER, PLATE Price: $9.49 |
| 24 |
90101-08006-00 |
BOLT Price: $9.49 |
| 25 |
90179-08029-00 |
NUT Price: $17.49 |
| 26 |
BR8-25383-00-00 |
COLLAR, WHEEL Price: $28.99 |
| 27 |
9Y582-43117-00 |
CHAIN (DID 428DS 118LL) Price: $141.99 |
