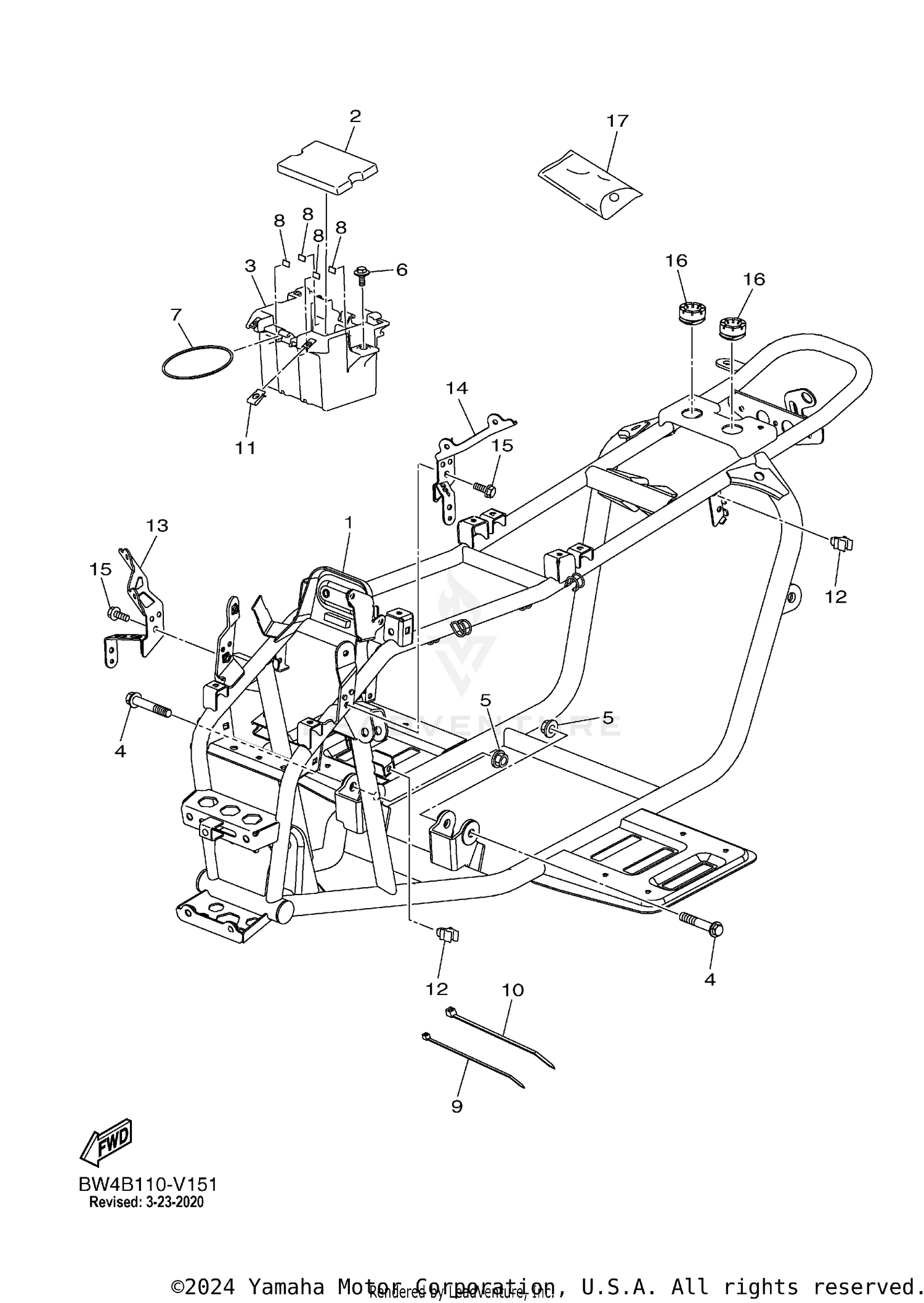

FRAME
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 1 | BW4-F1110-20-00 | FRAME COMP. Price: $914.99 |
| 2 | BW4-H2122-00-00 | SEAT, BATTERY Price: $48.99 |
| 3 | BW4-H212B-00-00 | BOX, BATTERY 1 Price: $69.99 |
| 4 | BW4-F6332-00-00 | BOLT Price: $15.49 |
| 5 | BD3-F1839-10-00 | NUT Price: $6.49 |
| 6 | BD3-F1632-10-00 | BOLT 2 Price: $3.90 |
| 7 | BD3-F4398-00-00 | BAND 1 Price: $10.49 |
| 8 | BW4-F1639-00-00 | DAMPER 2 Price: $2.50 |
| 9 | BD3-F1646-00-00 | BAND Price: $1.85 |
| 10 | BW4-F1647-00-00 | BAND Price: $2.70 |
| 11 | BW4-F1536-00-00 | NUT 2 Price: $5.49 |
| 12 | BD3-F15A3-00-00 | CLAMP Price: $4.25 |
| 13 | BW4-H4119-10-00 | STAY, HEADLIGHT 2 Price: $60.99 |
| 14 | BW4-H4118-10-00 | STAY, HEADLIGHT 1 Price: $49.99 |
| 15 | BD3-H1452-10-00 | BOLT Price: $2.95 |
| 16 | BD3-F113B-00-00 | DAMPER Price: $9.49 |
